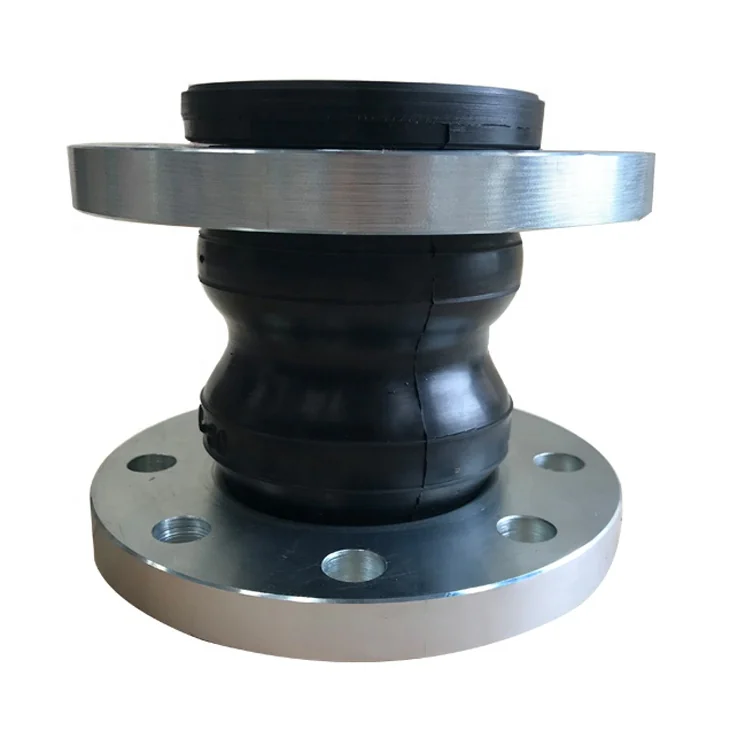

Bellow Double Sphere Flexible Connector Coupling EPDM Rubber Expansion Joint With Flange
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
warranty1yearcustomized supportOEM, ODM
-
model numberN-RJTechnicForged
-
ConnectivityFlangeshapeEqual
-
head codeRoundOverall LengthAccording to pipeline requirements
-
HeightAccording to pipeline requirementsSurface TreatmentCleaning Supplies
-
PressureAccording to pipeline requirementsSystem of Measurementinch
-
Mounting hole diameterAccording to pipeline requirementsPipe FeaturesCorrosion-resistant, Flexible, Chemical Resistant
-
Pipe ClassNot RatedApplicationwater supply and drainage systems
-
Product nameFlexible Connector Coupling EPDM Rubber Expansion Joint With FlangeWorking Pressure6-40bars(PN6-PN40)
-
Working Temperature-15℃-80℃(-30℃-150℃)Test pressure1.5 times of working pressure
-
Explosion pressure2 times of working pressureApplicable mediaAir,water,sewage,acid,oil,etc.
-
Nominal diameterDN40-DN1200Flange materialCarbon steel galvanized,Stainless steel etc.
-
Rubber materialNR,EPDM,NBR etc.Flange StandardDIN,ANSI,JIS etc.
