Tube Balls Union Type Connected Flexible Rubber Threaded Expansion Joint
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
warranty1 yearcustomized supportOEM, ODM
-
model numberN-RJTechnicForged
-
ConnectivityFlangeshapeEqual
-
head codeRoundOverall LengthAccording to requirements
-
HeightAccording to requirementsSurface TreatmentAccording to requirements
-
Mounting hole diameterAccording to requirementsPipe ClassAccording to requirements
-

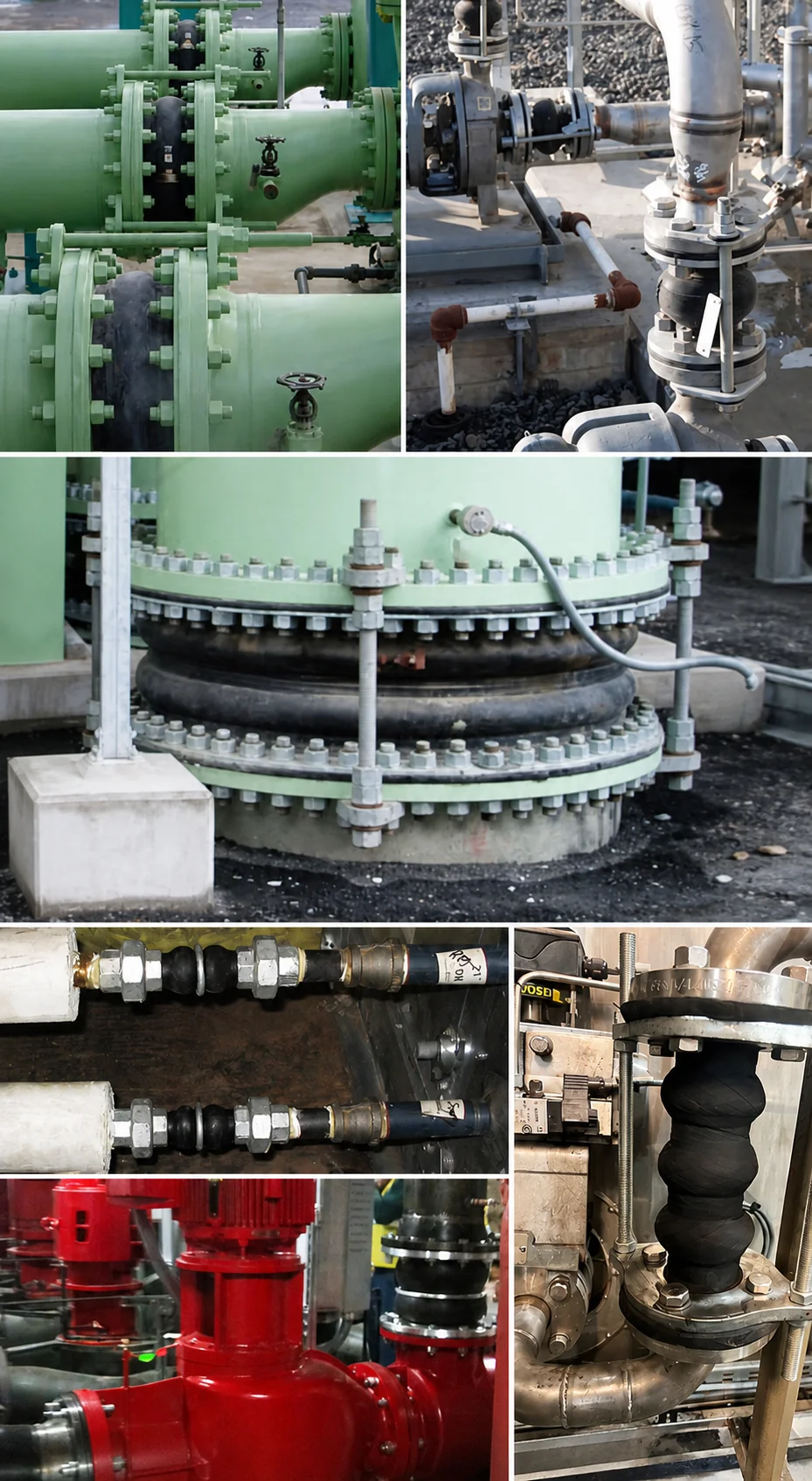

Applicationwater supply and drainage systemsProduct nameConnected Flexible Rubber Threaded Expansion Joint in Pipe Fittings
-
Working Pressure16bars(PN16)Working Temperature-15℃-80℃(-30℃-150℃)
-
Test pressure1.5 times of working pressureExplosion pressure2 times of working pressure
-
Applicable mediaAir,water,sewage,acid,oil,etc.Nominal diameterDN15-DN80
-
Flange materialCarbon steel galvanized,Stainless steel etc.Rubber materialNR,EPDM,NBR etc.
-
Flange StandardDIN,ANSI,JIS etc.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
All technical resourcesChoose the product-family route that matches your question.
Drawings and tolerancesOrganize dimensions, units, datums and critical features.
Inspection recordsPlan what must be checked and how results can be recorded.
Supplier evaluationReview capability, communication, traceability and repeatability.
RFQ to deliveryFollow the requirement through quotation, sample and order planning.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
