2-Inch NPT Threaded A105 N Coupling to B16.11 Dimensions, Galvanized Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
model numberForged CouplingTechnicForged
-
ConnectivityFemaleshapeEqual
-
head codeRoundOverall Length4 in
-
Height2Surface TreatmentPainting
-
PressureLow PressureSystem of Measurementinch
-
Mounting hole diameter0.2 inPipe FeaturesFlexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features, underground rated
-
Pipe Class150
This 2-inch NPT galvanized coupling enquiry includes A105 N material and B16.11 dimensional references. The actual choice is Coupling / 14 mm / Carbon Steel. Define the supplied component and obtain its accepted drawing and documents before relying on the product name for size, grade or finish.
Match the coupling to both pipe ends
Establish the required nominal size and identify what the 14 mm label measures. Show both ends, bore, wall, overall dimensions and tolerances. The 4 in overall-length entry is a separate measurement; unitless height 2 and the 0.2-inch mounting-hole value cannot establish the nominal pipe size or supply missing units.

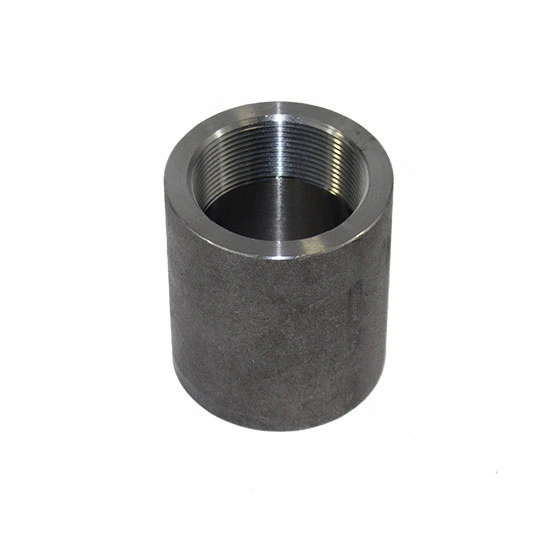

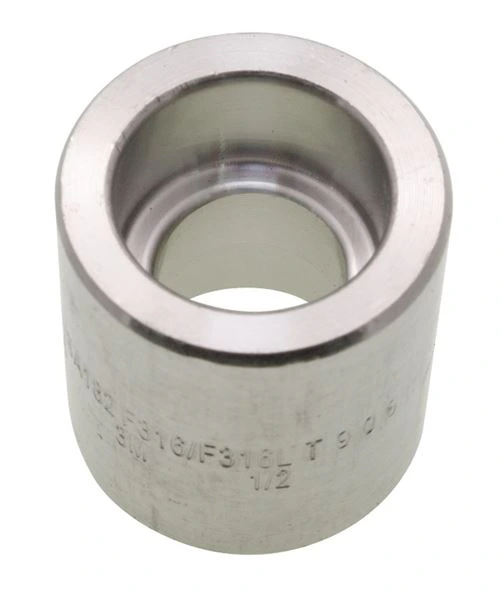

Confirm the female/NPT thread designation, end locations, mating interface and inspection requirements. One reference shows internal threads, while another shows a stepped smooth bore. They cannot establish one supplied configuration. Agree the actual end arrangement on the drawing rather than inferring it from a representative image.
Specify material condition and coating
Connect the A105 N reference to the selected material designation, edition, grade, product condition and traceable inspection records. Do not infer accepted heat treatment from the name alone. Identify applicable B16.11 dimensional requirements and request evidence of conformity, together with the relevant forged-production records.
Define the galvanized finish and any painting scope explicitly, including functional-surface treatment and required acceptance evidence. Silver appearance does not certify coating type or thickness. Finish naming cannot establish corrosion performance for an unspecified medium or environment.
Confirm service and installation conditions
Provide the application, fluid, pressure, temperature, cycling, exposure and imposed loads. Class 150 and low-pressure wording need a governing material-temperature basis. Flexibility, chemical/UV resistance and underground-rated labels require project-specific acceptance rather than assumed approval. Agree installation, inspection, requested OEM, ODM or OBM scope, and the stated one-year warranty terms with the quotation.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
