SS/Carbon Steel Hex-Head Bushing DN30, A234 304/316 Fitting Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.25 in
-
Pipe Class125SizeCustomized Size
-
Product nameElbow
This hex-head bushing enquiry includes DN30, A234 and 304/316 references that need a selected purchase specification. Actual choices also include Cap and Plug. Choose the component's function first, then define its material and matching interfaces before ordering a complete configuration.
Choose the function and actual variant
All 45 actual variants cover Bushing, Cap and Plug types, each with 10 mm, 12 mm, 14 mm, 50 mm and 30 mm labels in Stainless Steel, Alloy or Carbon Steel. Select one combination. DN30 requires an accepted nominal meaning and cannot automatically be treated as a measured 30 mm dimension.
Confirm the material designation, edition, grade, product condition and inspection traceability. Assign A234 and 304/316 references to the intended component and material; they do not certify every alternative. Customized dimensions require an approved drawing and tolerances.
Define the two interfaces or closure

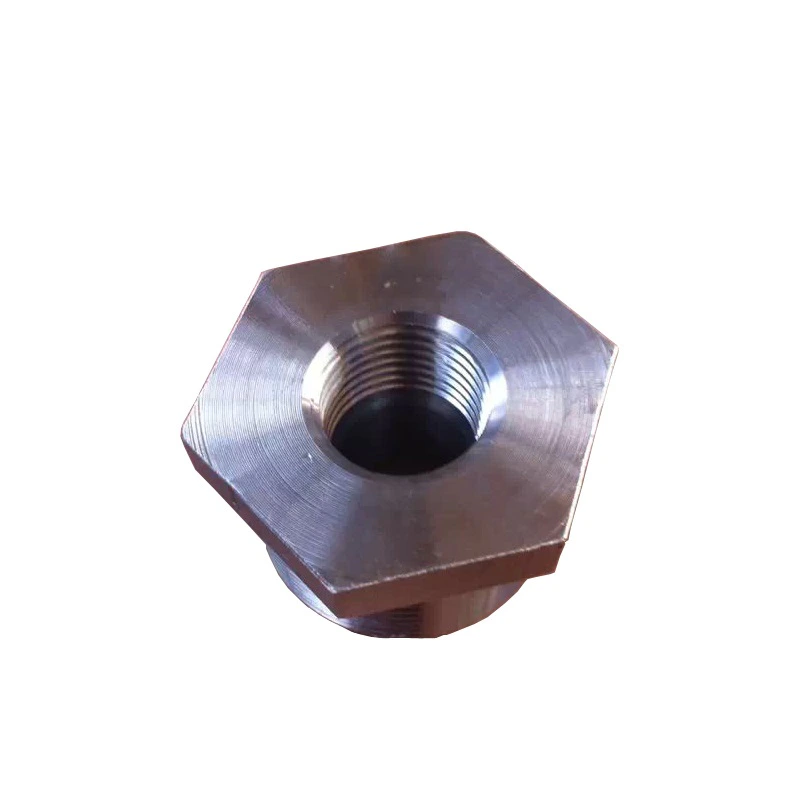

For a bushing, show both interfaces, internal and external end dimensions, connection designation, bore, wall, engagement and wrench clearance. The reference image shows a hexagonal component with visible internal threads and an apparent external threaded portion, but cannot establish the supplied thread standard, reduction or size.
A Cap or Plug choice needs its own closure function and mating-interface specification. Do not assume the bushing image establishes those constructions or pressure-barrier capability. Confirm any welding requirement and the accepted size relationship for the selected type. The 0.25-inch mounting-hole entry cannot define a thread or nominal size.
Agree production and service acceptance
Request applicable forged-production and inspection evidence. Define painting scope and functional-surface exclusions without inferring coating performance. Class 125 needs its governing standard and material-temperature basis. Supply the medium, pressure, temperature, cycling and installation loads, then agree sealing, installation, inspection, requested OEM, ODM or OBM work, drawing approval and the stated one-year warranty terms.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
