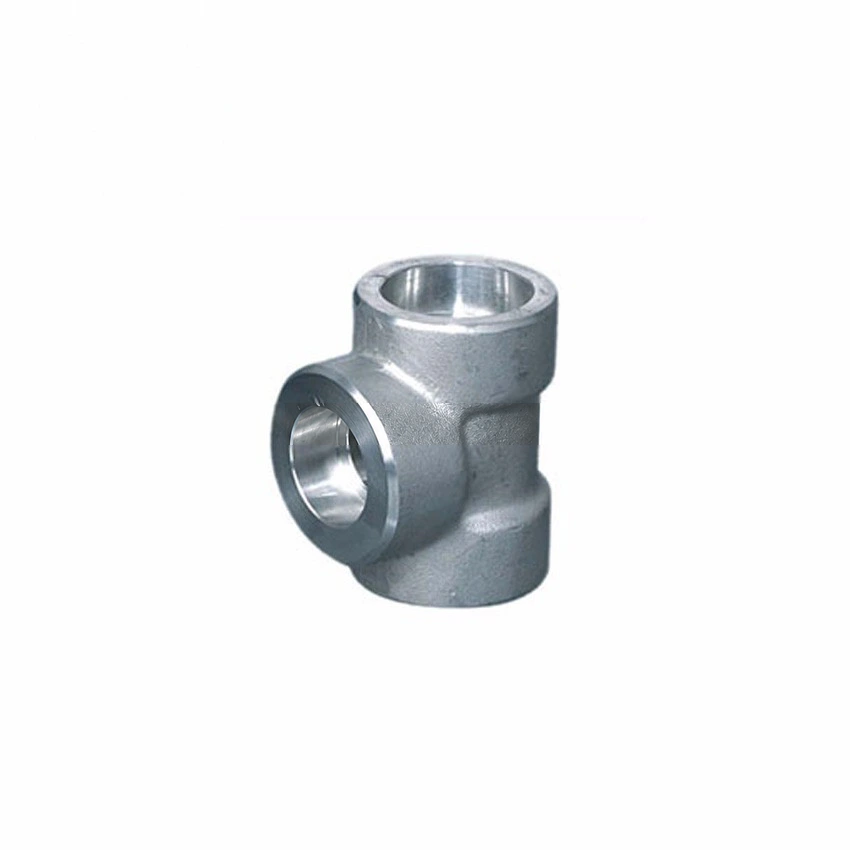

Socket-Weld Reducing Tee DN25 by DN15 Specification Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM
-
model numberSockoletTechnicseamless
-
ConnectivitybwshapeT
-
head codeRoundOverall Length4 in
-
Height4Surface TreatmentPainting
-
PressureLow PressureSystem of Measurementinch
-
Mounting hole diameter0.25 inPipe FeaturesFlexible
-
Pipe Class3000ApplicationAgricultural Irrigation, Automotive Repair, Heating Systems, Power Industry, Construction Engineering, Shipbuilding, petrochemical industry
-
Thread TypesNPT
A socket-weld reducing tee request should identify the component form before its dimensions are accepted. For a DN25 by DN15 requirement, confirm whether the supplied component is a three-ended tee body or a separate branch outlet, then define the run and branch interfaces.
Establish the reducing tee body and its connections
Show the requested fitting on an assembly drawing, identifying each pipe connection and the role of the branch. A tee body and a separate outlet require different attachment details, so the exact form should remain explicit throughout the enquiry. Stainless Steel and Carbon Steel are actual material choices, but selecting a family does not by itself define the fitting body or connection arrangement.
Assign DN25 and DN15 to the run and branch
State which nominal size belongs to the run and which belongs to the branch, with the actual pipe dimensions and wall requirements included. Specify the socket geometry where a socket-weld connection is required. Any butt-weld or thread requirement should be assigned to the appropriate interface and confirmed separately. A single millimetre size choice cannot establish the complete nominal-size pair or every end connection needed for the reducing arrangement.
Confirm A105 and class for the selected configuration
If the intended carbon steel fitting requires A105, state that grade requirement explicitly and obtain confirmation for the selected form. Identify the applicable fitting standard and class, then provide the medium and design pressure and temperature for the rating review. Class 3000 is not a direct working-pressure value. The final reducing-tee enquiry should link the confirmed body form, all connection details and run/branch dimensions to the same material and service requirements.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
