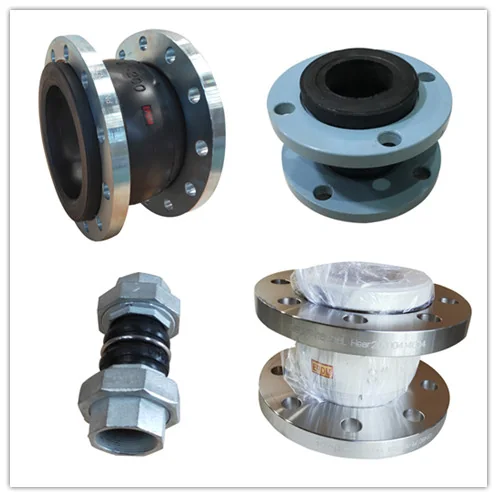

Manufacturer Flange Type Bellows High Quality Pressure Resistance PTFE Rubber Expansion Joint
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
warranty1 yearscustomized supportOEM, ODM
-
model numberN-RJTechnicVulcanization
-
ConnectivityFlangeshapeEqual
-
head codeRoundOverall LengthAccording to requirements
-
HeightAccording to requirementsSurface TreatmentCleaning Supplies
-
PressureHigh PressureSystem of MeasurementAccording to requirements
-
Mounting hole diameterAccording to requirementsPipe ClassNot Rated
-
Applicationwater supply and drainage systemsThread TypesAccording to requirements
-
Product nameBellows High Quality Pressure Resistance PTFE Rubber Expansion JointWorking Pressure6-40bars(PN6-PN40)
-
Working Temperature-15℃-80℃(Special -30℃-150℃)Test pressure1.5 times of working pressure
-
Explosion pressure2 times of working pressureApplicable mediaAir,water,sewage,acid,oil,etc.
-
Nominal diameterDN25-DN3000Flange materialCarbon steel galvanized,Stainless steel etc.
-
Rubber materialNR,EPDM,NBR etc.Flange StandardDIN,ANSI,JIS etc.
