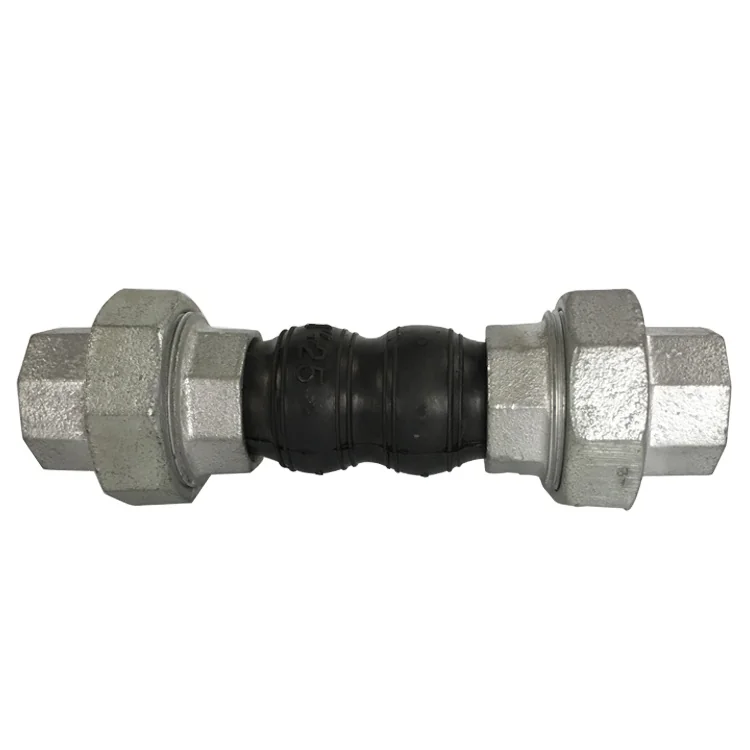

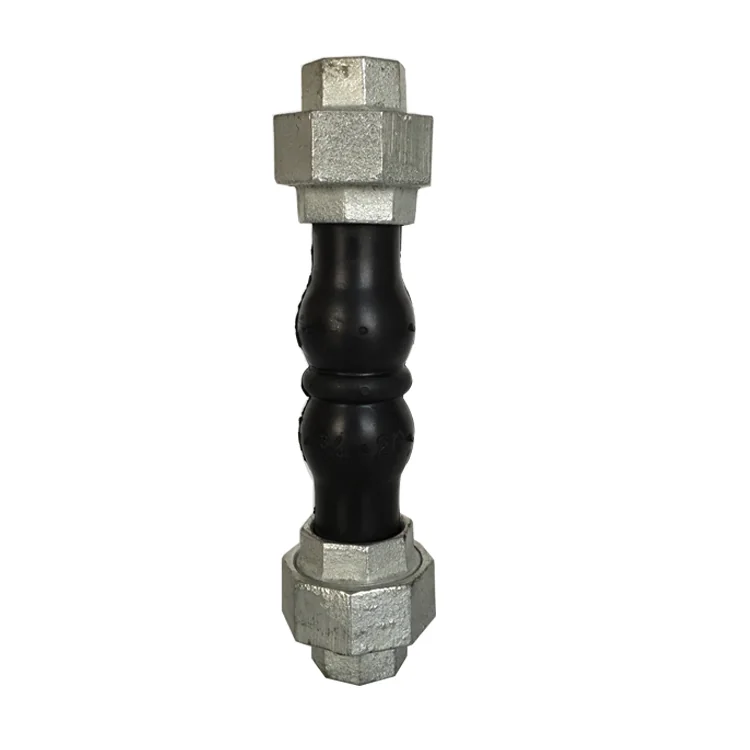

Threaded Union Rubber Flexible Expansion Joint Connector
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
model numberUnionTechnicForged
-
ConnectivityUnionshapeEqual
-
head codeRound and hexagonOverall LengthAccording to requirements
-
HeightAccording to requirementsSurface TreatmentCleaning Supplies
-
PressureHigh PressureSystem of MeasurementAccording to requirements
-
Mounting hole diameterAccording to requirementsPipe FeaturesFlexible
-
Pipe ClassNot RatedApplicationwater supply and drainage systems
-
Thread TypesNPTMaterial of rubberEPDM,NR,NBR,Neoprene etc
-
SizeDN15~DN80Length200~270mm
-
Working pressure1.6 MpaTest pressure2.5 Mpa
-
Explosion pressure3.0 MpaApplicable mediawater,air,oil,acid,alkali and other chemicals
-
Applicable temperature-15 ~ +115 ℃(Special can reach -30~+250℃)CertificateISO9001:2008
-
Product nameThreaded union rubber flexible expansion joint connector
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
All technical resourcesChoose the product-family route that matches your question.
Drawings and tolerancesOrganize dimensions, units, datums and critical features.
Inspection recordsPlan what must be checked and how results can be recorded.
Supplier evaluationReview capability, communication, traceability and repeatability.
RFQ to deliveryFollow the requirement through quotation, sample and order planning.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
