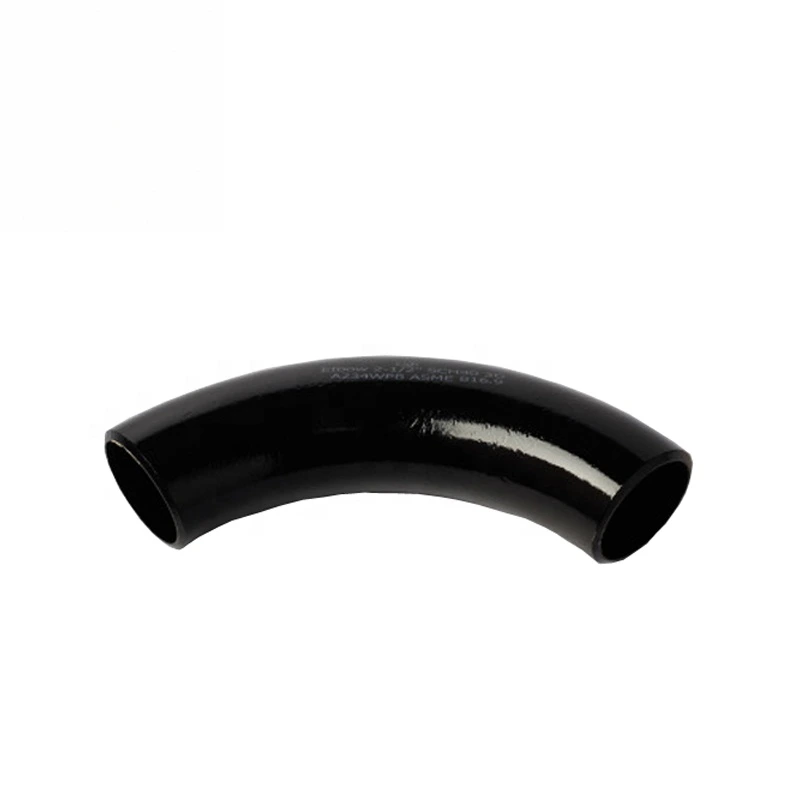

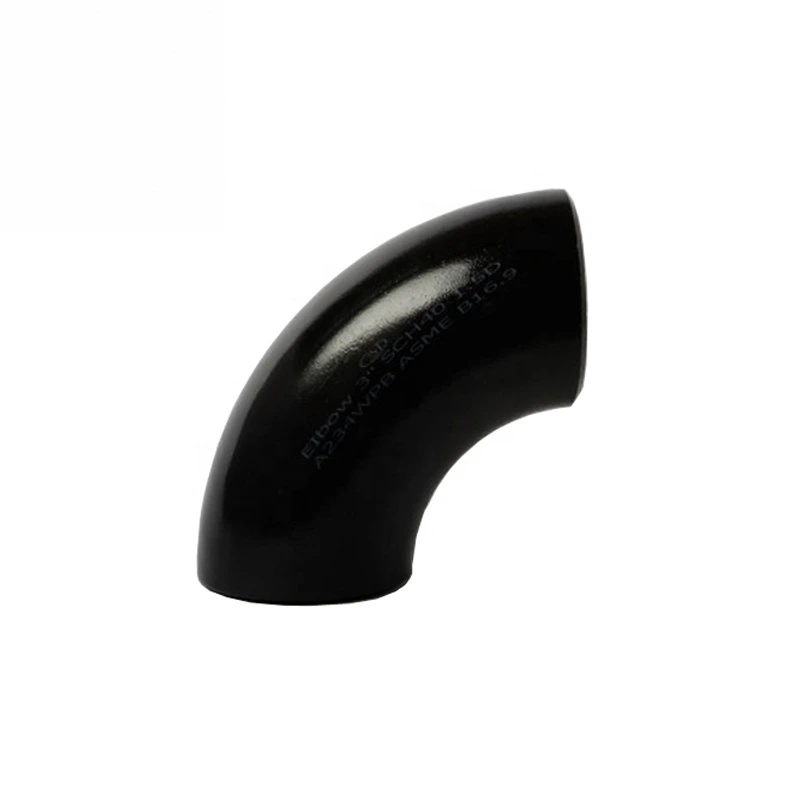

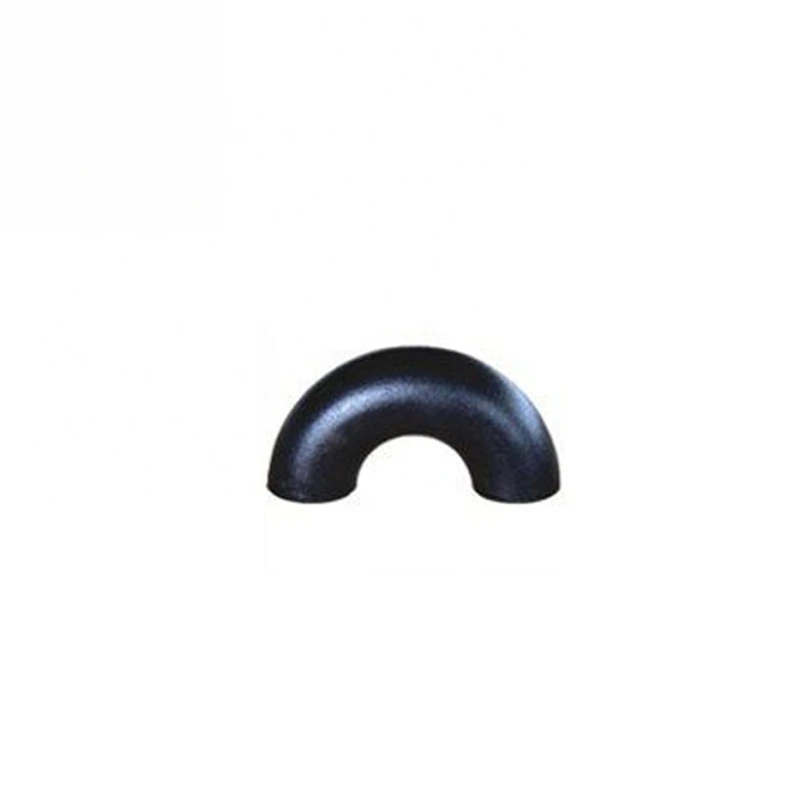

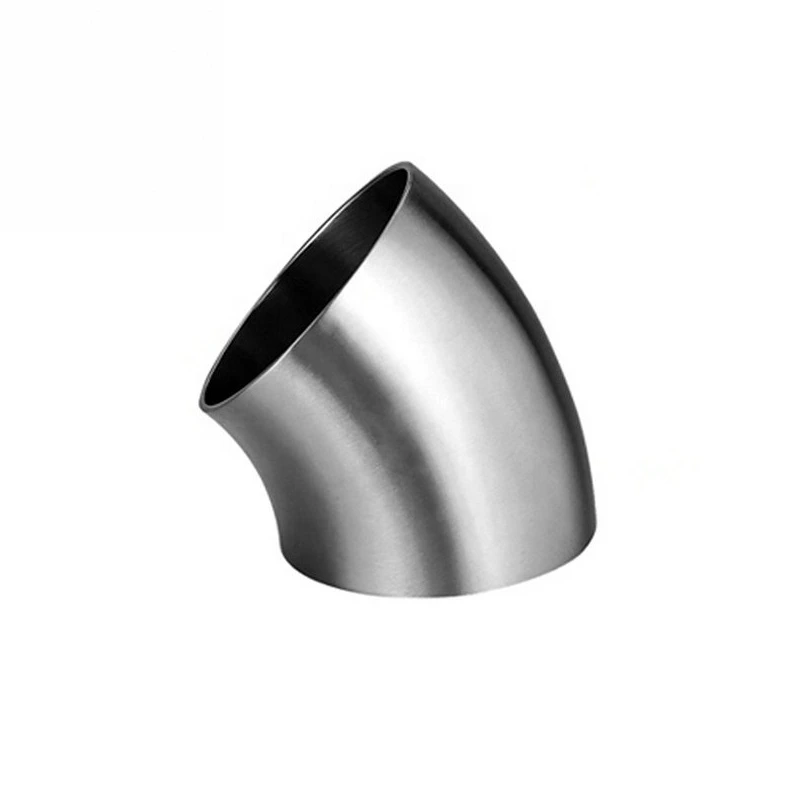

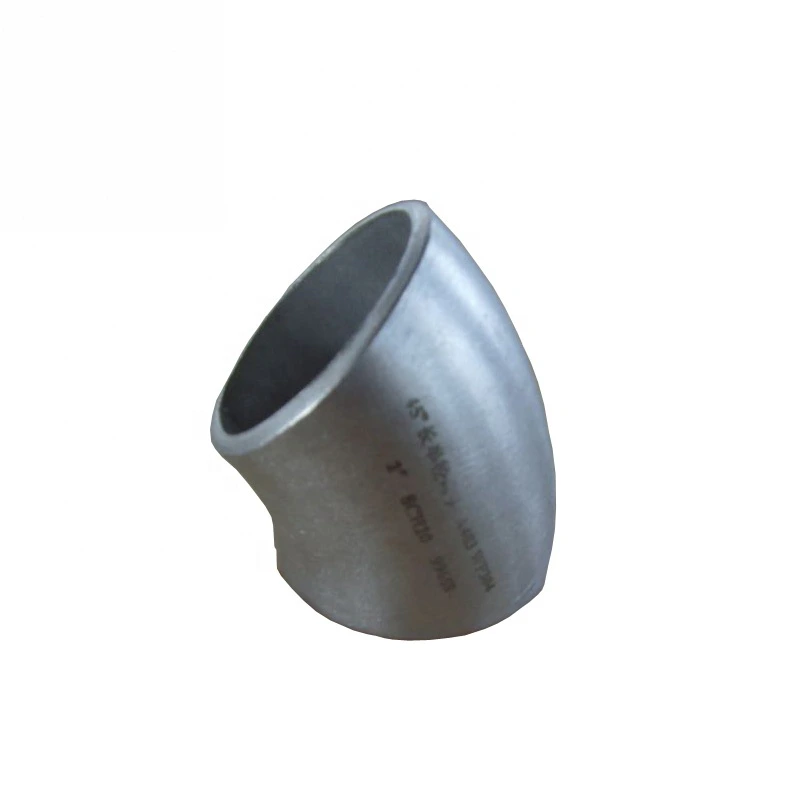

Stainless and Carbon Steel Welding Pipe Fitting Elbow
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearmodel number1/2" ~ 72" customizable
-
TechnicpushingConnectivityWelding
-
shapeEqualhead coderound
-
BrandSTColorblack or as per requirement
-
StandardASTM, DIN, GOST,JIS,ectPackingWooden Case or pallet
-
Surface treatmentoiled or paintingSize1/2"-72"
-
Keywordelbow,steel elbow,pipe fittingmaterialstainless steel
-
ThicknessSCH5-SCH160PaymentTT/LC
A welding pipe fitting elbow is selected around the change of direction required by the pipe layout. This elbow offers Stainless Steel, Alloy and Carbon Steel material choices, so the enquiry should identify one material requirement together with the intended elbow geometry.
Plan the turn before choosing the elbow
The turn angle and centerline radius determine how an elbow occupies the available space between adjoining pipe runs. Confirm both against a dimensioned layout before selecting the fitting; an angle alone does not describe its overall envelope or the positions of the two ends.
Check the end-size designation and actual mating-pipe dimensions as part of that layout review. For an equal-end arrangement, verify both ends rather than assuming that one size label establishes the required fit.
Separate the material choice from the grade
Stainless Steel, Alloy and Carbon Steel are distinct material-family selections. State the required grade explicitly, because a stainless option by itself does not establish whether the elbow meets a particular 304 or 316 requirement.
For a welded joint, include the required wall thickness and end preparation in the same specification. Confirm pressure, temperature and medium compatibility for that complete elbow configuration before relying on it in service.
Build an enquiry around the pipe layout
Send the elbow angle, radius, end dimensions and units together with the material grade and applicable dimensional standard. A drawing should show how the turn connects the two pipe runs and identify any space or alignment constraints.
Where a surface finish or protective treatment matters, define the required condition separately from the material. The most useful enquiry connects the selected welding elbow to one clear routing arrangement, giving the geometry and material requirements a common reference.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
