Flexible Connector Coupling Pipeline Ss304 Resistant Expans Connector Expansion Joint Rubber
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.

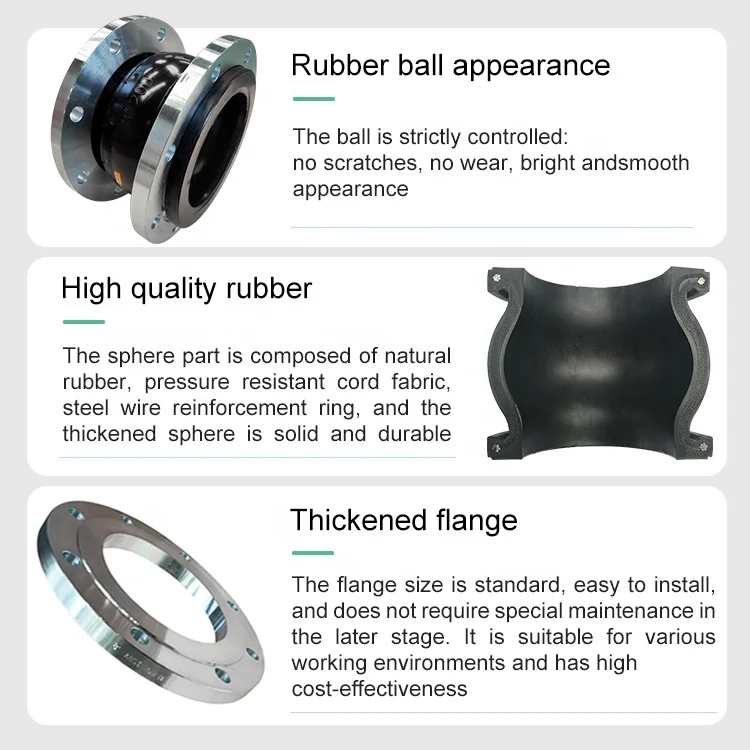

Product description
-
warranty1 Yearcustomized supportOEM, ODM
-
model numberREJTechnicForged
-
ConnectivityFlangeshapeEqual
-
head codeRoundOverall LengthAccording to requirements
-
HeightAccording to requirementsSurface TreatmentAccording to requirements
-
Mounting hole diameterAccording to requirementsPipe ClassAccording to requirements
-
Applicationwater supply and drainage systemsProduct namess304 resistant expans connector expansion joint rubber
-
Nominal DiametersDN15-DN4000PressurePN6 - PN40
-
Working temperature-15~+80 ℃ (special:-30~+150℃ )Rubber joint material:EPDM,NBR,CR,PTFE,etc.
-
Flange materialSS,CS,CS galvanized,ductile iron,PPH (PN10, PN16)Flange standardDIN PN10,PN16,PN25/ANSI 150LB,300LB/JIS 10K,etc.
-
Test pressure1.5 times of working pressureExplosion pressure2 times of working pressure
-
CertificateISO, TUV, WRAS, CO, MTC, etc
