ASTM A420 WPL6 / WP9 / WP11 / WP22 Steel Elbow Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
model numberelbow 6371TechnicCasting
-
Connectivitymale femaleshapeEqual
-
head codeRoundSurface TreatmentPainting
-
Mounting hole diameter0.26 inPipe Class1000
This steel elbow enquiry begins by identifying the exact material and governing specification. The title groups ASTM A420 with WPL6, WP9, WP11 and WP22 labels, while the variants offer broad stainless-steel and carbon-steel alternatives. Those labels need individual assignment before they can establish the selected elbow's material qualification or service suitability.
Choose one grade and its governing specification
State the required grade, specification and edition, then request traceable material records for the actual model. Do not treat the grouped labels as interchangeable materials or evidence that every option conforms under one standard. Establish the required inspection and test documentation, including any temperature-related criteria appropriate to the project. A broad material option or a photograph cannot make that grade and acceptance decision. Keep the dimensional standard and end-connection requirements explicit alongside the material specification.
Confirm the angle, radius and two interfaces

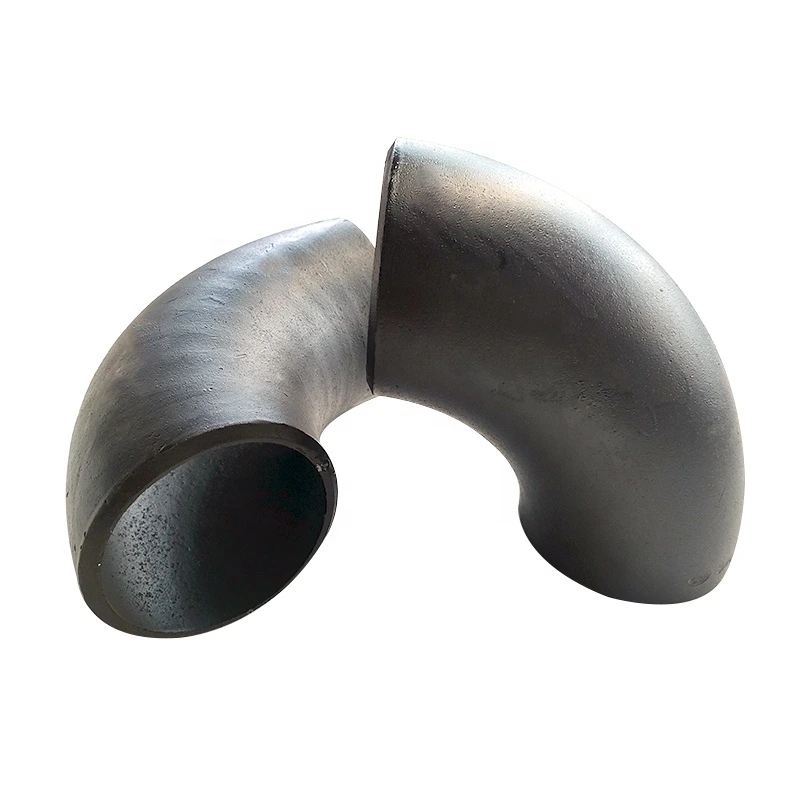

Give nominal pipe size, outside diameter, wall thickness and the actual end form at both connections. Explain what the millimetre choices measure. Specify angle, centreline radius and centre-to-end dimensions, and confirm the equal-end requirement on a drawing checked against the adjoining pipes. The curved elbow photographs do not establish numerical geometry. The male female and mounting-hole fields also cannot replace measured interface details. Define joining preparation and the space needed for the agreed inspection procedure.
Connect production evidence to operating acceptance
Resolve the Casting label against the chosen specification's production requirements and records before accepting a manufacturing route. Describe coating preparation, coverage and joining-area condition instead of relying on Painting alone. Supply actual fluid, pressure, temperature and corrosion conditions for assessment of the complete joint. Pipe Class 1000 does not establish an allowable pressure-temperature limit; acceptance needs matching material, manufacturing, inspection and duty evidence for the selected item.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
