Stainless Steel Flexible Corrugated Compensato Bellow Metal Expansion Joint
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
warranty1 yearcustomized supportOEM, ODM
-
model numberBEJTechnicForged
-
ConnectivityFlangeshapeEqual
-
head codeRoundOverall LengthAccording to requirements
-
HeightAccording to requirementsSurface TreatmentAccording to requirements
-
Mounting hole diameterAccording to requirementsPipe ClassAccording to requirements
-

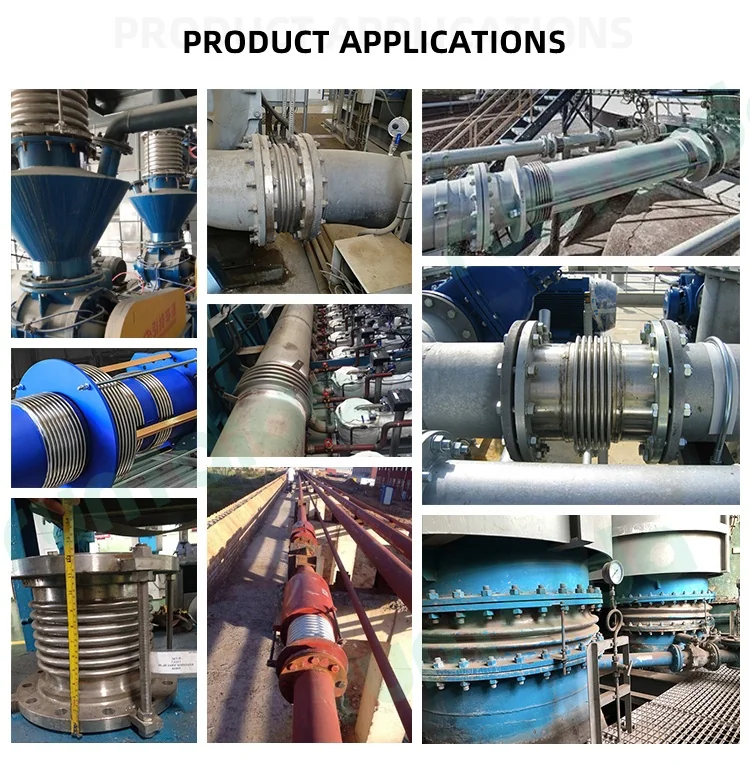

Applicationwater supply and drainage systemsProduct namecorrugated compensato bellow metal expansion joint
-
Working PressurePN10 - PN40Maximum Temperature-10℃ - +300℃
-
Applicable mediaWater, hot water, steam, oil, air, etcFlange StandardsANSI, DIN, JIS, etc
-
Nominal diameterDN50 - DN3000Flange materialStainless steel 304, 316,etc.
-
Bellows materiaStainless steel 304,316,etc.Axial compention dosage± 3.5 mm
-
ManufacturerYes, factory add: Gongyi City,China
