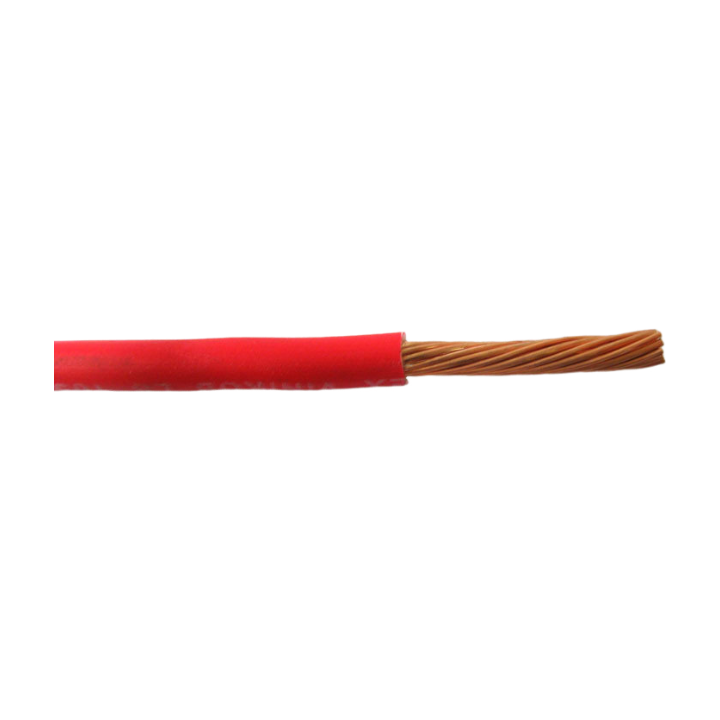

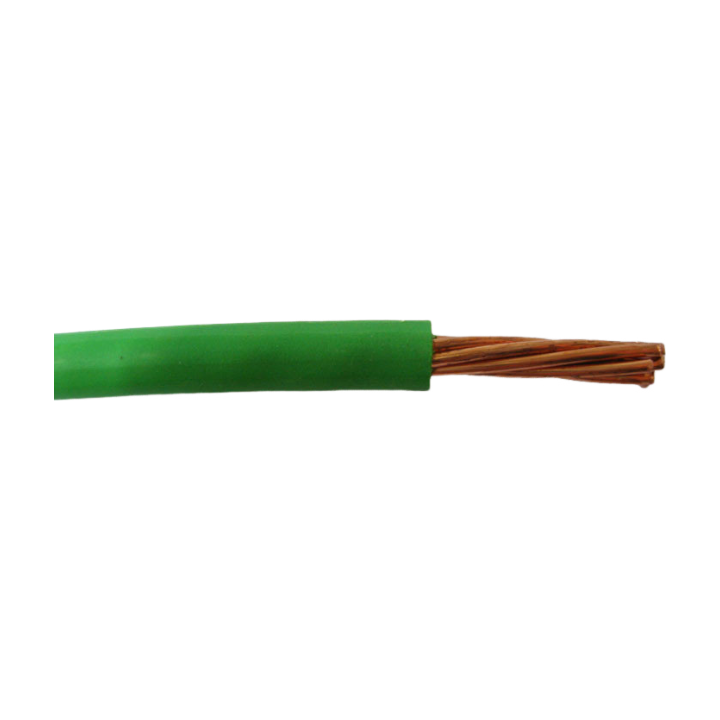

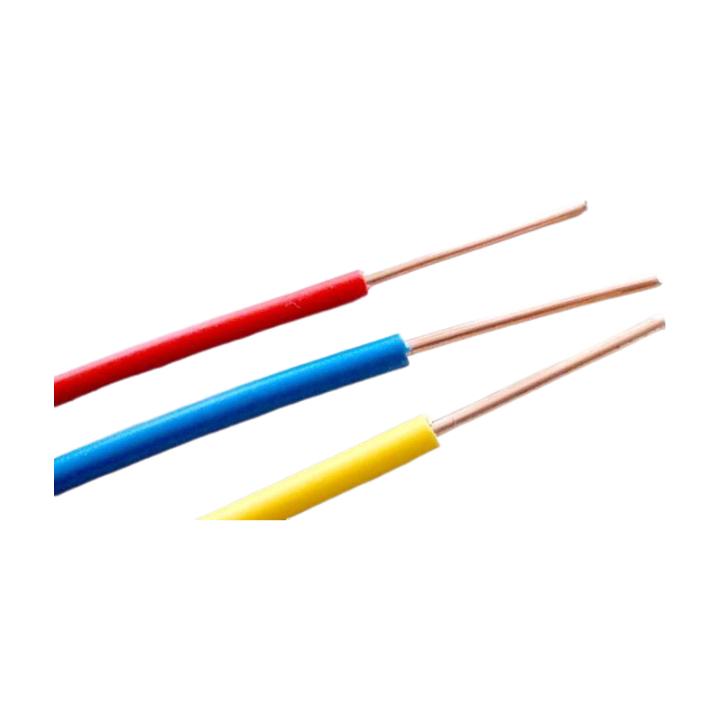

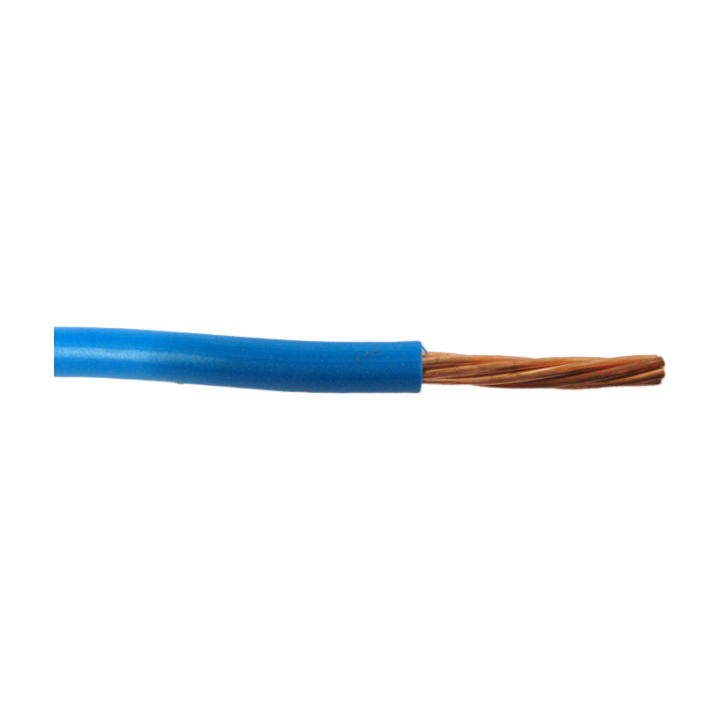

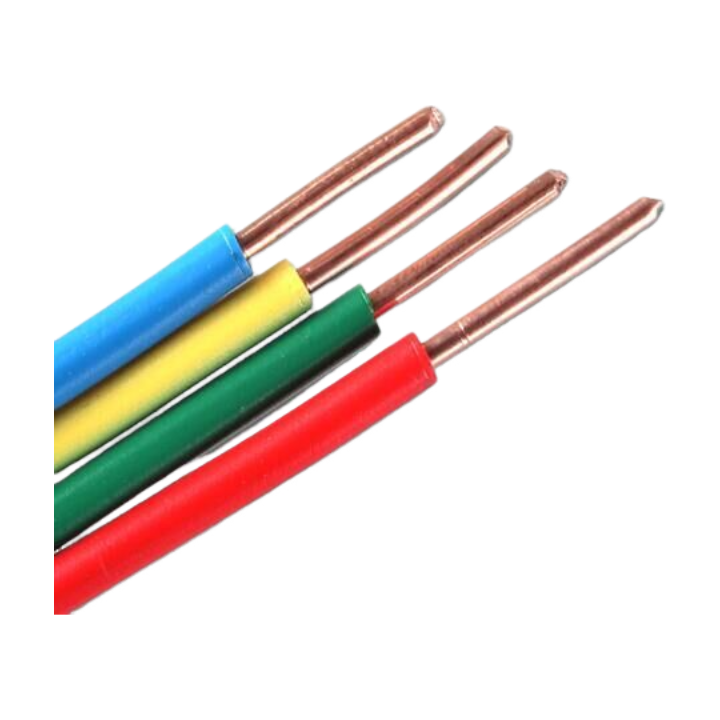

Single core solid cables
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Application
Used for building wire for power, lighting and control wire, can be fixed into truck and conduit.
Standard
IEC227/BS6004
Rated Voltage
300V/500V, 450V/750V
Color
White, Black, Yellow, Red, Blue, Yellow/Green, etc
Specification
|
Item |
Cross Section of Area (mm2) |
Conductor Wire No./Dia. (±0.01mm) |
Insulation Thickness (±0.05mm) |
Cable O.D (±0.1mm) |
|
PVC Insulated Single Cable |
1.0 |
1/1.13 |
0.6 |
2.5 |
|
1.5 |
1/1.38 |
0.8 |
3.0 |
|
|
7/0.52 |
0.8 |
3.2 |
||
|
2.5 |
1/1.78 |
0.8 |
3.4 |
|
|
7/0.68 |
0.8 |
3.6 |
||
|
4.0 |
1/2.25 |
0.9 |
4.0 |
|
|
7/0.85 |
0.9 |
4.2 |
||
|
6.0 |
1/2.76 |
0.9 |
4.8 |
|
|
7/1.04 |
0.9 |
5.0 |
||
|
10.0 |
7/1.35 |
1.0 |
5.8 |
|
|
16.0 |
7/1.70 |
1.0 |
6.8 |
|
|
25.0 |
7/2.14 |
1.2 |
8.5 |
|
|
35.0 |
7/2.52 |
1.2 |
10.0 |
|
|
50.0 |
19/1.78 |
1.4 |
11.9 |
