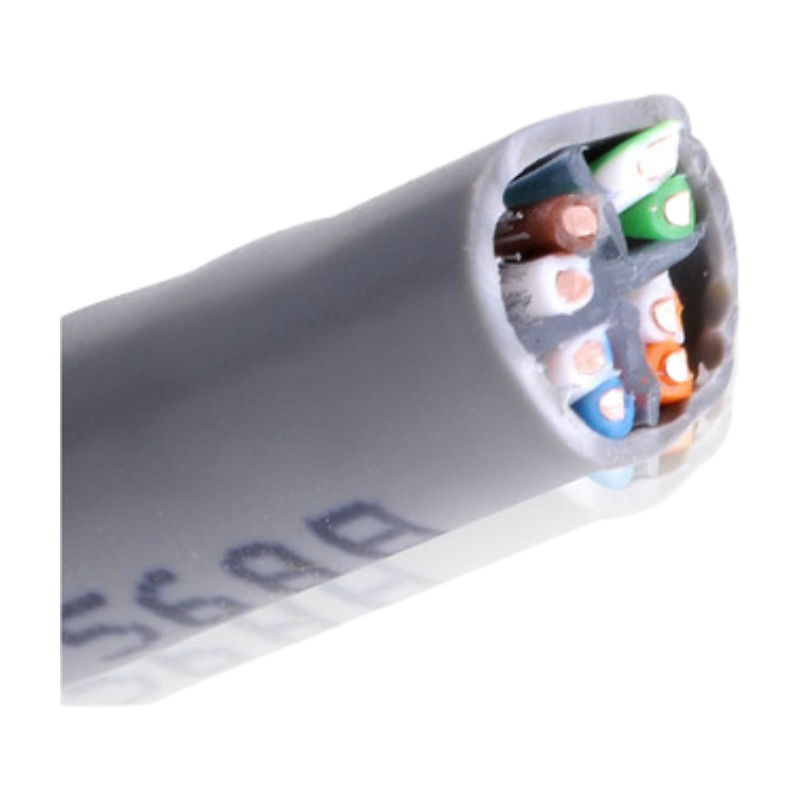

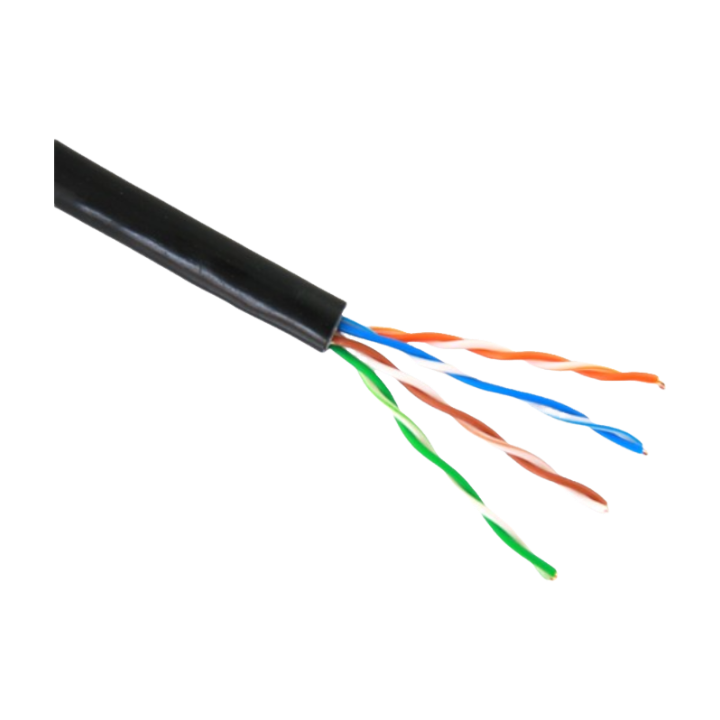

Network cat6e cables
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
Cores：4 pairs
Conductor Diameter：23 AWG to 26 AWG
Cable Structure
UTP Cat 5e
Conductor/Insulation/Ripcord/Sheath
FTP Cat5e
Conductor/Insulation/Ripcord/Al Foil/Sheath
FSTP Cat5e
Conductor/Insulation/Ripcord/Al Foil/Braiding/Sheath
Conductor Material：Cu
Conductor Diameter：0.52mm, 0.50mm, 0.48mm, 0.45mm
Insulation：PE
Braiding Material：Al, CCA, Cu (32，64，96，128 Strands)
Sheath：PVC
Application：Computer Data Connection
