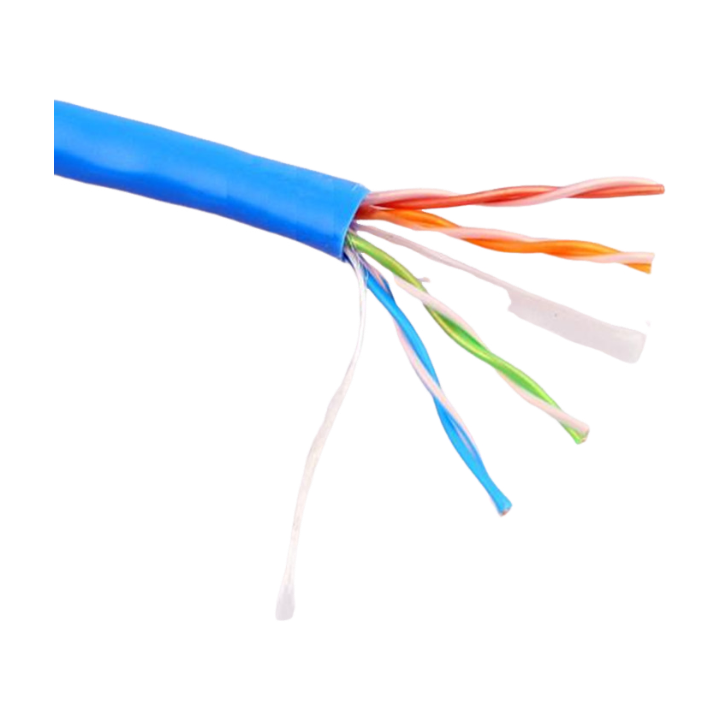

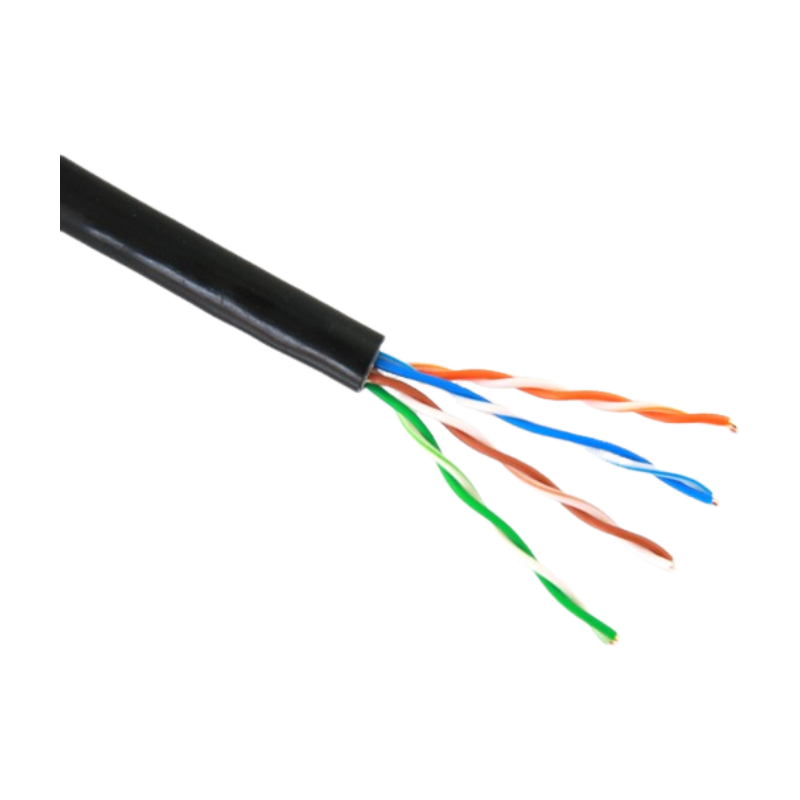

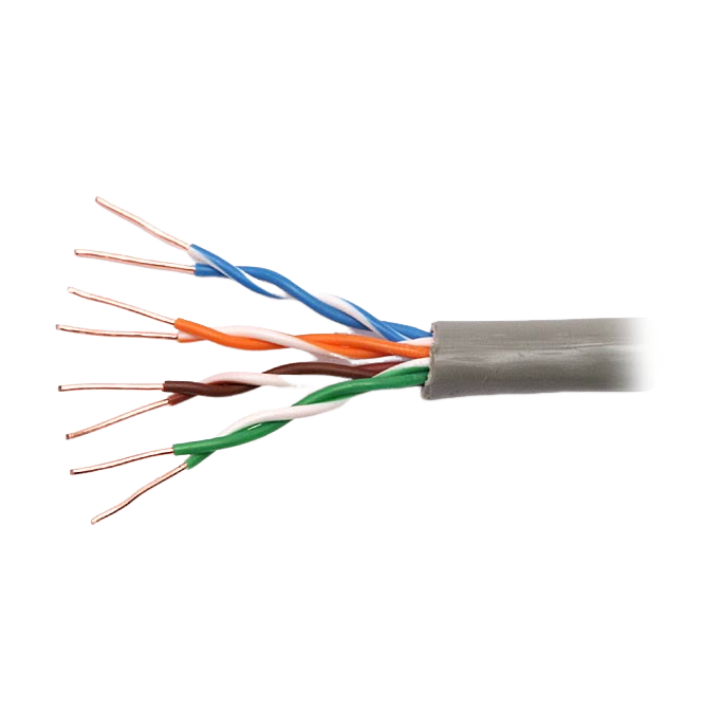

Network cat5e cables
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Cores：4 pairs
Conductor Diameter：23 AWG to 26 AWG
Cable Structure
1) UTP Cat 5e
Conductor/Insulation/Ripcord/Sheath
2) FTP Cat5e
Conductor/Insulation/Ripcord/Al Foil/Sheath
3) FSTP Cat5e
Conductor/Insulation/Ripcord/Al Foil/Braiding/Sheath
Conductor Material：Cu
Conductor Diameter：0.52mm, 0.50mm, 0.48mm, 0.45mm
Insulation：PE
Braiding Material）：Al, CCA, Cu (32，64，96，128 Strands)
Sheath：PVC
Application：Computer Data Connection
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
