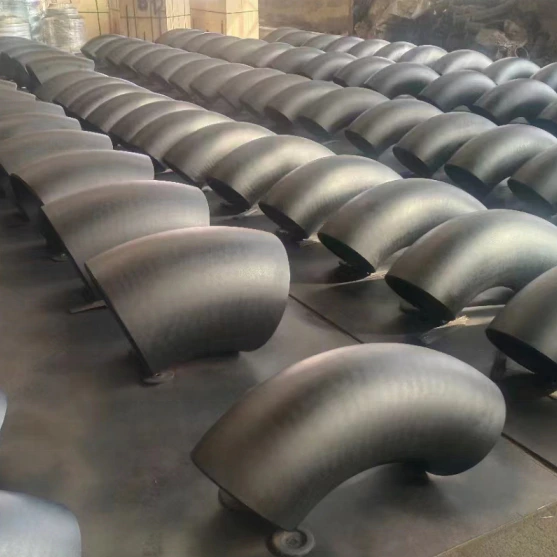

Forged Carbon Steel SCH40/80 Elbow

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This forged carbon steel elbow is listed for construction engineering with SCH40/80 and 45/90/180-degree references. The actual variant contains only the elbow family, Carbon Steel and a half-inch to 12-inch range. Confirm the individual angle, wall and nominal size when enquiring.

Select one bend and wall specification for the order

Identify the required angle and selected schedule, then obtain actual wall dimensions for the chosen size. Specify radius, nominal sizing convention and tolerances on an approved drawing. The title alternatives do not establish separate available variants, and schedule wording should not be read as operating pressure.

Request finished length, height and hole dimensions rather than copying the range repeated in those fields. Clarify the Hexagon head code within the drawing. No butt-weld, seamless or long-radius designation is supplied here, so these details require explicit confirmation.

Define forged material supply and each connection

Obtain the complete carbon steel designation, condition, governing specification and edition. The record does not identify a selected grade or numbered standard. Request evidence for the forged route, material certificates, traceability and the conformity scope applying to the actual component.

Allocate Welding and NPT to individual ends in a connection schedule. Confirm preparation, applicable full thread details, mating parts, sealing and examination requirements. Agree measurable smooth-surface criteria and delivery protection alongside the dimensional and material checks.

Set the construction operating and inspection basis

Provide medium composition, pressure and temperature limits, cycling, external exposure and mechanical loads for the intended system. The Low Pressure and Not Rated entries leave numerical duty unconfirmed for the selected elbow. Require corrosion evidence relevant to that environment and confirm material, joint and rating acceptance. Include the chosen angle, schedule, drawing and test requirements in the approved quotation.
