Runtaida Forged DIN PN16 Flanged EPDM Flexible Rubber Coupling for Water Pipeline Shipbuilding Petrochemical Industry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
warranty1 yearcustomized supportOEM, ODM
-
model numberREJTechnicForged
-
ConnectivityFlangeshapeEqual
-
head codeRoundSurface TreatmentCleaning Supplies
-
Mounting hole diameterAccording to requirementsPipe FeaturesFlexible, Corrosion-resistant
-

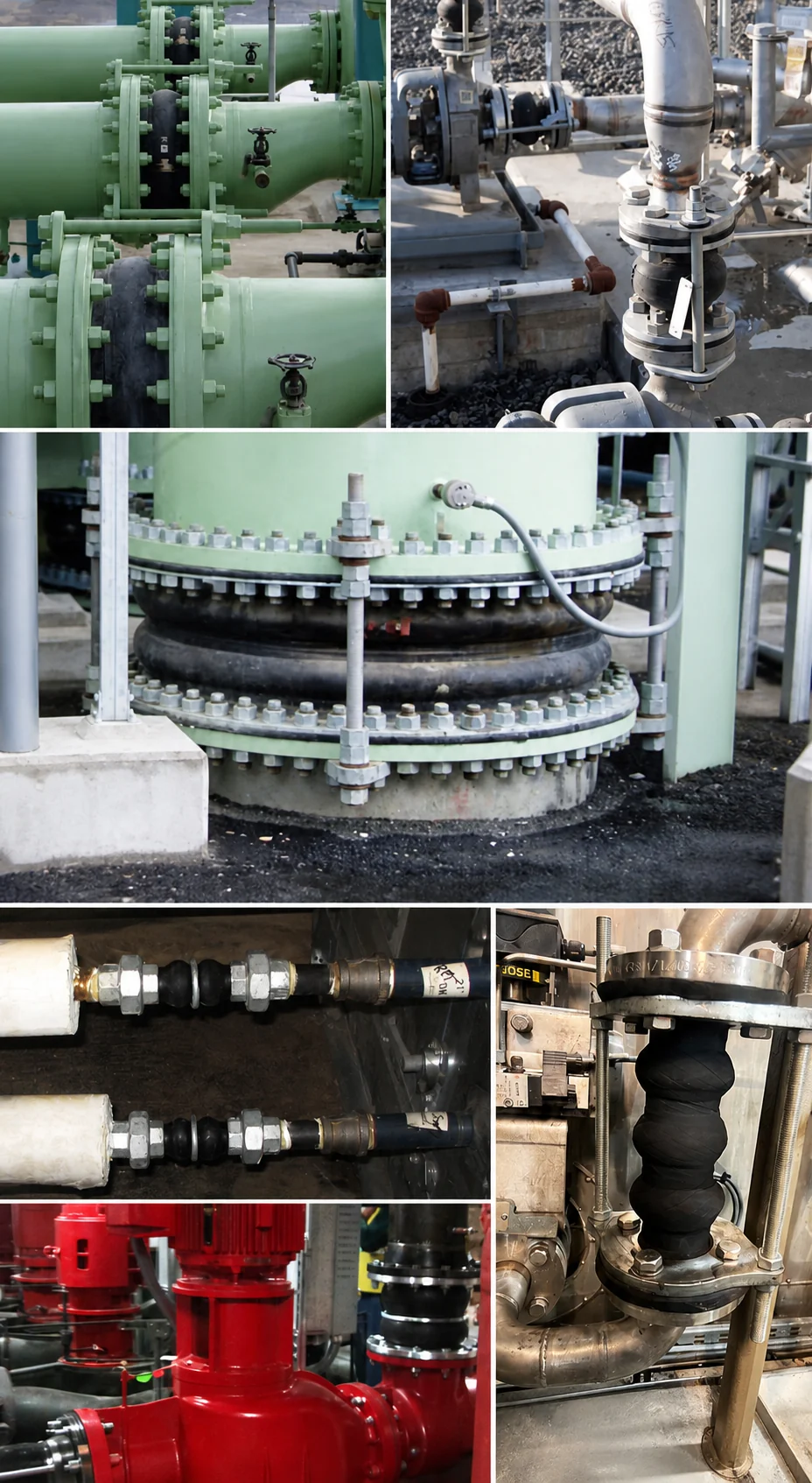

Pipe ClassNot RatedApplicationAgricultural Irrigation, Construction Engineering, Shipbuilding, petrochemical industry
-

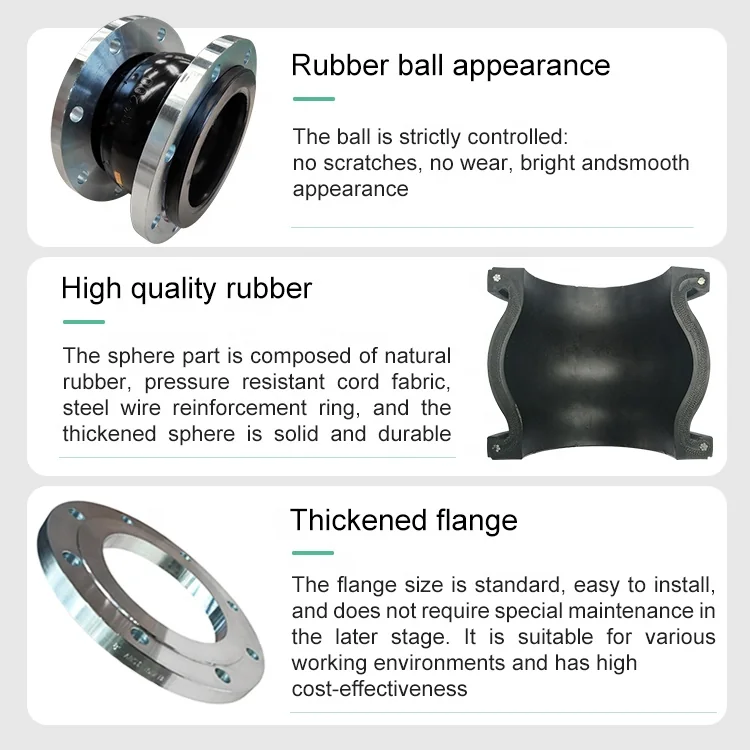

Product namecompensator SS304 flange single sphere rubber flexible jointNominal sizeDN25 - DN3000
-
Working pressurePN6 - PN40Working Temperature-15℃-80℃(Special -30℃-150℃)
-
Flange standDIN, ANSI, BS, ISO, JIS,etcMaterial of flangeCarbon steel, Stainless steel 304,316 etc.
-
Product CertificateISOApplicable mediaAir, Water, Oil, Weak Acid and Alkali, Juice etc.
-
Factory addressHenan, ChinaRubber materialEPDM, NBR, NR, Neoprene, etc
