A234 WPB SCH40 Carbon Steel Reducer | Concentric / Eccentric Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.19in
-
Pipe Class150SizeCustomized Size
-
Product nameElbow

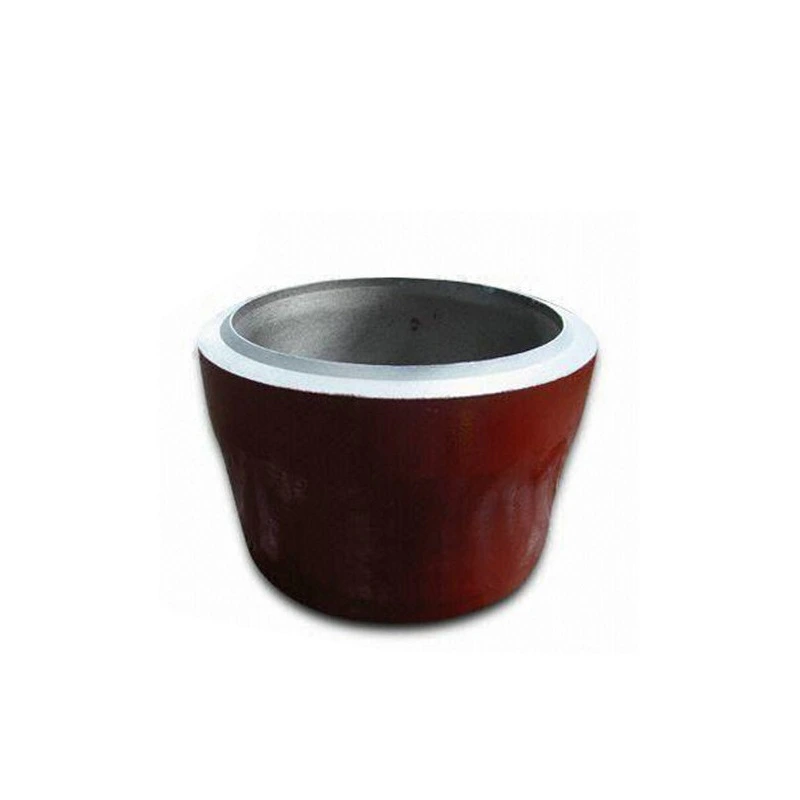

This A234 WPB carbon-steel SCH40 reducer enquiry lists concentric and eccentric construction references with a half-inch to 72-inch title range. Reducer variants and the tapered-fitting photograph establish the family. Resolve the Equal body entry and select actual two-end dimensions before accepting geometry or offered size combinations.
Specify both ends and the centreline relationship
Identify larger and smaller end nominal sizes, outside diameters, actual walls, overall length and transition profile. Select concentric or eccentric geometry on a dimensioned drawing. For an eccentric requirement, define offset and installation orientation against the pipe layout. Resolve Equal against the reducing requirement rather than assuming a selected end relationship. Explain which end the single millimetre option denotes and provide the other size separately. The photograph cannot qualify exact offset, ratio or dimensions across all variants.
Confirm wall mapping, material and offered combinations
Map SCH40 to both ends under the chosen dimensional system with measured fitting and adjoining pipe walls. Select Carbon Steel for the A234 WPB requirement and obtain specification, edition and traceable grade records; Stainless Steel and Alloy alternatives need separate assignments. Agree the numbered dimensional fitting standard, which is absent from the title. Verify Forged through production and inspection evidence. Confirm actual offered combinations and availability beyond the title range and Customized Size.
Qualify the complete welded transition
Reconcile the imported Elbow name and generic Hexagon or mounting-hole entries against the selected reducer drawing. Match both welding-end preparations to the mating pipes and agree alignment, joining procedure and inspection access. Define Painting through coating type and weld-zone condition. Provide fluid, pressure, temperature, corrosion and mechanical loads for full transition-assembly assessment; Pipe Class 150 alone does not establish allowable duty. Base acceptance on the selected geometry, traceable material/manufacturing and welded-joint evidence.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
