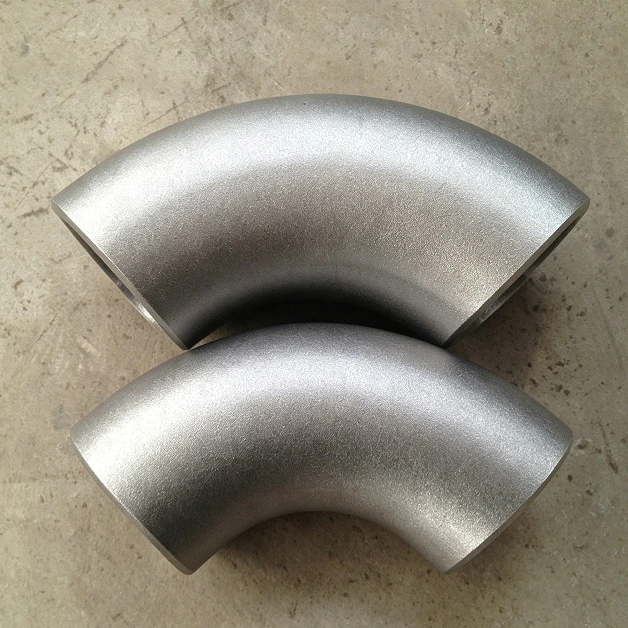

Pipe Elbow for Chemical and Marine Engineering
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty3 Yearscustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeBendhead codeHexagon
-
Overall Length1/2" - 12"Height1/2" - 12"
-
Surface TreatmentsmoothPressureLow Pressure
-
System of MeasurementINCHMounting hole diameter1/2" - 12"
-
Pipe Featurescorrosion resistantPipe ClassNot Rated
-
ApplicationConstruction EngineeringThread TypesNPT
This chemical plant and marine engineering elbow listing references ASTM A403 WP316L and seamless manufacture in the title. Its material option instead reads Carbon Steel. Establish the actual supplied material before evaluating the elbow for a process fluid or marine environment.
Resolve the grade and manufacturing evidence
Request the material certificate, chemistry, condition and traceability for the proposed part. Ask the supplier to reconcile the WP316L title with the Carbon Steel option and identify the applicable purchase specification. Neither source entry alone establishes the verified material of the supplied elbow.
Confirm the manufacturing route and any required heat treatment or examinations. Seamless title wording and the FORGED table label do not replace production records. Review the applicable ASTM A403 requirements only after the actual material and supply condition have been established.
Define geometry and the actual connection
Specify the elbow angle, radius, center-to-end dimensions, outside diameter, wall and bore. The 1/2–12 inch option range does not define a particular schedule or every available combination. Repeated length, height and mounting-hole ranges should be replaced in the purchase drawing by the actual required dimensions.
The table also combines Welding with NPT. Obtain a clear end specification rather than assuming a welded, threaded or mixed arrangement. Check the generic Hexagon field against the approved geometry, and agree dimensional tolerances and inspection requirements for the selected part.
Assess chemical and marine exposure
Describe the media, concentration and relevant chloride or external exposure, together with pressure, temperature and cycles. The corrosion-resistant label does not establish universal marine compatibility. Low Pressure and Not Rated give no numerical allowable limits. Review material and joints for the actual duty, then confirm finish, preservation, documents, quantity, OEM scope, warranty terms and delivery.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
