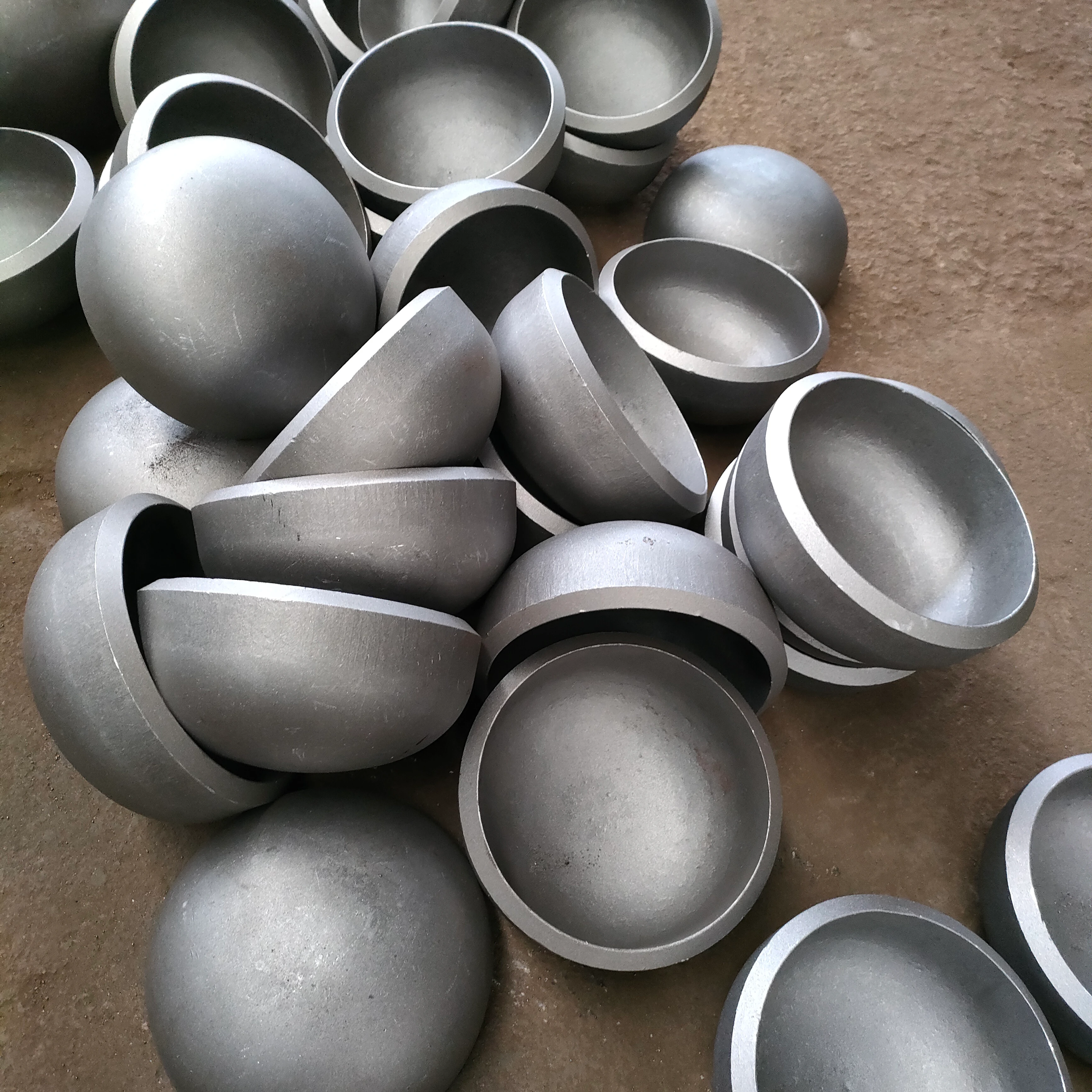

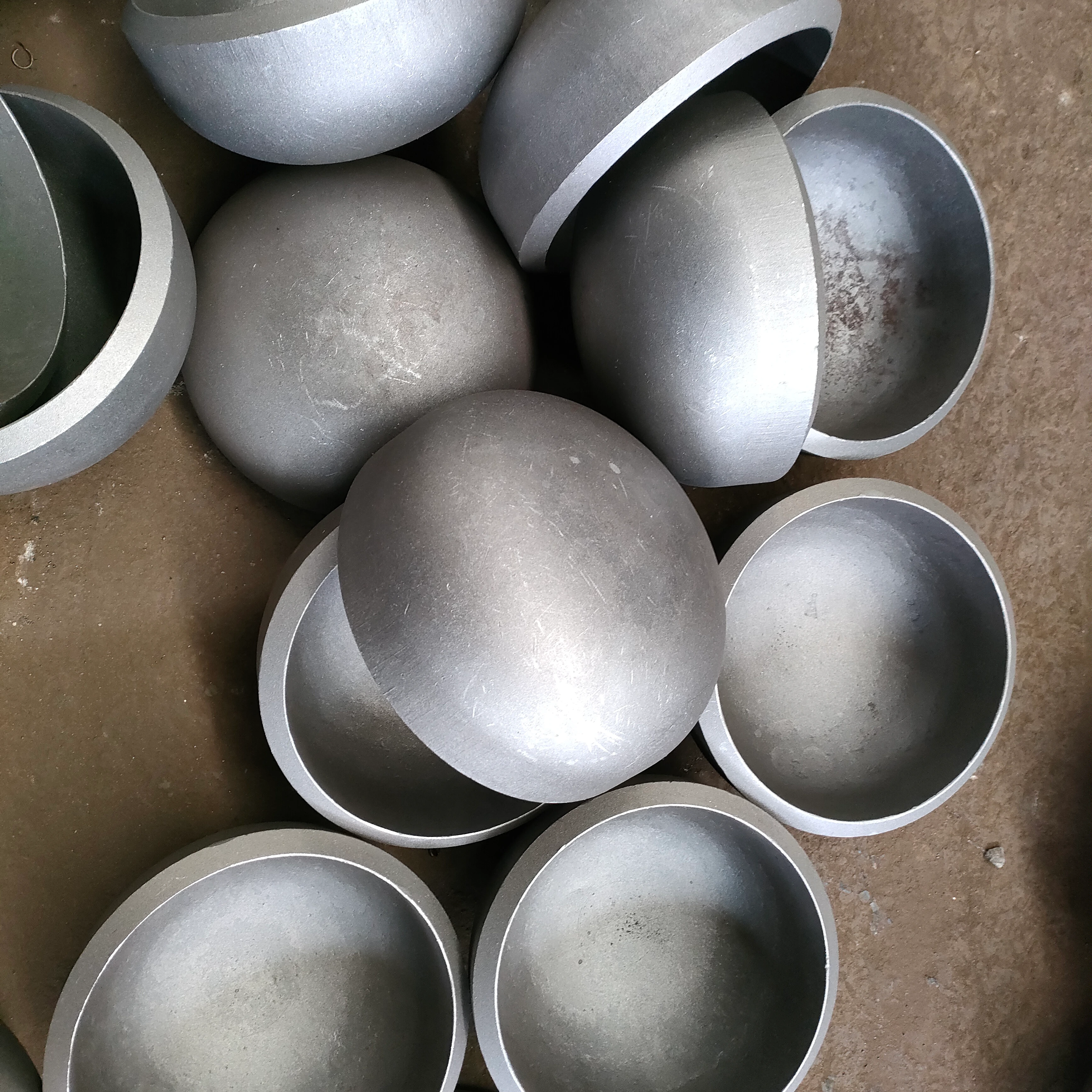

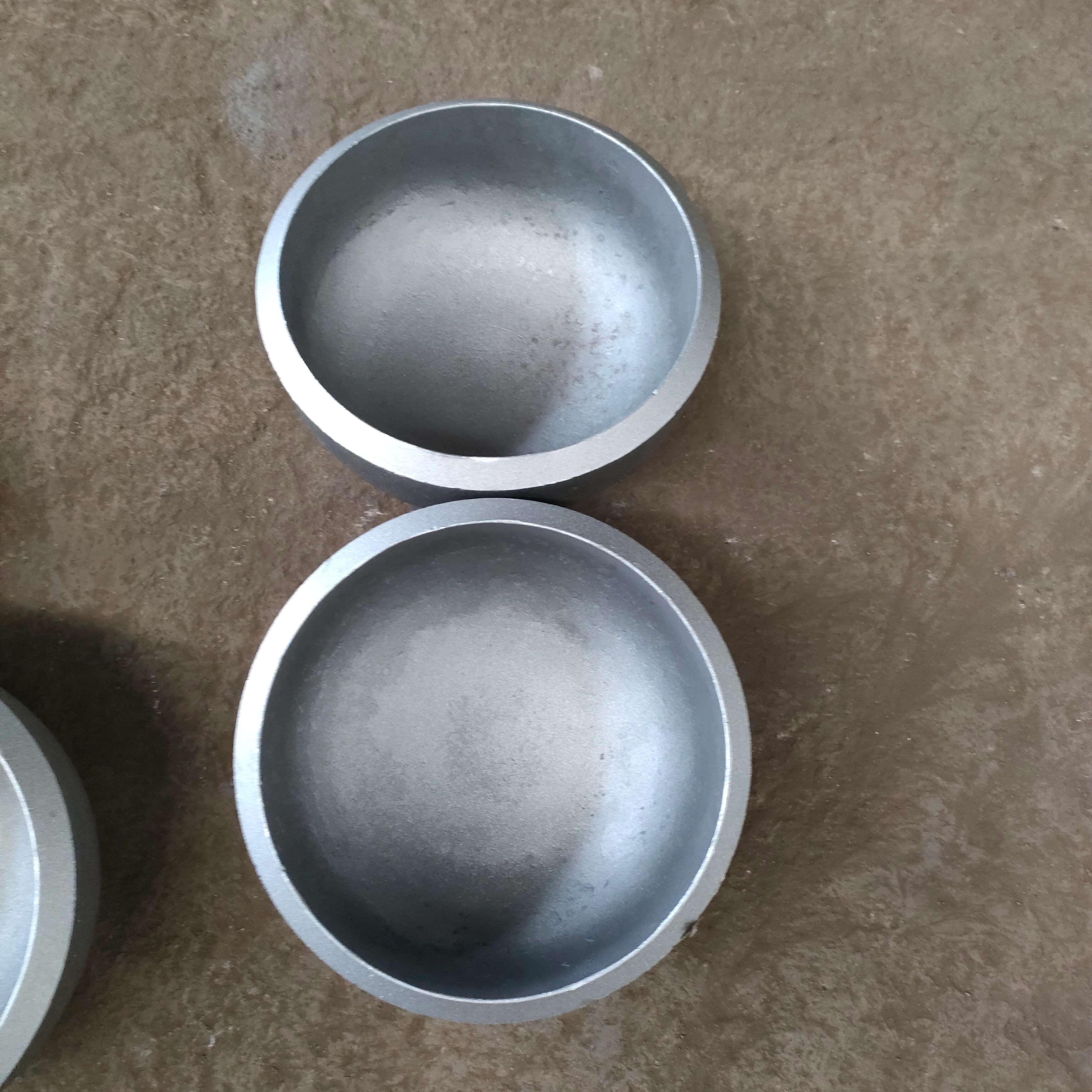

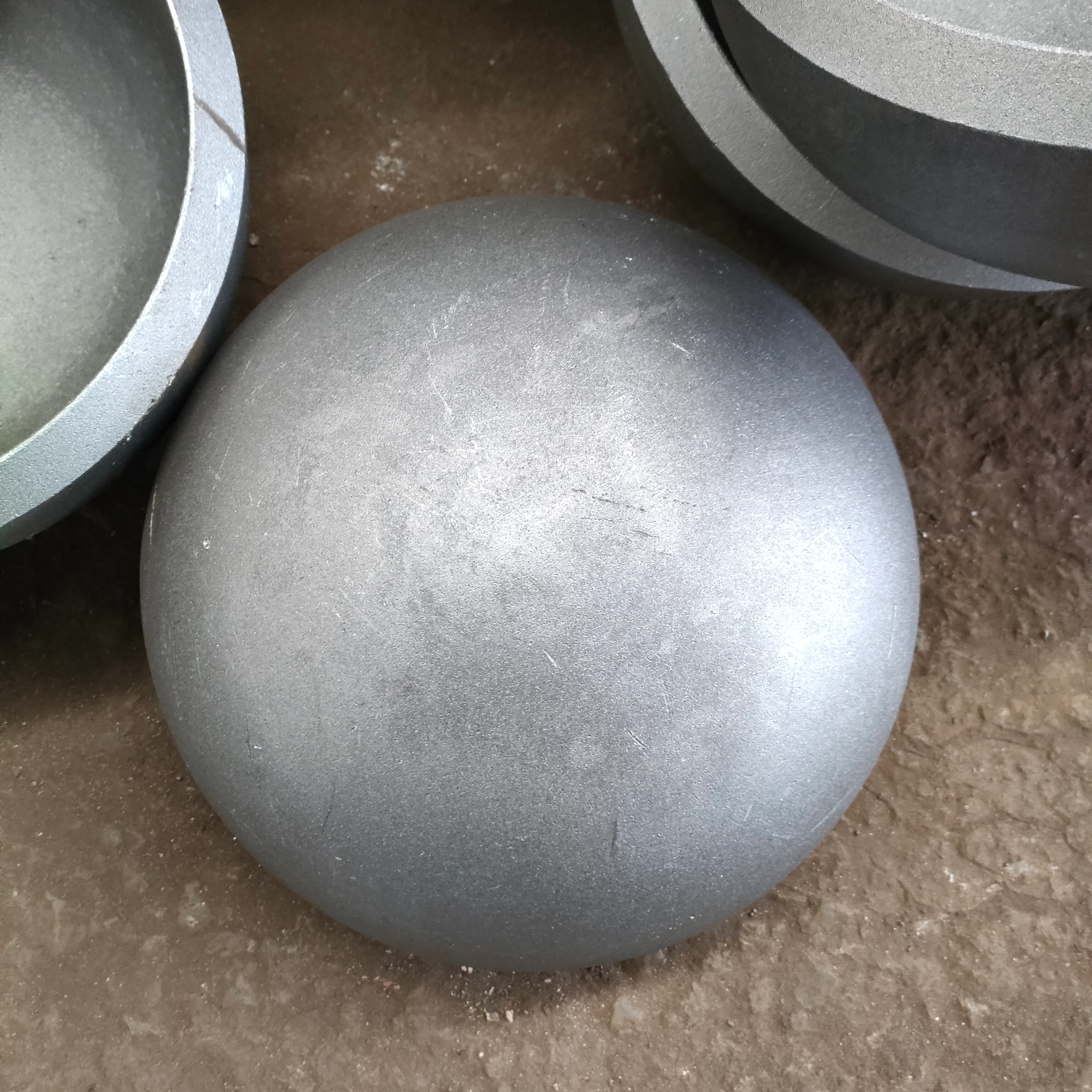

ASTM A234 WPB Carbon Steel Sch40 Pipe End Cap Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
model number1/2"- 72"TechnicForged
-
ConnectivityWeldingshapeReducing
-
head codeSquareSurface TreatmentPainting
-
Mounting hole diameter0.25 inPipe Class125
-
colorblack
A carbon-steel pipe end-cap enquiry concerns the closed fitting used at the end of a pipe. Identify the required cap shape and the pipe dimensions before choosing a configuration. An ASTM A234 WPB and Sch40 requirement needs to be tied to the selected item through its drawing and material records. The enquiry should define the complete closure specification.
Identify the Cap and Mating Pipe Size
Request a dimensional drawing that identifies the proposed item as a pipe end cap. State the nominal pipe size and obtain the corresponding cap end diameter, overall dimensions and wall thickness. Compare the end dimensions with the pipe being terminated. If the requirement is Sch40, confirm the applicable thickness for that selected size. A size label without the associated dimensions is not enough to define the pipe-end fit.
Document WPB Material and Weld Preparation
Specify the exact ASTM A234 WPB material requirement and obtain traceable records for the selected cap. Confirm the manufacturing process on the production documentation. Define the weld-end preparation and match it to the adjoining pipe specification and joining requirements. Keep the cap drawing, wall thickness and material record linked to the same item so that they can be reviewed together.
Assess the Complete Pipe-End Closure
Name the process medium and describe the intended pressure and service temperatures. Obtain the applicable design and operating qualification for the closure arrangement rather than relying on a generic class label. Check the overall cap dimensions against the available installation space. A complete enquiry identifies the cap, mating pipe, thickness, weld preparation, material and design basis. Those details allow the proposed fitting to be assessed for the actual pipe-end application before the final size and configuration are selected.
