ASME B16.9 Steel Butt Weld Concentric Reducer Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentSmoothMounting hole diameter0.2 in
-
Pipe Class1000SizeCustomized Size
-
Product nameElbow

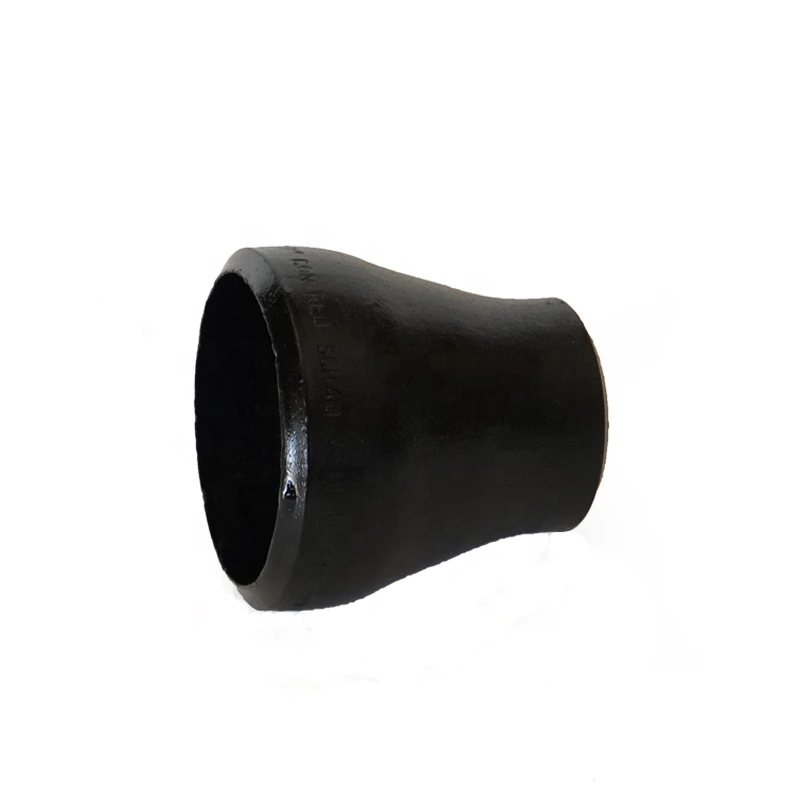

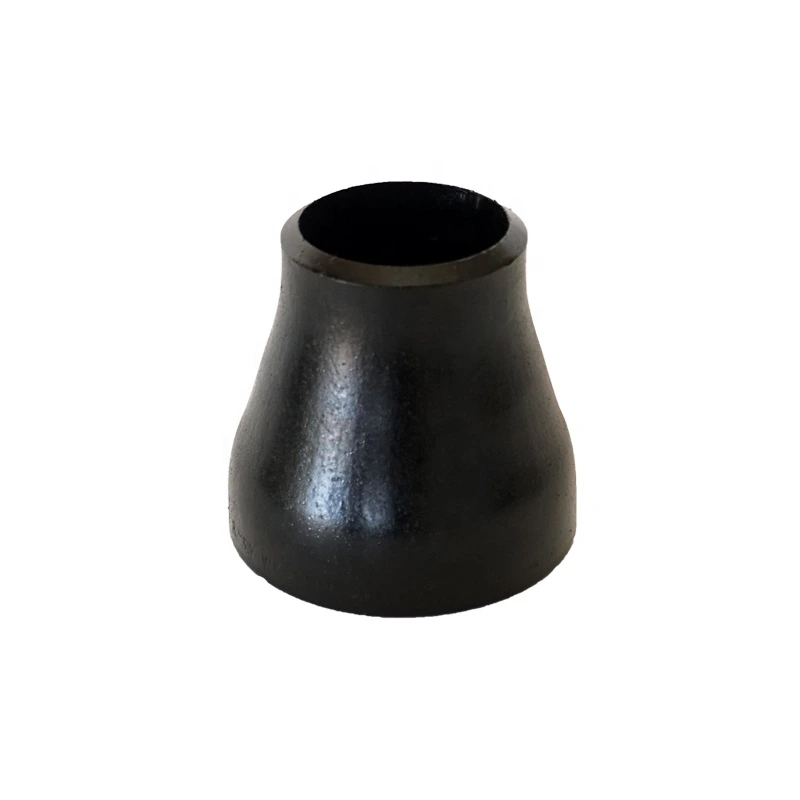

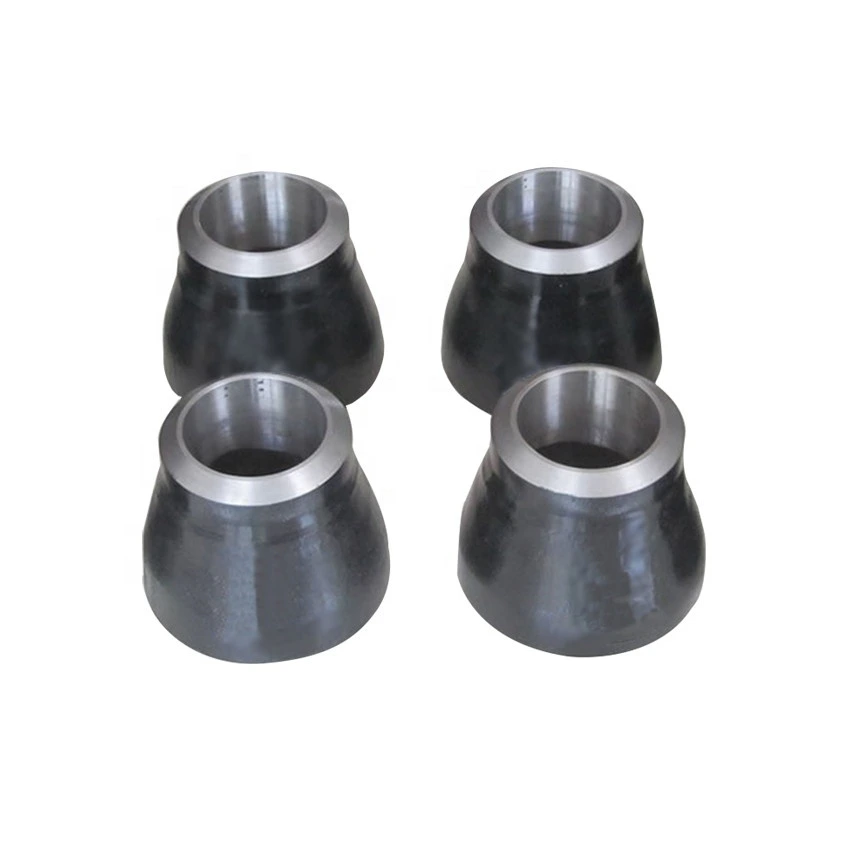

This steel pipe fitting listing can support an enquiry for a concentric reducer connecting different pipe sizes. Begin with a drawing of the requested reducer and identify the exact configuration being quoted. A useful specification describes the transition at both ends, rather than relying on a single size label or a broad material choice.
Describe Both Ends of the Pipe Transition
Provide the large-end and small-end nominal sizes together with each mating pipe outside diameter and wall thickness. Request the reducer length, end dimensions and centreline relationship on the same drawing. Confirm that the selected fitting has the required reducer form before evaluating the dimensional details. For a concentric arrangement, have the drawing establish the required alignment; the general appearance of a tapered fitting cannot establish dimensional tolerances.
Specify the Weld Interface and Manufacturing Route
Define the butt-weld preparation required at each end and compare it with the pipe thickness and joint detail. Name the exact stainless-steel, alloy-steel or carbon-steel grade for the project. Ask for material records and production documentation that identify the manufacturing route of the quoted fitting. If seamless construction is required, include that requirement explicitly and obtain evidence tied to the selected item. Check that the dimensions, material records and fabrication detail all describe one configuration.
Connect the Standard Scope to Actual Line Duty
State the applicable ASME B16.9 edition and required dimensional or conformity scope. Request supporting records instead of treating the standard reference as a complete pressure-design qualification. Describe the operating pressure, temperature and fluid, and identify any flow-transition or installation-orientation requirements for assessment. The completed enquiry should link both pipe interfaces, steel grade, manufacturing requirements and documented design limits so the reducer can be reviewed in the context of the intended pipeline.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
