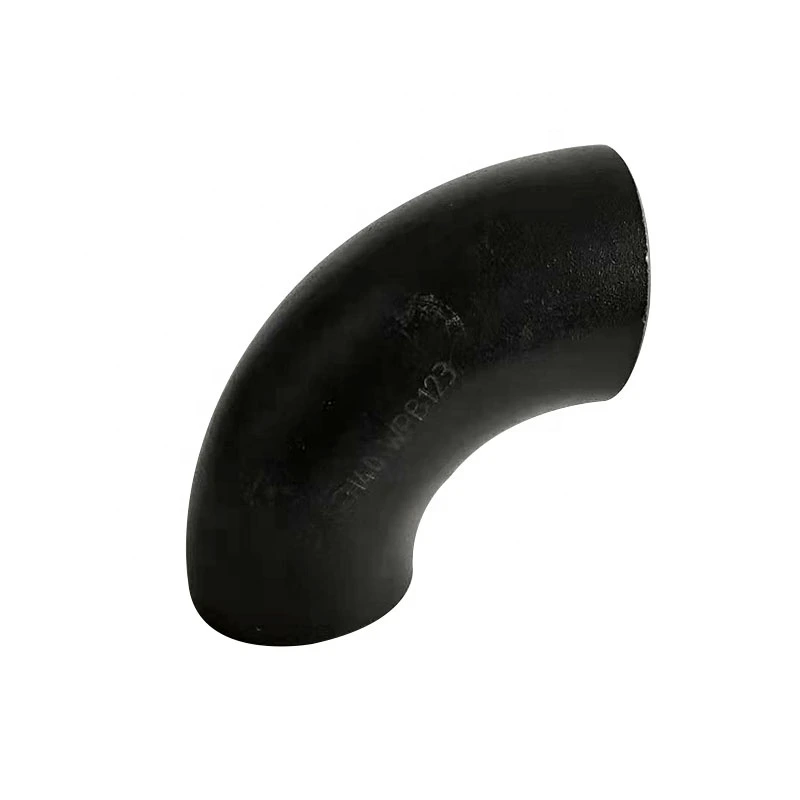

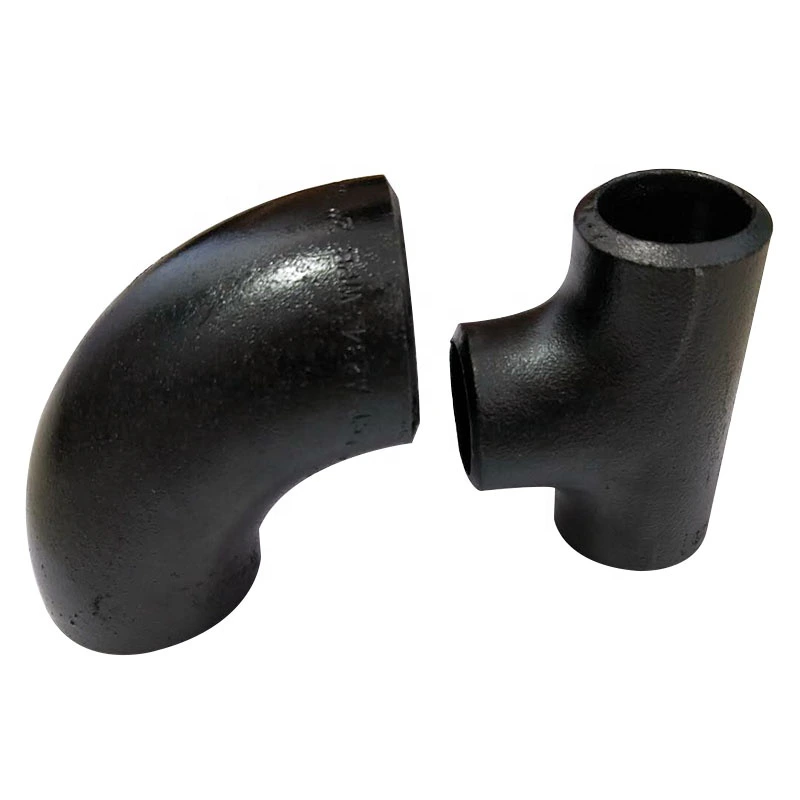

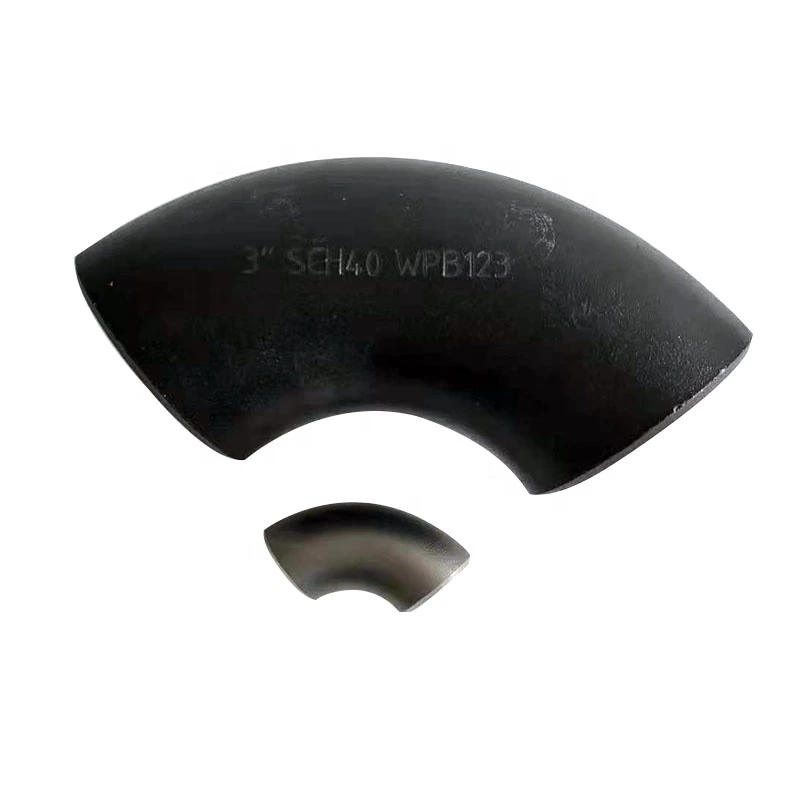

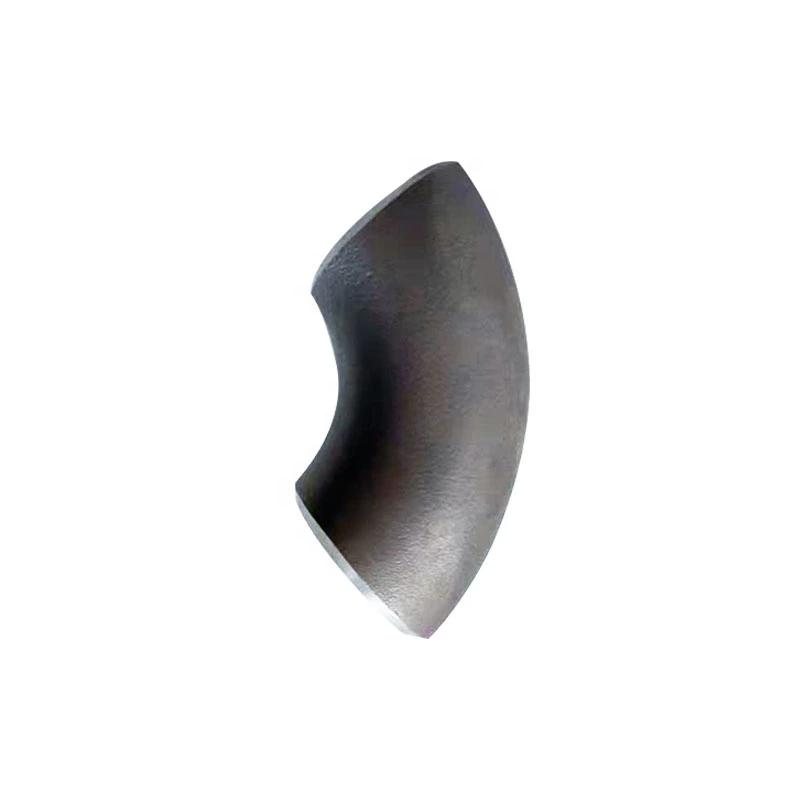

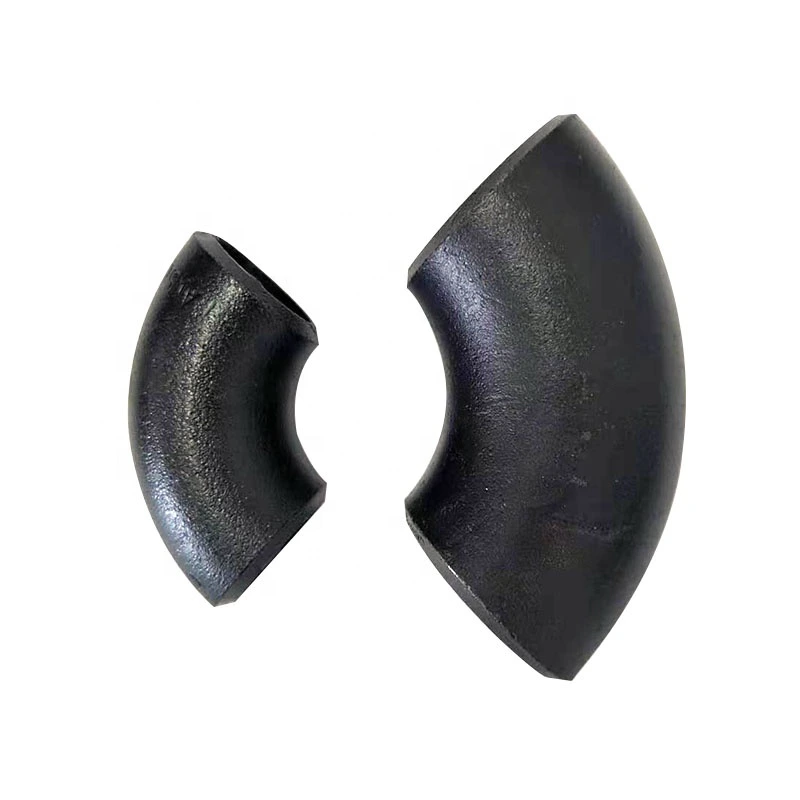

ASME B16.9 Q235 Carbon Steel Pipe Elbow with Seamless Requirement Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM
-
model numberelbow 8201TechnicForged
-
ConnectivityWeldingshapeEqual
-
head codeRoundOverall Length4 in
-
Height6Surface TreatmentPainting
-
PressureLow PressureSystem of Measurementinch
-
Mounting hole diameter0.25 inPipe FeaturesCorrosion-resistant, Flexible
-
Pipe Class150ApplicationAgricultural Irrigation, Automotive Repair, Heating Systems
-
Thread TypesNPT
This pipe elbow page supports an enquiry with Q235 carbon steel, ASME B16.9 and seamless-construction requirements. Treat the material specification, dimensional standard and manufacturing condition as separate points to confirm for the selected fitting. The appropriate elbow also depends on the required turn geometry, pipe connections and service conditions.
Verify the Q235 material specification
Provide the exact material standard and grade designation required by the project, then request confirmation for the elbow being considered. A carbon steel material choice does not establish a particular grade. If Stainless Steel is selected instead, specify its own grade and material standard. Appearance or a general product photograph cannot independently identify the material of the fitting supplied for the request.
Confirm B16.9 and construction independently
State the applicable ASME B16.9 edition and the dimensional requirements that need to be met. Include a seamless-manufacturing requirement explicitly where the project calls for it, and obtain construction confirmation for the same elbow. Naming a dimensional standard does not establish material grade or the manufacturing route. Material and construction records should therefore relate to the exact configuration under review.
Add the missing turn and connection dimensions
Show the required angle, centerline radius, nominal size and center-to-end dimensions on a layout drawing. Give the actual outside diameter and wall at both ends, together with each connection form and preparation. Include the service medium, design pressure and temperature when requesting suitability confirmation. A generic pressure class or corrosion-resistance label does not replace selected-part qualification. Final selection should follow review of the drawing, material specification, construction and service evidence as one complete elbow request.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
