ASME B16.9 Carbon Steel Butt-Weld Reducing Pipe Tee Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM
-
model numbertee 1706TechnicCasting
-
ConnectivityMale/FemaleshapeEqual/Reducing
-
head codeHexagon/RoundOverall Length4.8 in
-
Height7Surface TreatmentPainting
-
PressureLow PressureSystem of Measurementinch
-
Mounting hole diameter0.25 inPipe FeaturesFlexible, Corrosion-resistant, Uv Resistant, Chemical Resistant
-
Pipe ClassNot RatedApplicationpetrochemical industry, Shipbuilding, Construction Engineering, Power Industry
-
Thread TypesNPT
This reducing pipe tee enquiry addresses an ASME B16.9 butt-weld requirement with a carbon steel material request. Identify the main run and smaller branch separately before evaluating the selected fitting. The enquiry needs three connection specifications and the branch relationship, rather than one size label applied to the whole tee.
Describe the main run and smaller branch

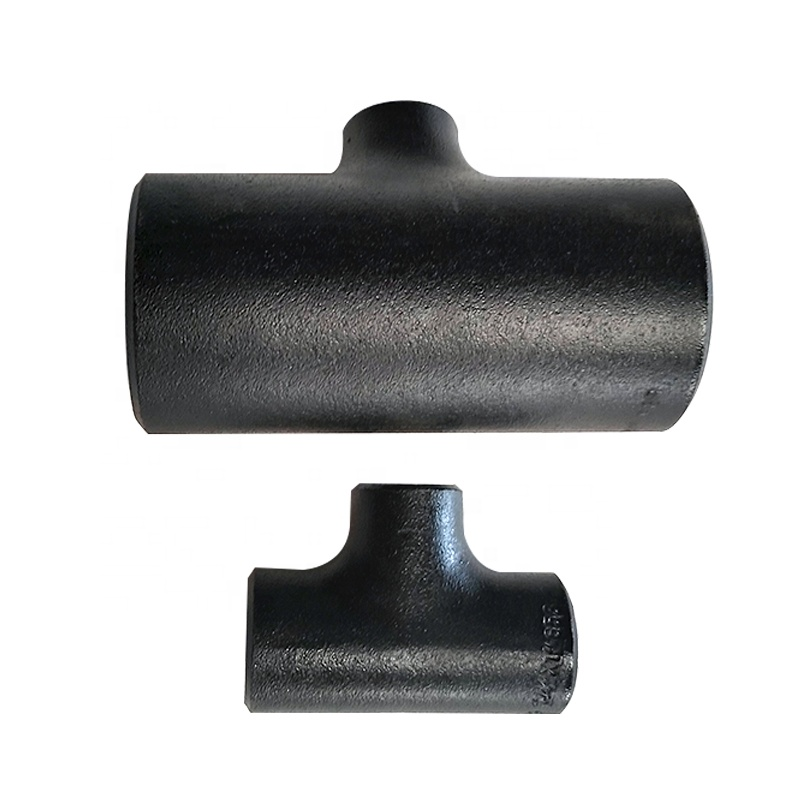

Mark the run direction and branch orientation on the piping drawing. Give the nominal size, actual diameter and wall for each opening, together with the center-to-end dimensions required by the layout. Confirm which port forms the reducing branch and how it relates to the two run ends. General tee images may show different branch proportions, so the selected drawing is needed to establish the actual size relationship.
Check three butt-weld connection requirements
State the required ASME B16.9 edition and end preparation, then request confirmation for all three connections. Compare them with the adjoining pipes and the joining procedure. A general male or female label does not identify the weld-end geometry needed by a specific installation. Keep the wall requirement and end preparation associated with each opening so that the branch and run can be assessed together.
Define the selected material and service conditions
Specify the exact Carbon Steel grade for the enquiry and obtain the corresponding material and construction documentation. A Stainless Steel option needs its own specification. Include the medium, design pressure and temperature when asking for the selected tee's qualification scope. Neither a qualitative pressure label nor a general industry application establishes an operating rating. Before acceptance, confirm the run-to-branch pair, three end dimensions and material scope against the project drawing, then evaluate the proposed branch connection under the stated service conditions.
