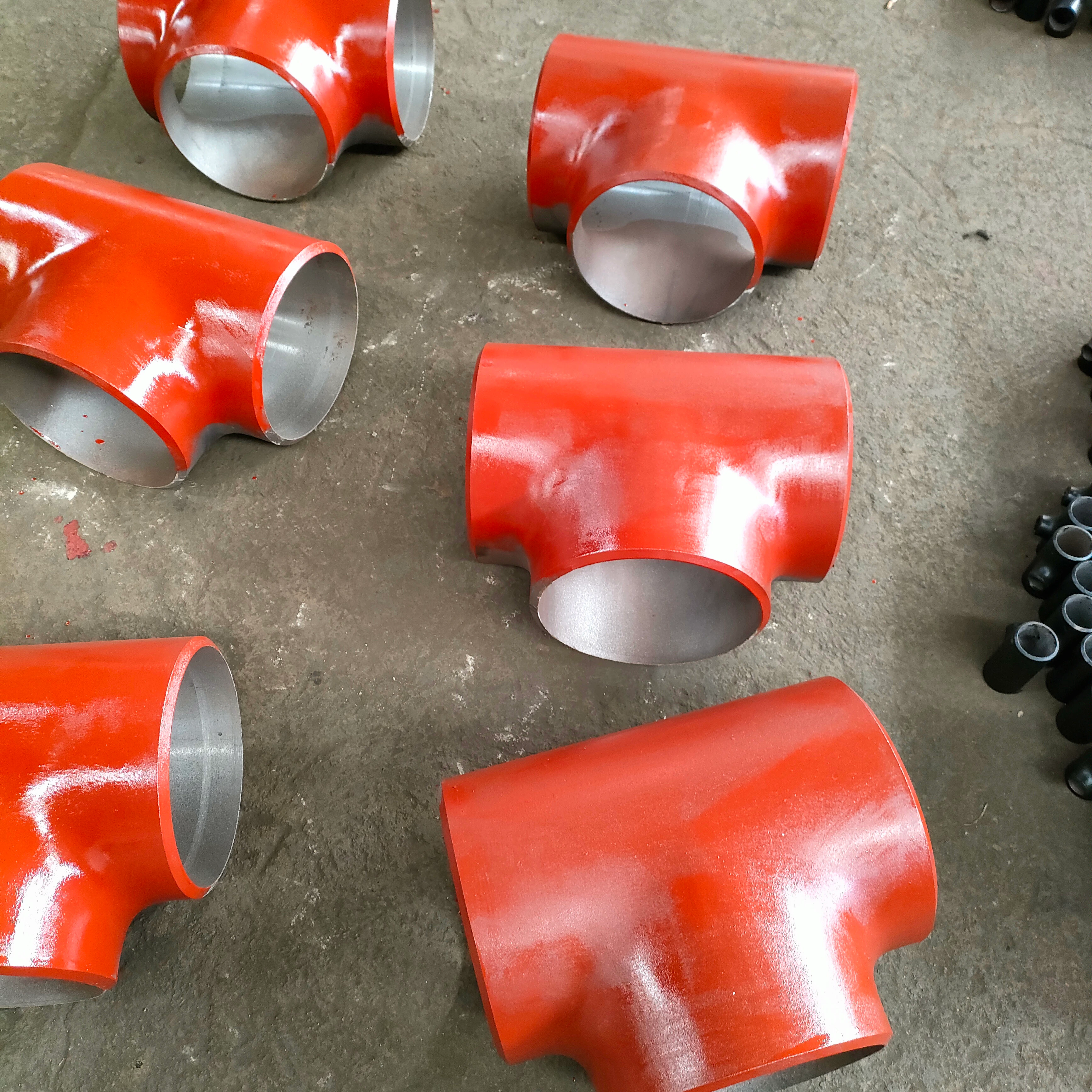

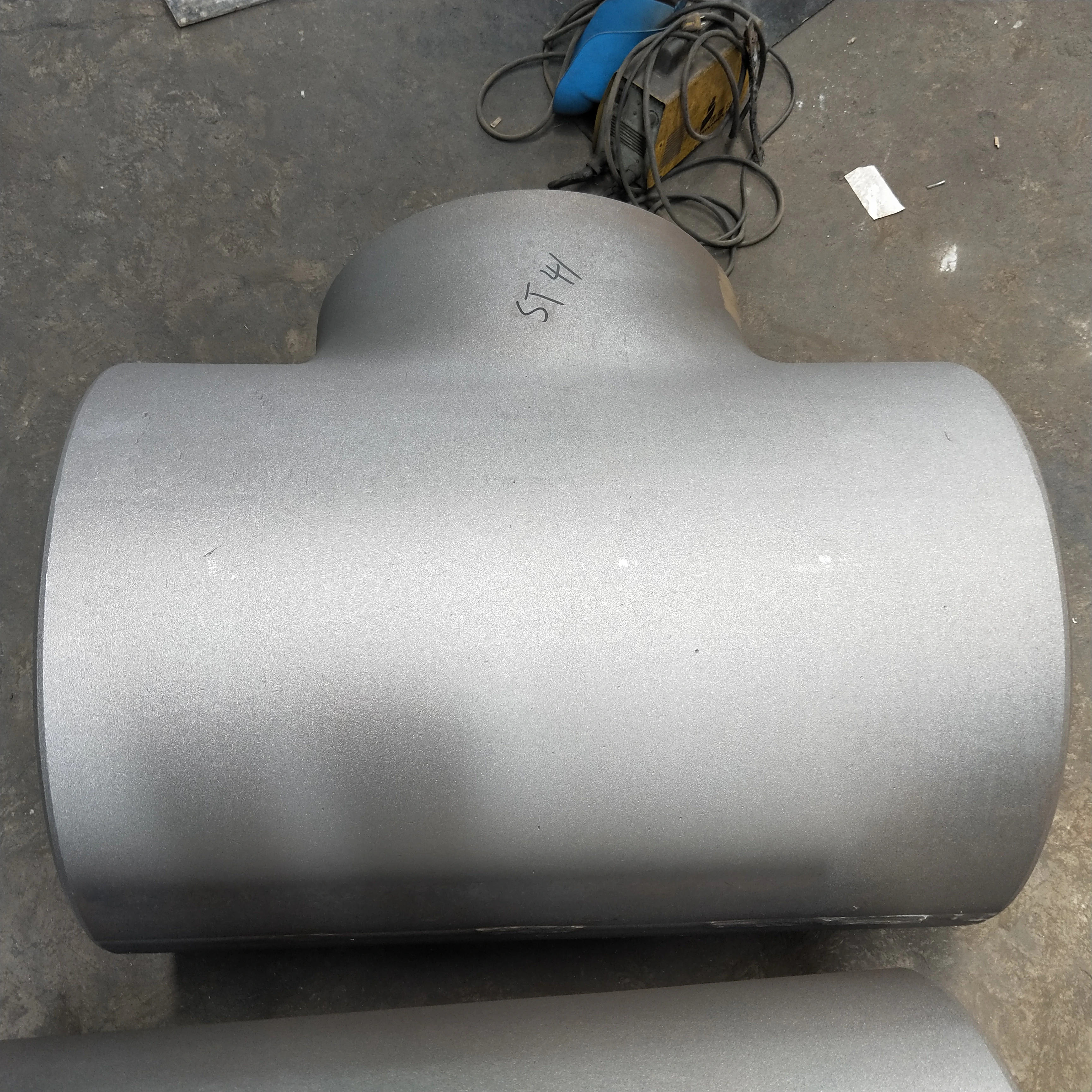

Stainless Steel Equal Butt-Weld Tee for WP304 Enquiries
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
model numbertee 3698TechnicForged
-
ConnectivityFemaleshapeEqual
-
head codeSquareOverall Length4 in
-
Height4Surface TreatmentPainting
-
PressureLow PressureSystem of Measurementinch
-
Mounting hole diameter0.25 inPipe FeaturesFlexible
-
Pipe Class125Applicationpetrochemical industry, Shipbuilding, Construction Engineering, Power Industry, Heating Systems, Automotive Repair, Agricultural Irrigation
-
Thread TypesNPT
An equal butt-weld tee request needs a complete description of three pipe interfaces. Stainless Steel and Carbon Steel are separate choices for this product, so a stainless WP304 requirement should remain attached to the intended material and tee configuration.
Define the two run ends and the branch together
Provide the nominal size and actual pipe dimensions at both run ends and at the branch. Confirm the equal-size arrangement on one tee drawing rather than assuming a single selector label defines all three connections. Include the center-to-end dimensions and any layout restrictions around the branch. The drawing should locate the tee within the pipe route and make each mating interface unambiguous.
Specify the preparation at every butt-weld interface
State the required connection form, wall thickness and end preparation for each pipe connection. If any thread or female-end requirement is intended, identify it separately and obtain confirmation for the requested configuration. A general connection label cannot replace the preparation needed at all three butt-weld ends. Keep those details with the tee geometry so the proposed fitting can be reviewed against the actual pipes entering the joint.
Confirm WP304 and the applicable tee standard
For a stainless A403 WP304 requirement, identify the material specification and grade explicitly and request confirmation for the selected tee. State any ASME B16.9 requirement with the applicable edition and dimensional scope. The Carbon Steel choice needs its own grade specification and should not inherit the stainless requirement. Include the medium, design conditions and documentation needed to assess the same tee arrangement before a pressure capability or exact standard match is accepted.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
