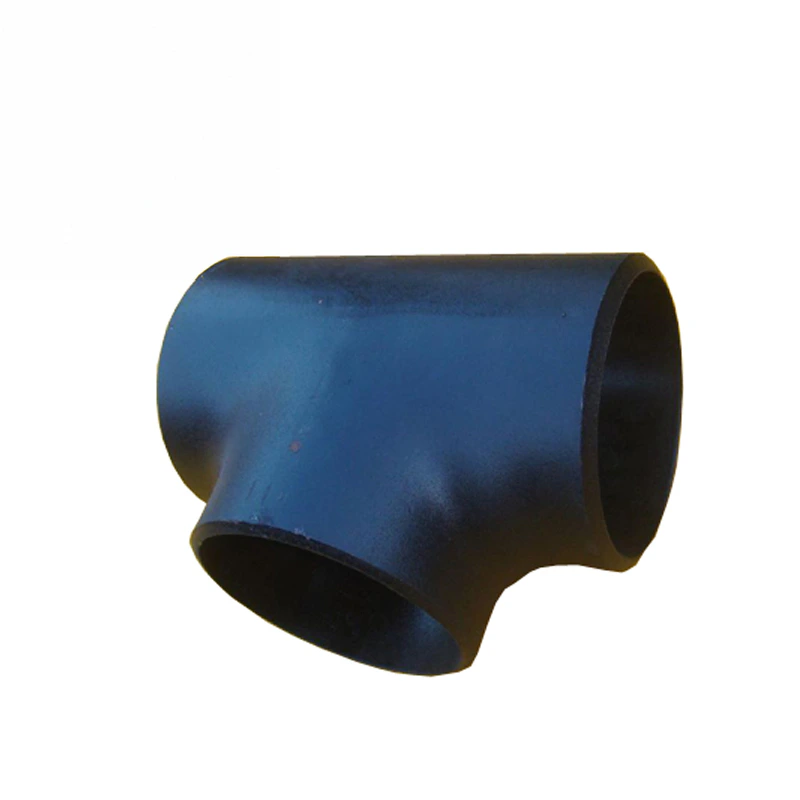

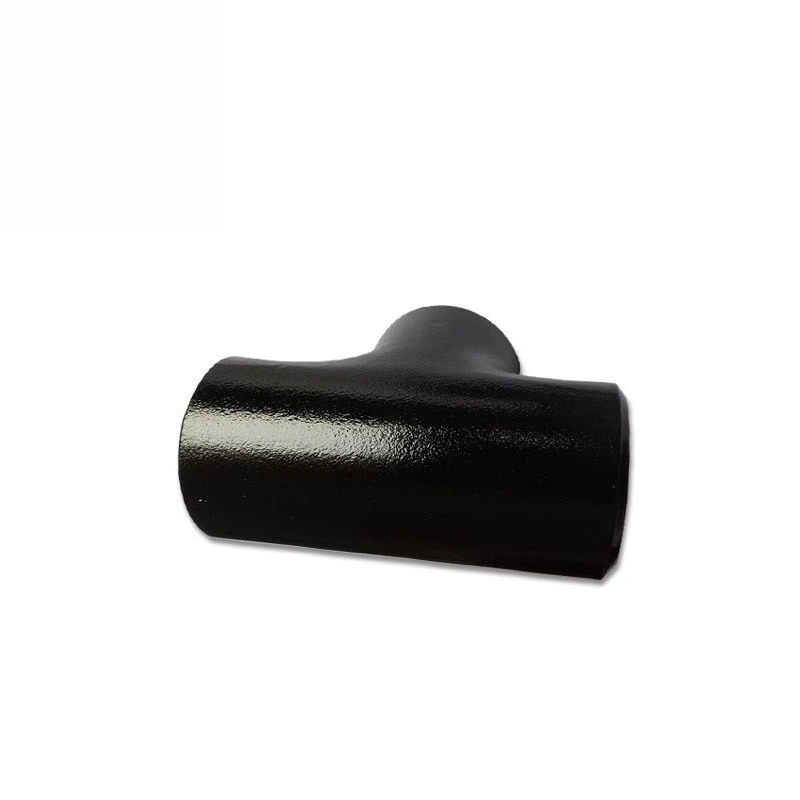

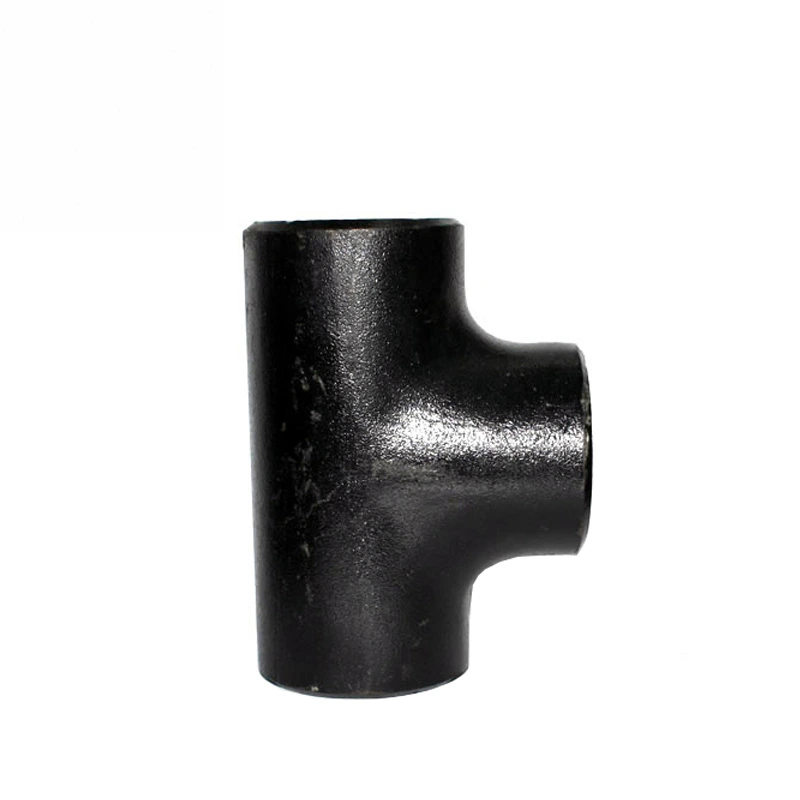

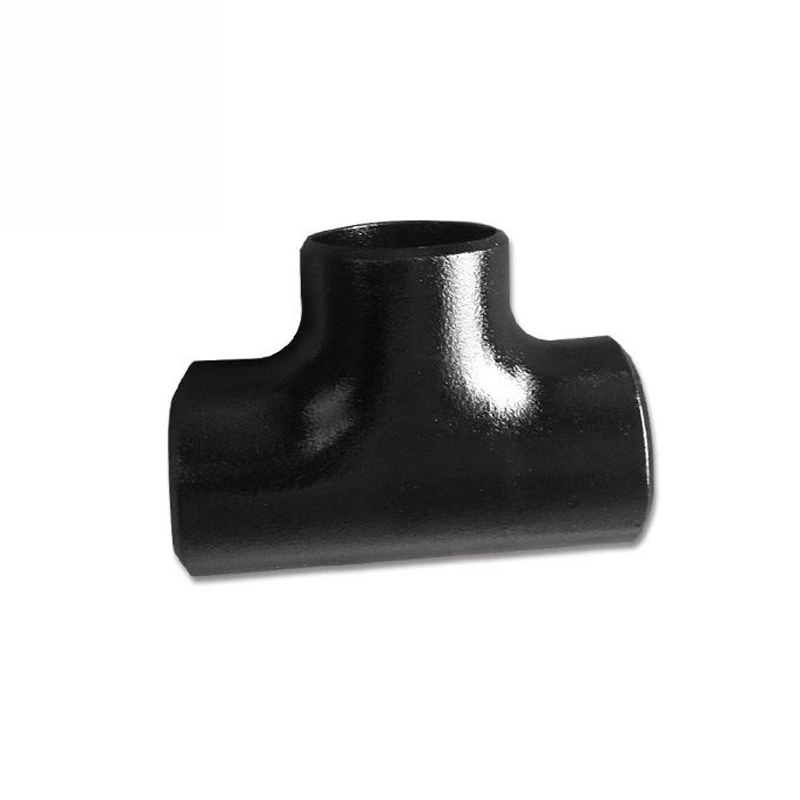

ASME ANSI DIN JIS 10-Inch STD SCH20 SCH40 SCH80 Pipe Tee Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM
-
model numberTee 1/2"--24"TechnicForged Casting
-
ConnectivityWeldingshapeEqual
-
head codeRoundOverall Length4 in
-
Height4Surface TreatmentPainting
-
PressureLow PressureSystem of Measurementinch
-
Mounting hole diameter0.25 inPipe FeaturesFlexible
-
Pipe Class125ApplicationAgricultural Irrigation, Automotive Repair, Heating Systems
-
Thread TypesNPTNamePipe Fitting Equal Tee
-
MaterialCarbon Steel Stainless Steel Alloy SteelStandardANSI JIS DIN ASME
-
Size1/2' ~ 48'ColorCustomized Color
-
PackingWooden CasePaymentTT LC
-
ThicknessSTD XS SCH40 SCH80BrandSHENGTIAN
-
Delivery Time7--20 days
This page supports a ten-inch pipe tee enquiry with a specified standard and wall requirement. Choose TEE as the fitting type before defining the configuration. The available choices also include other fitting families, so the component type must be clear before a size or material selection can describe the intended tee.
Choose the tee configuration first

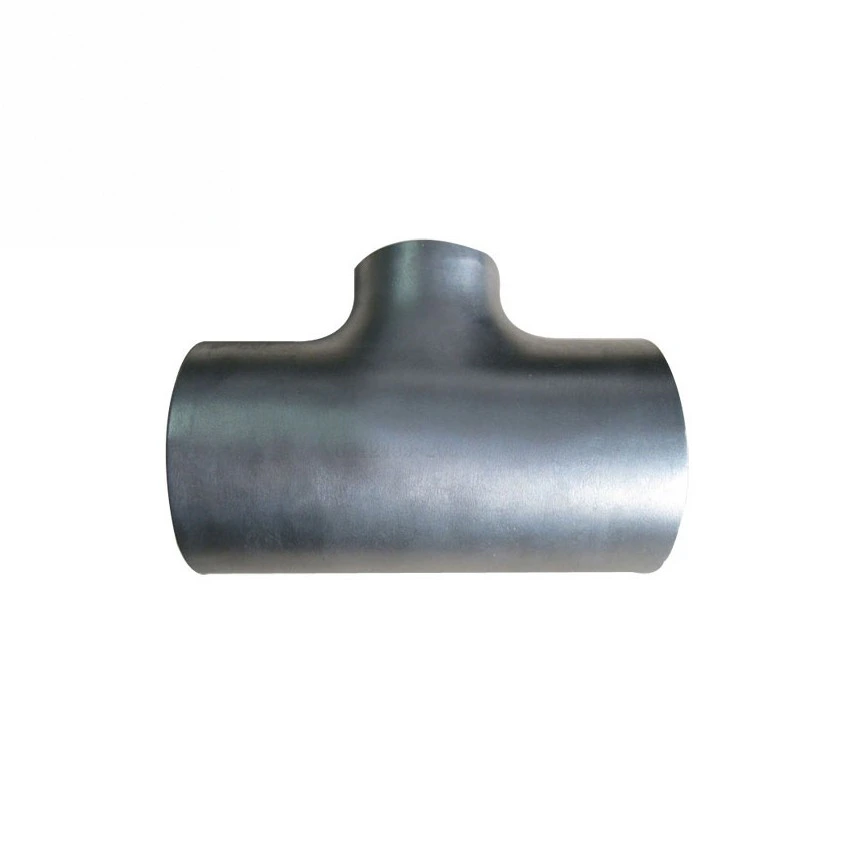

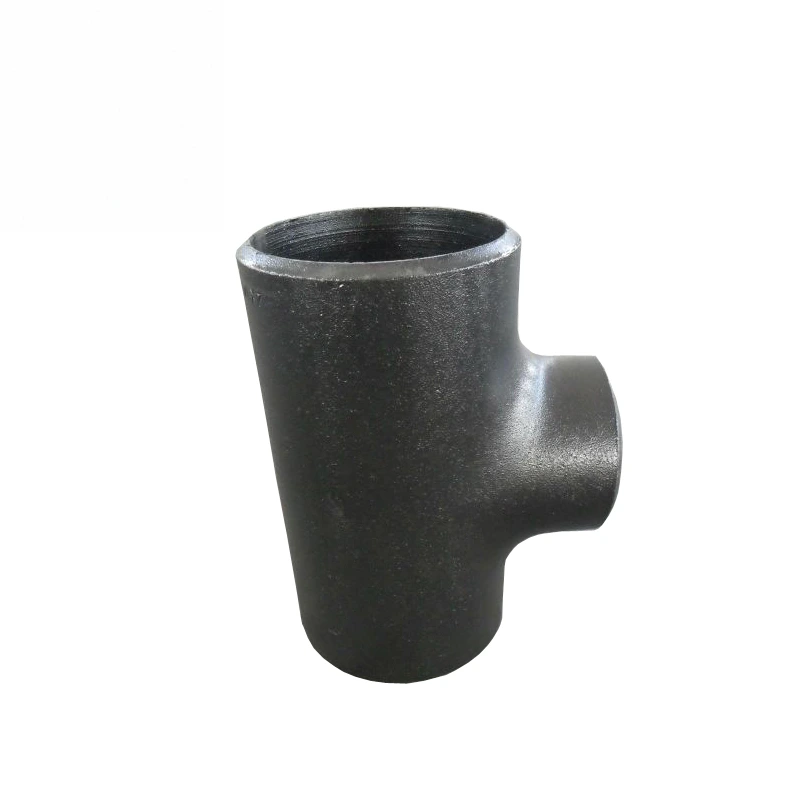

An elbow, cap, coupling, cross, flange or nipple is a different component from a tee. For a branch connection request, identify TEE explicitly and provide a drawing of the required arrangement. Confirm whether the branch is equal or reduced, then give the size at each run end and at the branch. A single size label does not describe the complete three-ended geometry.
Name one governing standard and wall requirement
State the exact standard number and edition required by the project. ASME, ANSI, DIN and JIS names should not be treated as interchangeable dimensional specifications. Select the required wall designation, whether a standard wall description or a particular schedule, and confirm its meaning under that specification. Provide the nominal size, actual outside diameter and wall at each end rather than assuming the ten-inch requirement is represented by every selectable dimension.
Complete the material and connection specification
Choose Carbon Steel, Stainless Steel or Alloy, then state the precise grade and material specification. Identify the connection form, mating pipe wall and any weld preparation for each end. Include design pressure, temperature and the service medium so that the selected tee can be assessed as a complete configuration. Ask for material, dimensional and construction confirmation before accepting standard compliance or a service rating. These details make the enquiry specific to the tee needed for the piping layout.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
