45-Degree Smooth Forged Welding Pipe Elbow for Low-Pressure Enquiries

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This 45-degree forged welding-elbow enquiry addresses a specified change of pipe direction. Confirm the actual supplied material and connection before approving a selected item. The carbon steel option and mixed material wording require an exact material certificate for the order.

Measured bend geometry and a chosen nominal size

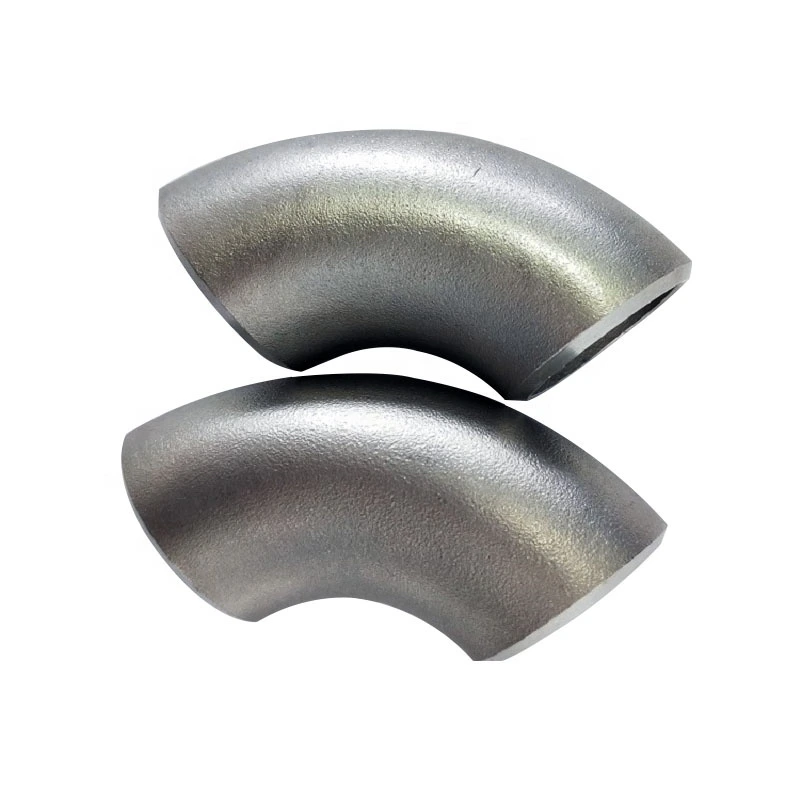

Provide the required 45-degree angle, centreline radius, centre-to-end dimensions and installation clearance on a drawing. No measured radius, long-radius multiplier or schedule is established. Dark and bright gallery examples illustrate curved pieces without qualifying the selected angle, alloy or wall.

The half-inch to 12-inch option is a range label rather than one nominal size or proof of every intermediate size. Specify exact nominal pipe designation, outside diameter, wall thickness and both-end dimensions. Repeated range entries under length, height and mounting-hole diameter do not measure those features or supply a usable elbow drawing.

Actual material and welding or thread preparation

Obtain the exact material specification, grade and traceability. Neither bright appearance nor markings on a dark example establish stainless alloy or WPB for the supplied item. Confirm actual end design independently: welded ends need preparation, bevel, wall match and inspection, while threaded ends need the complete NPT designation, gender and engagement.

FORGED requires selected manufacturing records and does not establish a seamless route. Smooth does not define measured roughness or a coating. Corrosion-resistant wording needs evidence for the actual material, finish and exposure rather than acceptance from appearance.

Duty evidence for an unrated elbow

Pipe Class Not Rated provides no pressure rating, and Low Pressure supplies no numerical working-pressure limit. State medium, pressure, temperature, wall design and connected piping requirements. Request material/process records and dimensional/end inspection with the selected drawing. Construction Engineering is an application reference; assess the actual elbow against the documented installation before accepting it for service.
