45 and 90-Degree Steel Pipe Elbow Material Enquiries
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
model number2TechnicForged
-
ConnectivityWeldingshapeEqual
-
head codeHexagonOverall Length4 in
-
Height3Surface TreatmentPainting
-
PressureLow PressureSystem of Measurementinch
-
Mounting hole diameter0.25 inPipe FeaturesFlexible
-
Pipe ClassNot RatedApplicationAgricultural Irrigation, Automotive Repair, Power Industry, Heating Systems, Shipbuilding, Construction Engineering, petrochemical industry
-
Thread TypesNPTSizeCustomized Size
-
Product nameElbow

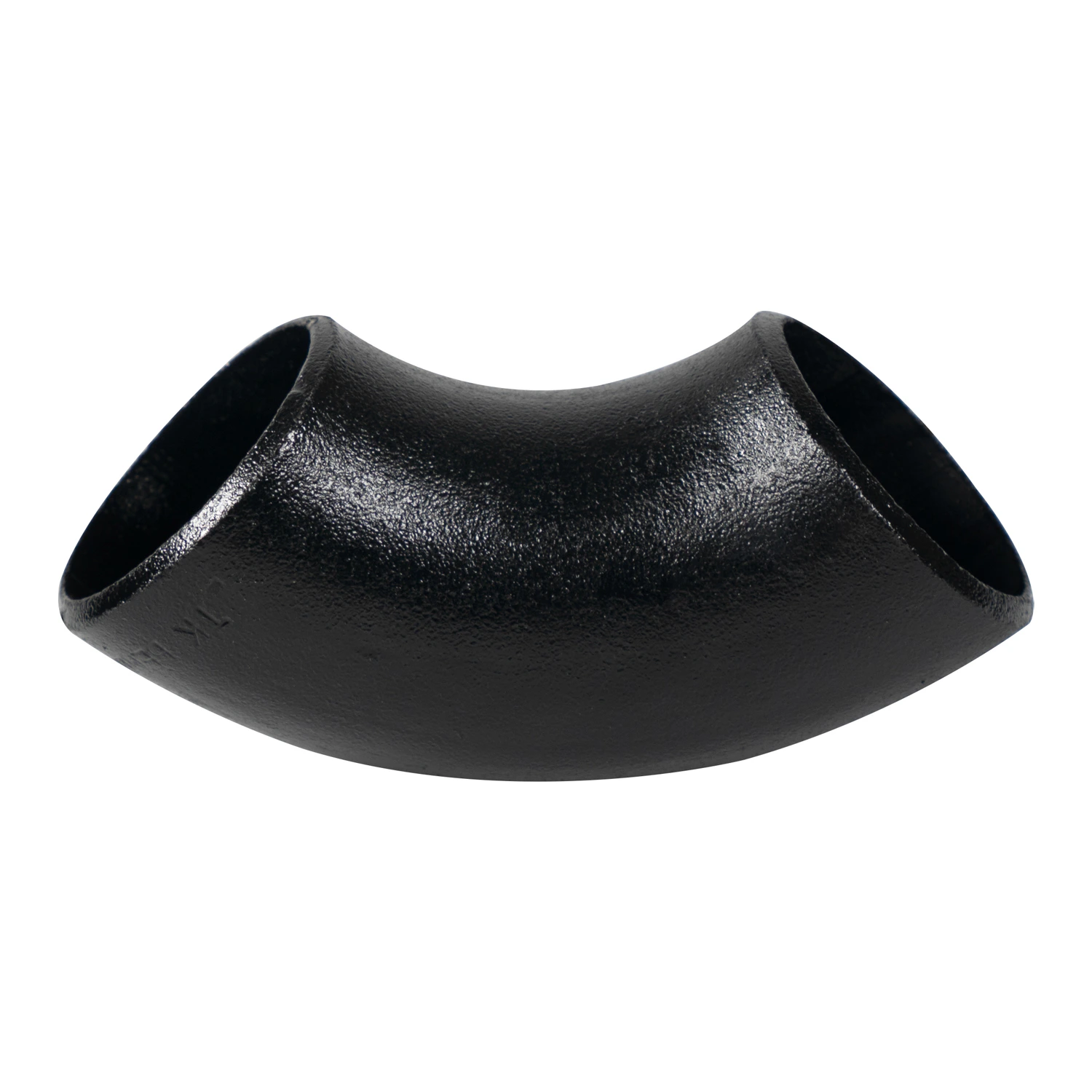

A pipe route may call for a 45-degree or a 90-degree elbow, but the required turn must be selected explicitly. This product has Stainless Steel, Alloy and Carbon Steel choices; confirm the angle for the intended material and size rather than assuming both turns are supplied for every selection.
Choose one turn angle for the route position
Mark the required elbow angle and centerline radius on the piping layout, with the adjoining pipe directions shown. Include the end positions and any space restrictions around the turn. A reference photograph of a curved fitting does not establish its measured angle or radius. Confirm the requested geometry as one arrangement so the elbow is reviewed for the specific change of direction needed in the route.
Check both elbow ends against their mating pipes
Provide the end sizes, wall thickness and connection specification at each pipe interface. Identify any welding preparation or thread requirement separately and obtain confirmation for the selected configuration. A single size choice cannot define the full end arrangement, and a general equal-end description does not replace actual dimensions. The elbow drawing should link the route angle to both mating connections rather than leaving the end details to assumption.
Request a service rating for the selected elbow
Name the material grade and any construction requirement that applies to the project, with the medium and design pressure and temperature included. An unrated class descriptor supplies no operating limit, so obtain the applicable rating for the proposed material, wall and geometry. Identify the inspection or material documentation needed for that review. The final angle-specific elbow enquiry should bring route, ends and grade together before service suitability is accepted for the part.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
