90° / 45° Stainless Steel Pipe Elbow Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.2 in
-
Pipe Class1000SizeCustomized Size
-
Product nameElbow
This stainless steel pipe elbow enquiry includes ninety-degree and forty-five-degree title alternatives. Actual variants select size and broad material without an angle option. Choose one required bend angle and confirm its assignment to the offered elbow through a drawing; neither angle is established for every variant by the title or gallery.
Assign the required angle to the selected elbow

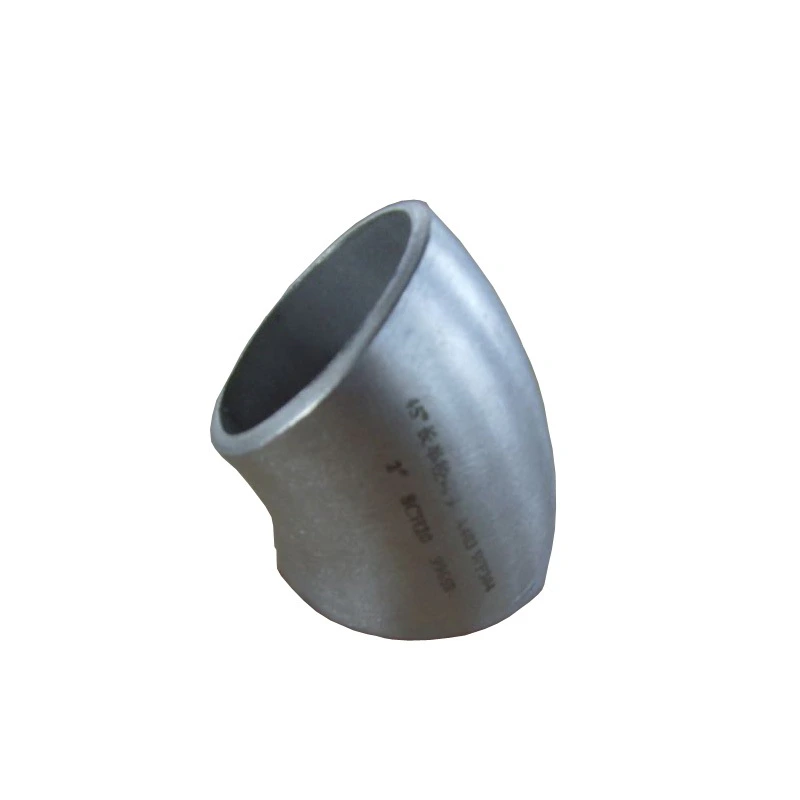

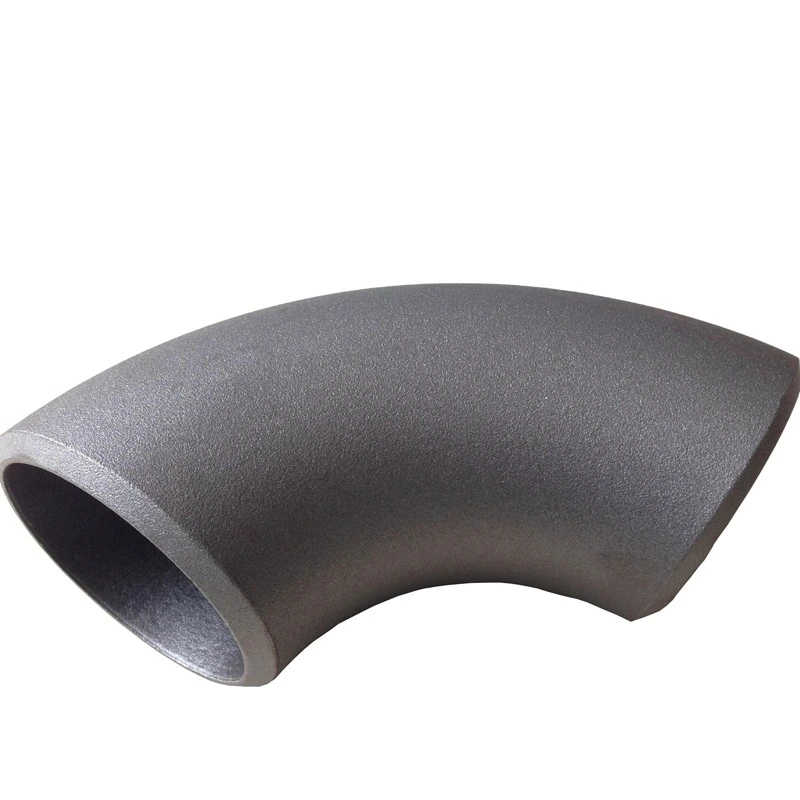

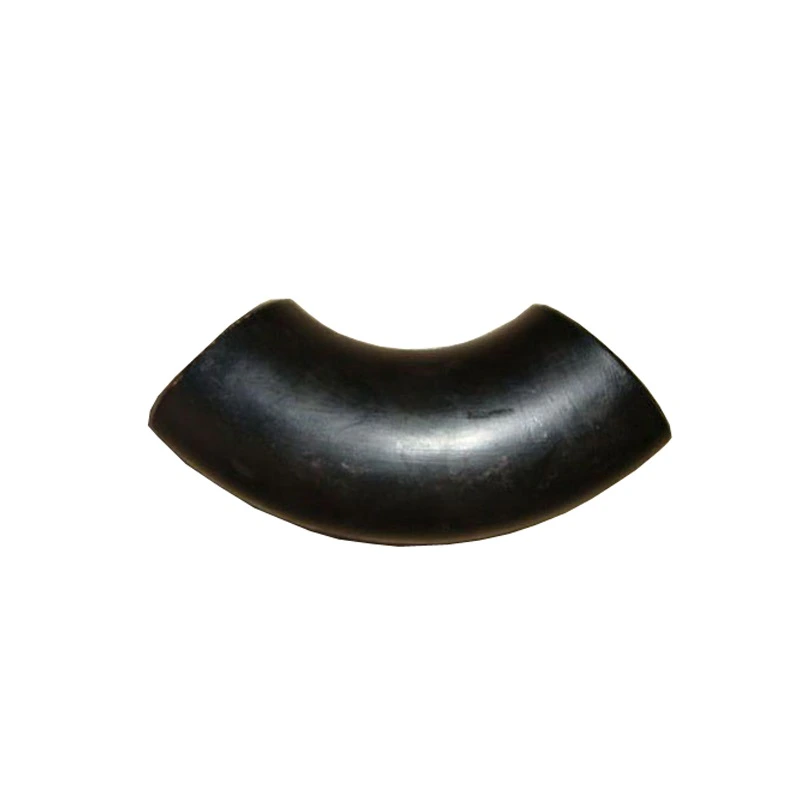

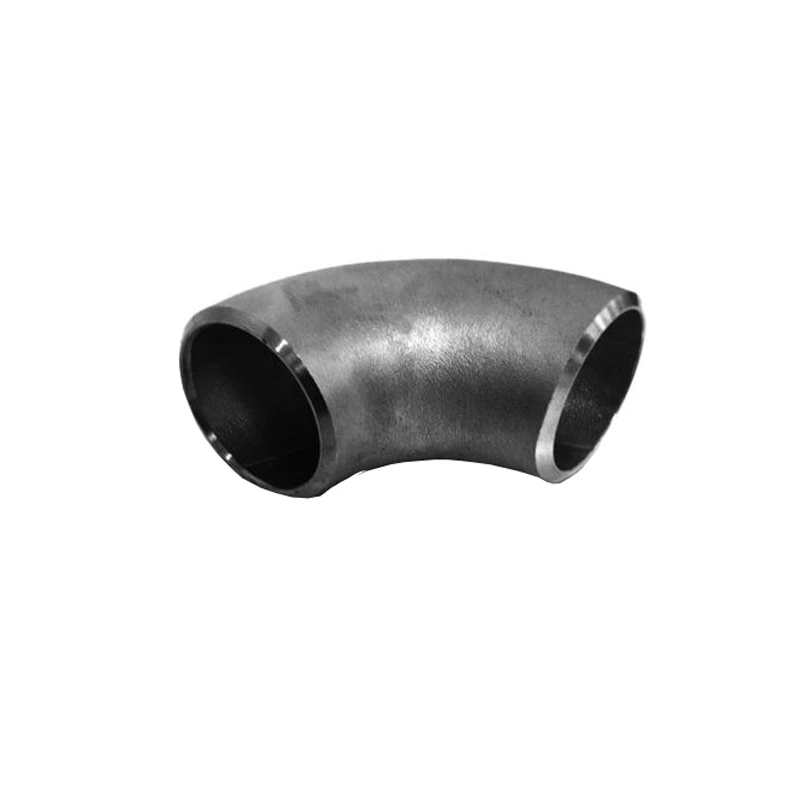

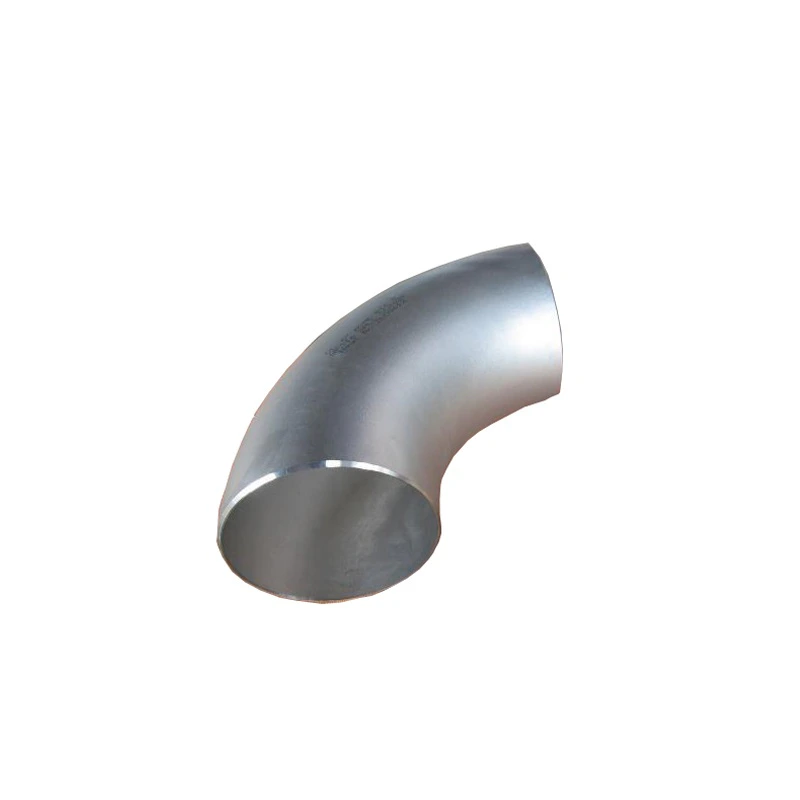

Define angle tolerance, centreline radius, centre-to-end dimensions and orientation within the installation envelope. Ask how the chosen ninety- or forty-five-degree bend corresponds to the selected variant. Photographs show differently curved fittings but cannot measure or qualify that assignment. Confirm both end diameters and actual walls, including the Equal relationship. The generic Hexagon and mounting-hole fields do not establish bend geometry.
Map the size menu and exact stainless material
Explain what each millimetre option measures and how it maps to nominal size or actual pipe diameter. Identify a wall designation for the selected size rather than inferring a schedule. Choose Stainless Steel for the title's enquiry and request its full specification, exact grade and traceable records. Alloy and Carbon Steel alternatives need separate material and joining assessment. No specific stainless grade is stated. Agree the applicable dimensional standard, edition and inspection requirements.
Check welding, finish and the complete directional joint
Define end preparation, alignment and joining inspection with both adjoining pipes. Verify the Forged entry through actual production evidence and clarify coating and weld-zone condition beyond Painting. Establish the standard and unit basis of Pipe Class 1000 before interpreting service capability. Supply fluid, pressure, temperature, corrosion and bend loads for complete assembly assessment. Customized Size does not prove an offered dimension; base acceptance on the chosen angle, actual material and walls, and documented joining requirements.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
