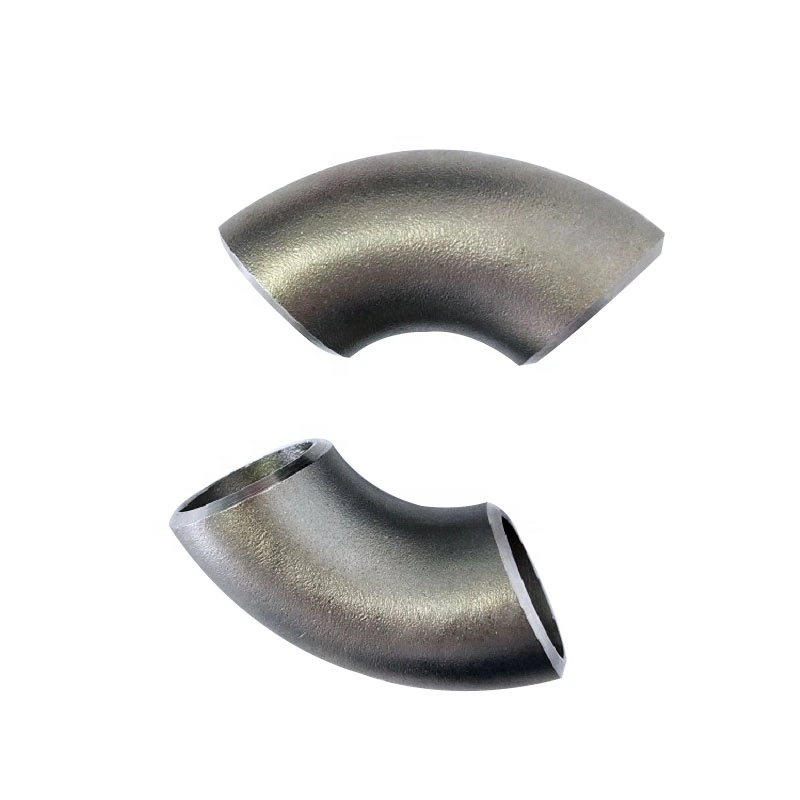

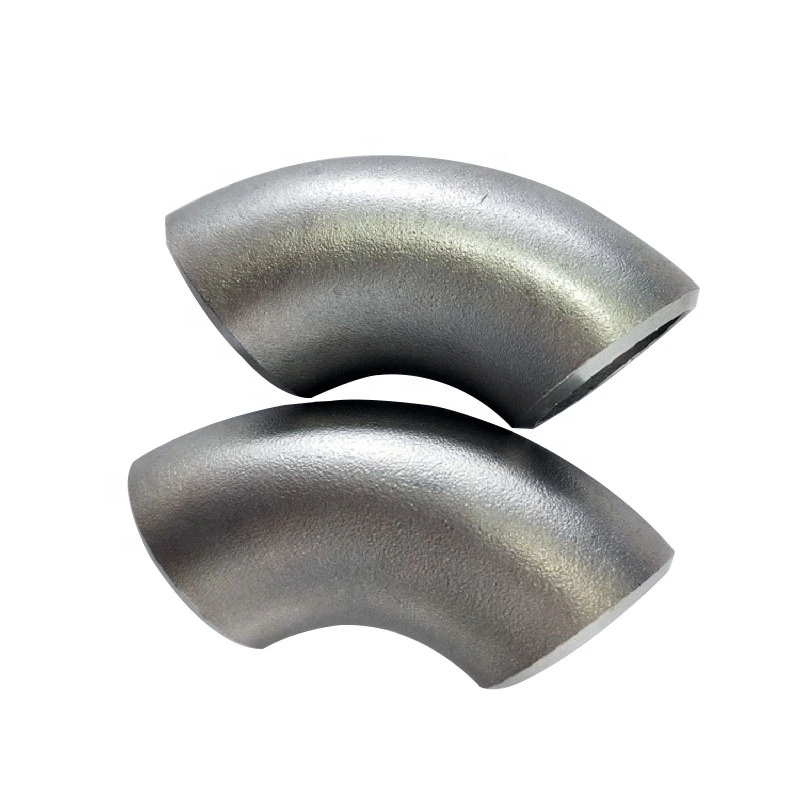

Large-Size Seamless Stainless Steel 90-Degree Pipe Elbow Enquiry

• warranty

  1 Year
  customized support

  OEM, ODM
• model number

  elbow 3623
  Technic

  Casting
• Connectivity

  Female/Male
  shape

  Reducing
• head code

  Round
  Overall Length

  4 in
• Height

  6
  Surface Treatment

  Painting
• Pressure

  Low Pressure
  System of Measurement

  inch
• Mounting hole diameter

  0.25 in
  Pipe Features

  underground rated, No additional Features, Uv Resistant, Chemical Resistant, Corrosion-resistant
• Pipe Class

  Not Rated
  Application

  petrochemical industry, Shipbuilding, Construction Engineering, Power Industry, Heating Systems, Automotive Repair
• Thread Types

  NPT

This pipe elbow enquiry concerns a large-size 90-degree layout with stainless steel and seamless construction requirements. Replace the general size description with the actual pipe dimensions needed by the installation. Confirm the selected turn, material and construction before assessing the fitting against the available space and adjoining connections.

Quantify the large-size requirement

Provide the required nominal pipe designation, actual end diameters and wall dimensions. Show both pipe centerlines and identify the available installation envelope. Request the selected elbow's angle, centerline radius and center-to-end dimensions so clearance can be checked directly. A broad large-size description does not establish a particular available diameter, and a general size label cannot describe the complete turn geometry.

Request selected-part construction evidence

Name the exact Stainless Steel material requirement and specify whether the project requires seamless construction. Ask for the relevant material and construction documentation for the selected configuration. Carbon Steel choices require a separate grade and assessment. Appearance alone cannot establish how an elbow was made or which material specification it meets, even when a photograph resembles the required pipe turn.

Check the ends and service conditions together

Identify the size and connection preparation at each end, including whether the installation needs equal or reducing ends. Compare the selected drawing with the adjoining pipes and joining procedure. Include the medium, pressure and temperature when requesting qualification for the actual material and construction. A qualitative pressure or application label does not define the operating scope. Before acceptance, review the quantified size, 90-degree geometry, installation envelope and material records together, then confirm that both pipe interfaces belong to that same selected elbow.
