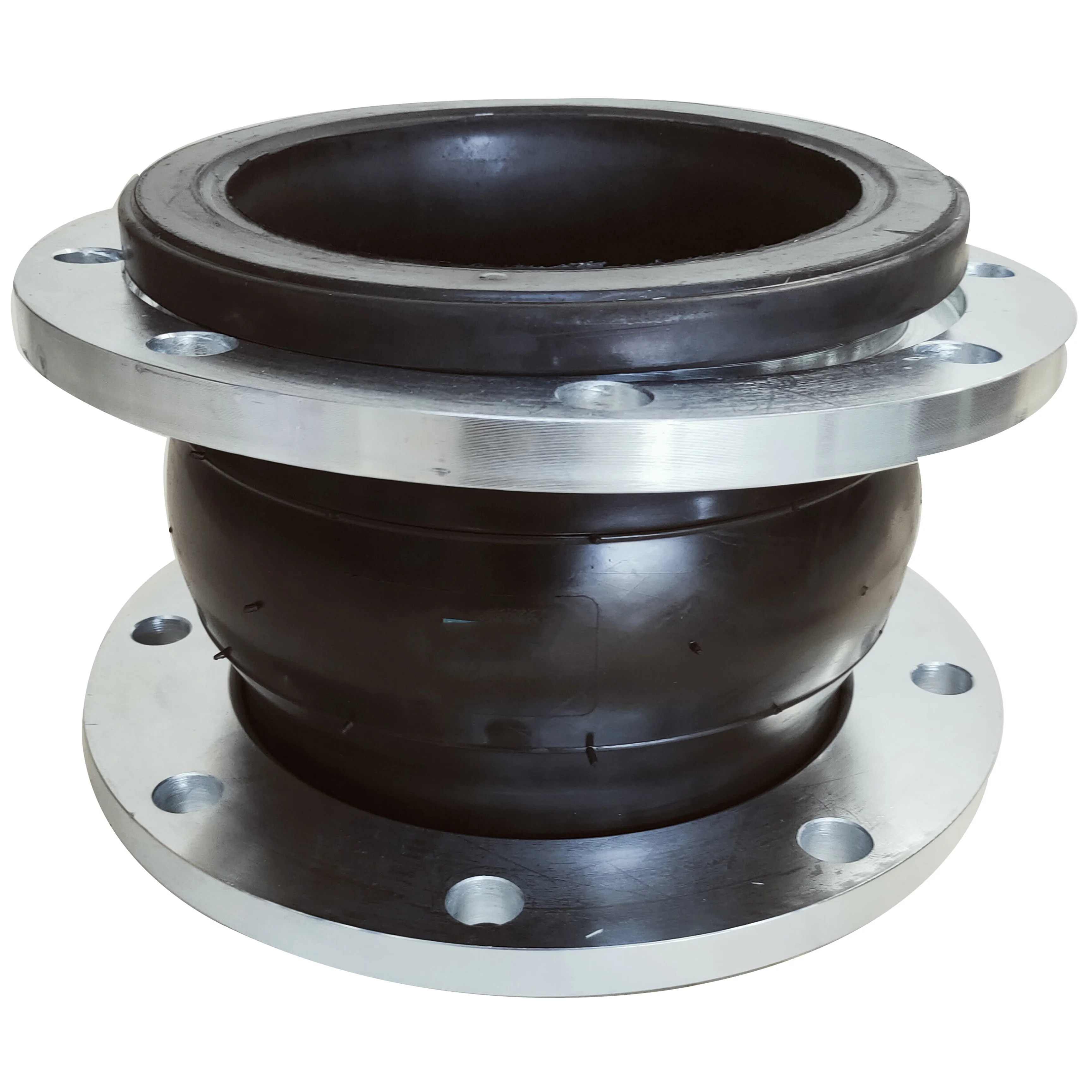

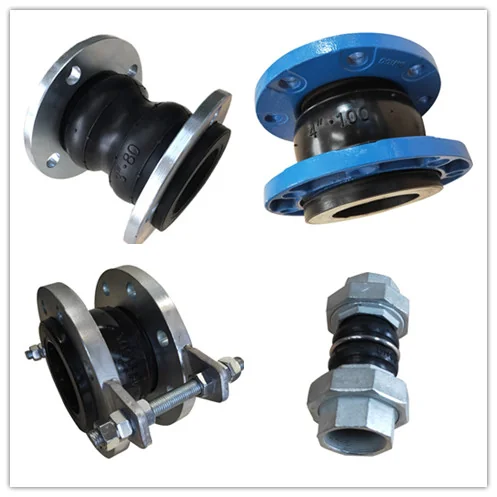

Galvanized Steel Gimbal Compensator JIS Standard Flexible Rubber Connection Expansion Joint
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
model numberN-RJTechnicForged
-
ConnectivityFlangeshapeEqual
-
head codeRoundSurface TreatmentCleaning Supplies
-
Mounting hole diameterAccording to requirementsPipe ClassNot Rated
-
Applicationwater supply and drainage systemsProduct nameCompensator JIS Standard flexible rubber connection Expansion Joint
-
Working Pressure6-40bars(PN6-PN40)Working Temperature-15℃-80℃(-30℃-150℃)
-
Test pressure1.5 times of working pressureExplosion pressure2 times of working pressure
-
Applicable mediaAir,water,sewage,acid,oil,etc.Nominal diameterDN25-DN3000
-
Flange materialCarbon steel galvanized,Stainless steel etc.Rubber materialNR,EPDM,NBR etc.
-
Flange StandardDIN,ANSI,JIS etc.
