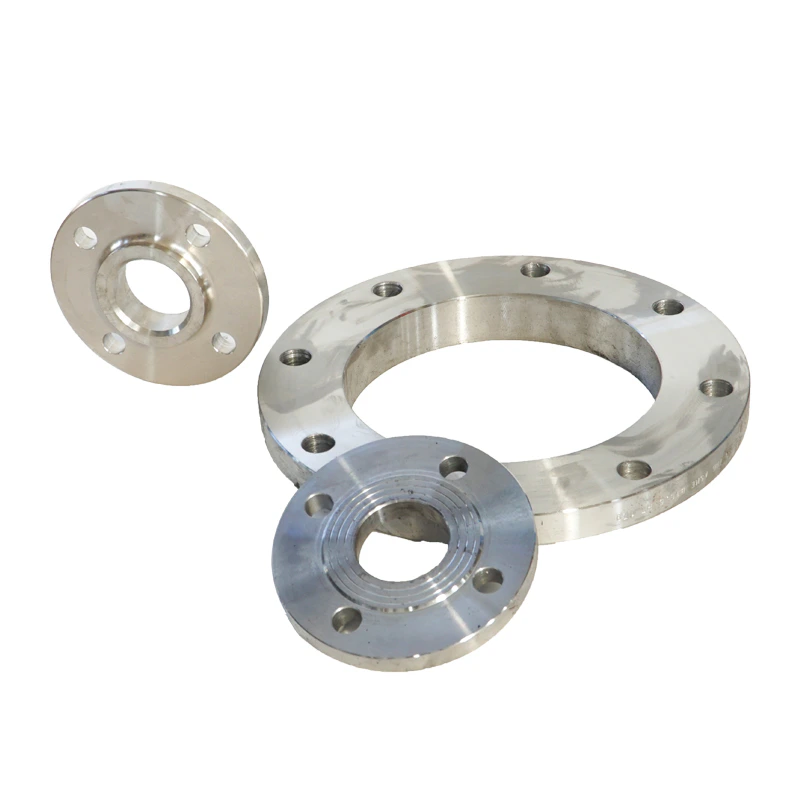

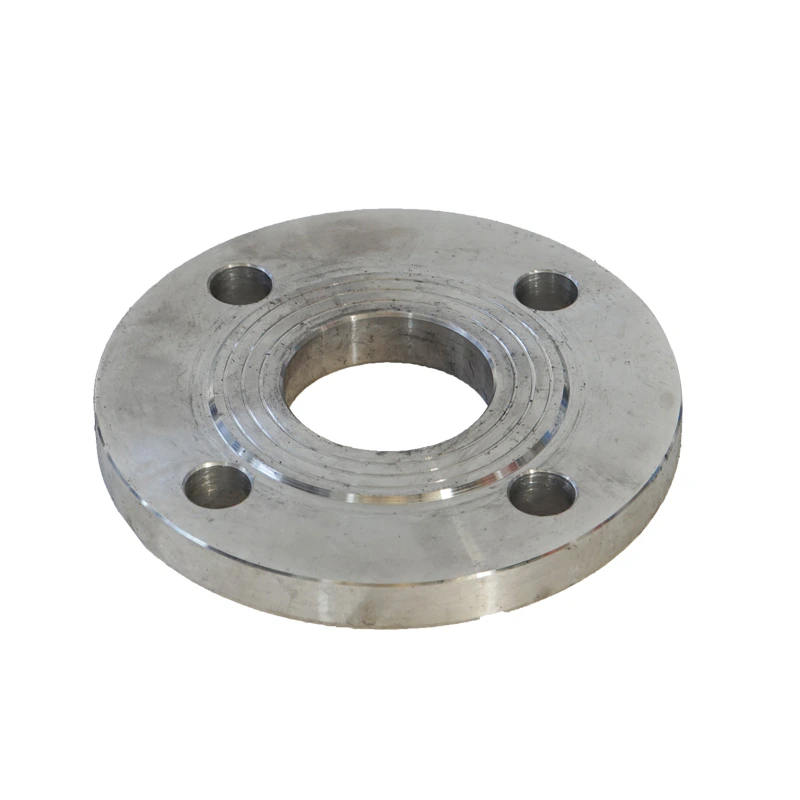

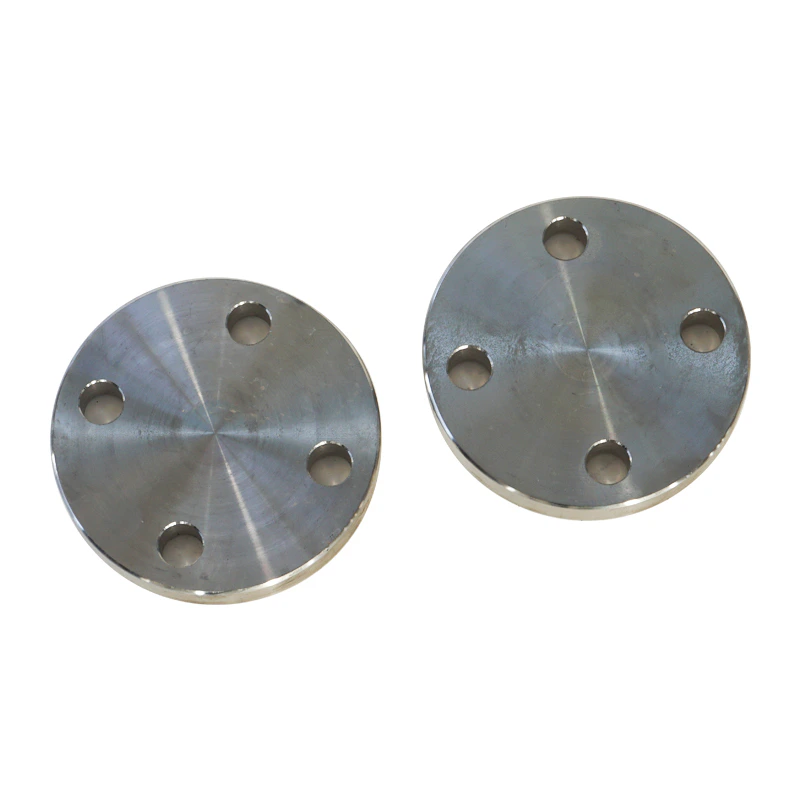

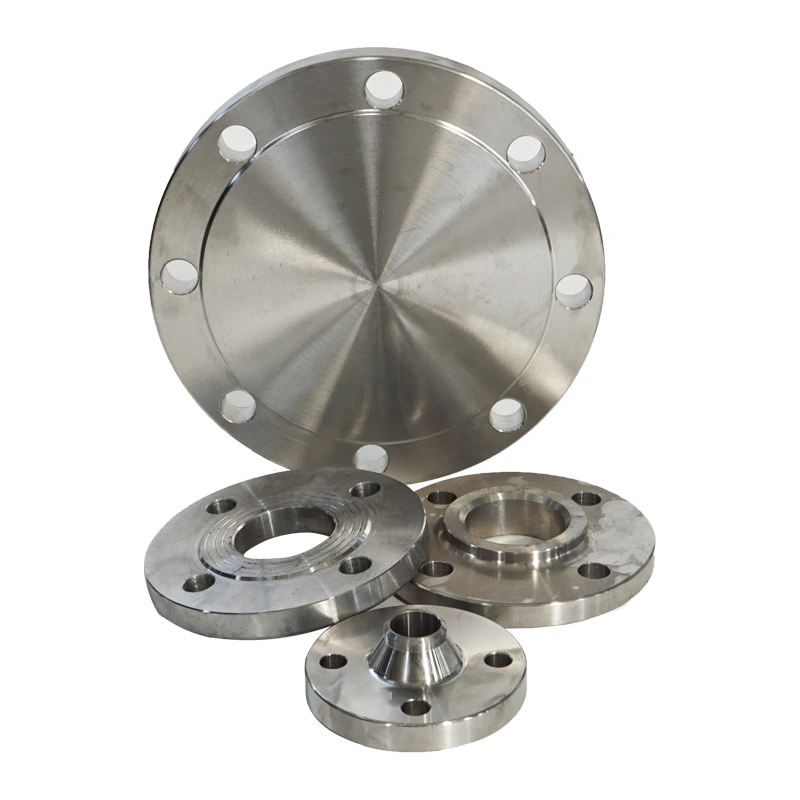

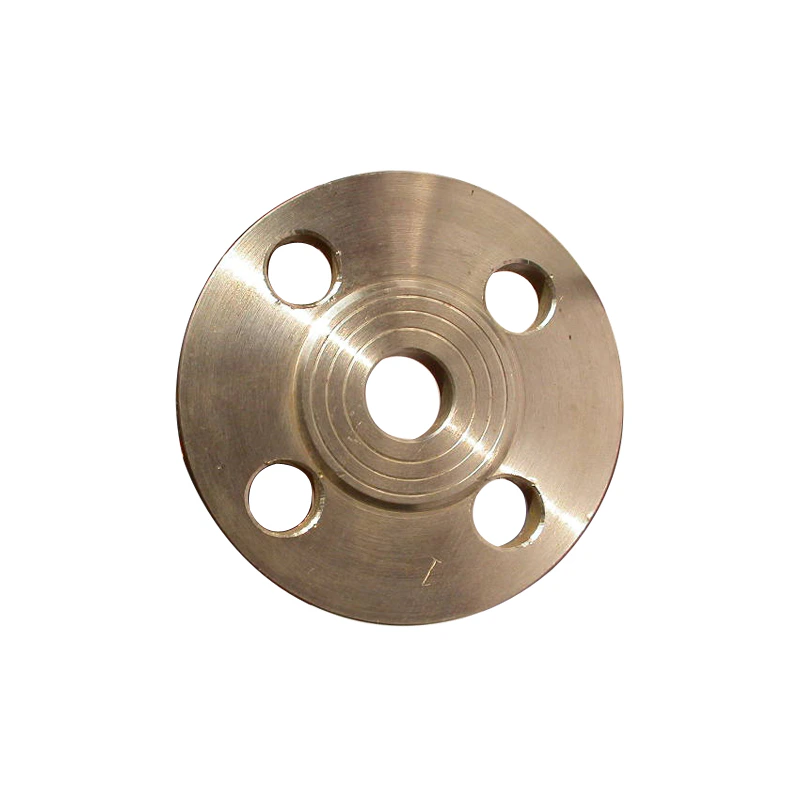

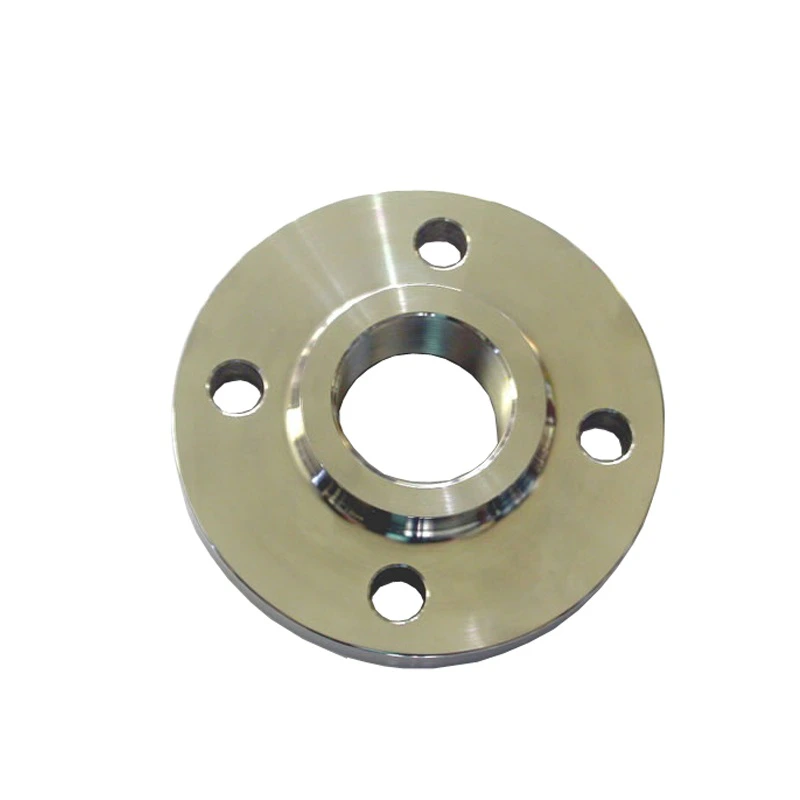

Forged Stainless Steel 304/316L B16.5 Pipe Flanges, Class 150–2500
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentSmoothMounting hole diameter0.25 in
-
Pipe Class150SizeCustomized Size
-
Product nameElbow
This pipe fitting enquiry is presented as forged stainless 304/316L B16.5 flanges with Class 150–2500 wording. Confirm the actual selected fitting type, material document and one required class before matching a flange assembly to its intended joint.
Verify the material document and chosen grade
304 and 316L are alternative stainless requests, not qualifications of the Alloy or Carbon Steel selections. Obtain the actual material specification, selected grade and heat-traceable certificate. The ASTM A355 LF2 wording requires exact document and grade verification; do not assume another standard or an equivalent designation.
Forged requires selected production and inspection records. Gallery brightness or markings cannot establish alloy or conformity. Include the required document editions and acceptance criteria with the material enquiry.
Select one class and a complete mating drawing
Identify the applicable B16.5 document associated with the ANSI wording. Class 150–2500 describes enquiry designations rather than continuous working pressure; confirm one selected class and its material-temperature basis. Pipe Class 150 alone does not define the complete joint rating.
Obtain nominal size, bore, outside diameter, thickness, bolt circle, hole pattern and tolerances. Five millimetre labels need nominal mapping; mounting-hole diameter 0.25 in is insufficient for drilling acceptance. Customized Size requires an agreed drawing. Define actual flange construction, facing, pipe interface and preparation rather than assigning a version from photographs.
Specify sealing-face finish and joint acceptance
Smooth does not establish measured roughness or a qualified sealing face. State finish and inspection criteria, compatible mating flange, gasket and bolting. For welded supply, confirm preparation and matching wall. Assess the selected assembly with actual medium, pressure, temperature and governing design requirements. Include actual fitting type, exact certificate, chosen class, full face/interface drawing and operating conditions with the enquiry.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
