Carbon Steel Butt-Welding Concentric Reducer | ASTM Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.26 in
-
Pipe Class150SizeCustomized Size
-
Product nameElbow

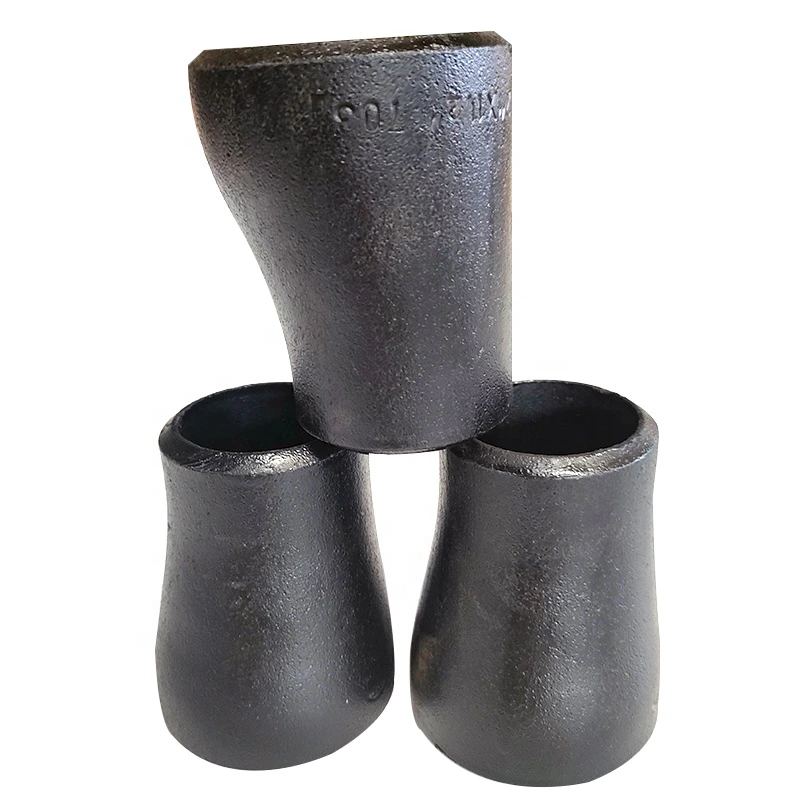

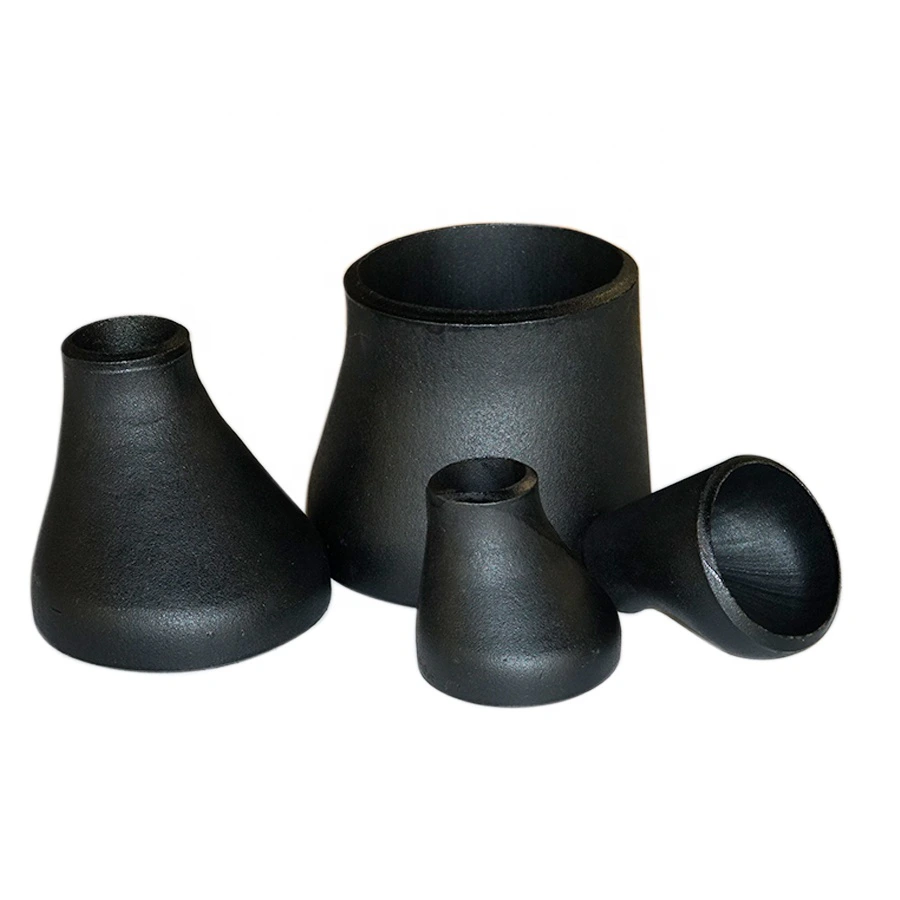

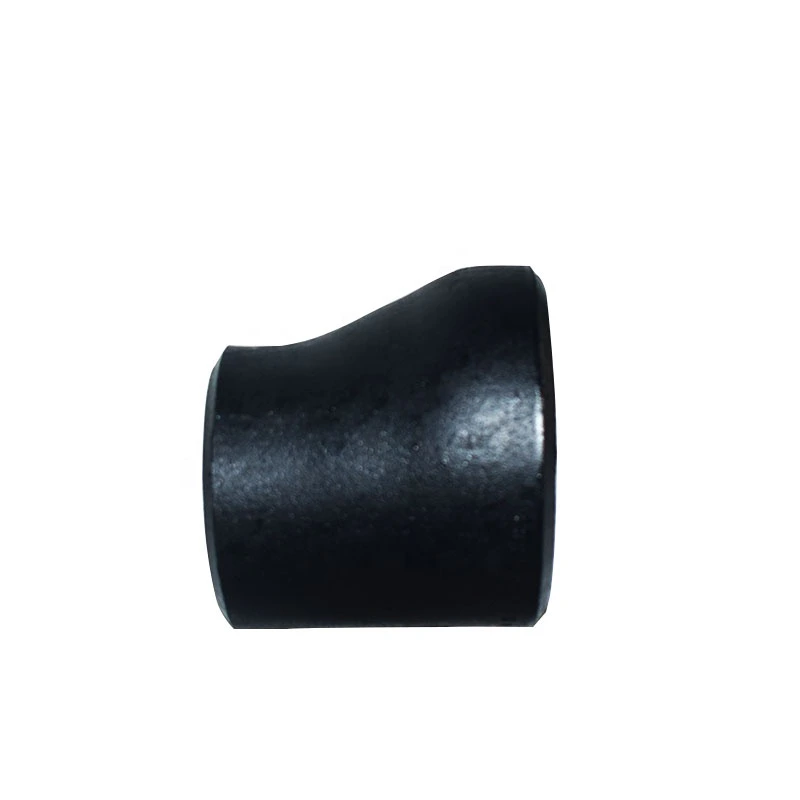

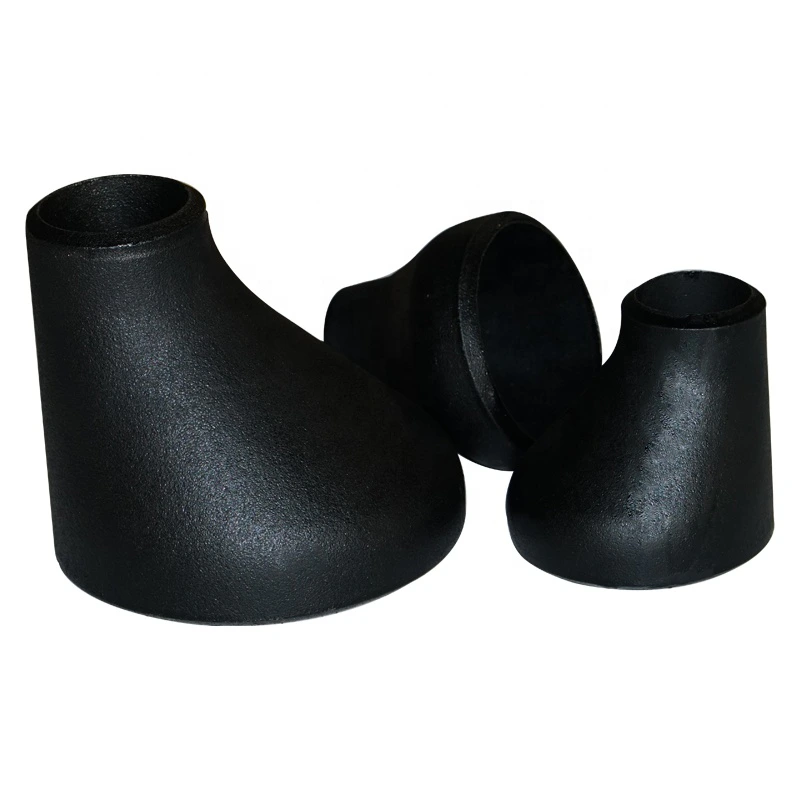

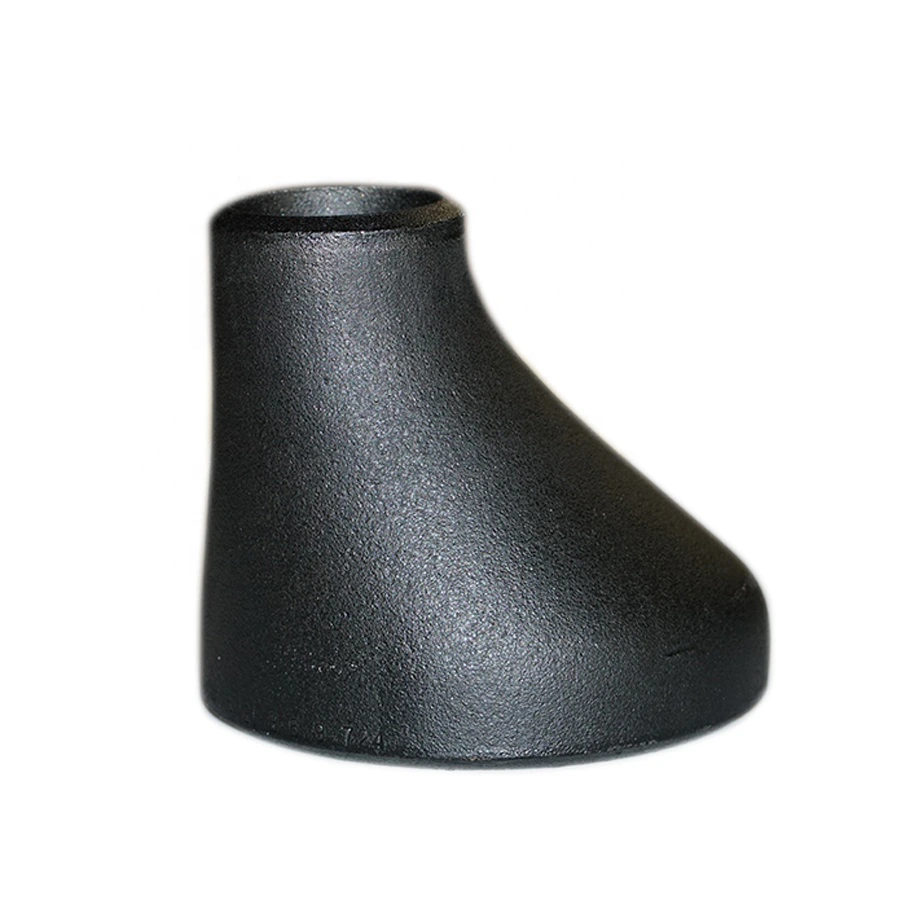

This carbon-steel butt-welding reducer enquiry focuses on a concentric transition between two pipe sizes. The reducer variants and transition photographs support the family. To select an actual model, connect the requested centreline alignment and both pipe ends to a drawing, then identify the complete material and standard requirements behind the listing's generic ASTM reference.
Draw the transition between the two pipe ends
State both nominal sizes, outside diameters and wall thicknesses, and explain what the millimetre options measure. Request transition length, centreline alignment and weld preparation on a selected section drawing. The different photographed profiles cannot confirm concentric geometry for every choice. An Equal field does not define the required reducing size pair. Check the envelope and adjoining pipe alignment against the intended installation; the head-code and mounting-hole labels cannot replace measured transition and end dimensions.
Identify the full standard and material records
Select carbon steel and obtain the exact grade and material specification. Stainless-steel and Alloy alternatives require independent grade assignments. ASTM without a specification number does not establish a complete acceptance reference, so agree full material and dimensional standards and applicable editions. Request traceable production and inspection evidence before accepting Seamless or Forged wording as verified construction. Neither a dark surface nor a tapered shape can establish grade or manufacturing route.
Confirm surface and transition-joint acceptance
Define coating preparation, coverage and required weld-area condition rather than relying on Painting alone. Supply mating-pipe specifications, fluid, pressure, temperature and corrosion conditions and agree joining and inspection requirements for both interfaces. Pipe Class 150 does not establish allowable duty, while Customized Size does not confirm capability or availability for an arbitrary end pair. Acceptance should link one alignment and end-size drawing to matching material, standard, manufacturing and complete-joint records.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
