Carbon Steel Butt Weld SCH40 Seamless Equal Tee for Oil Piping
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM
-
model numberTee 1/2"--24"TechnicForged Casting
-
ConnectivityWeldingshapeEqual
-
head codeRoundOverall Length4 in
-
Height4Surface TreatmentPainting
-
PressureLow PressureSystem of Measurementinch
-
Mounting hole diameter0.25 inPipe FeaturesFlexible
-
Pipe Class125ApplicationAgricultural Irrigation, Automotive Repair, Heating Systems
-
Thread TypesNPTNamePipe Fitting Equal Tee
-
MaterialCarbon Steel Stainless Steel Alloy SteelStandardANSI JIS DIN ASME
-
Size1/2' ~ 48'ColorCustomized Color
-
PackingWooden CasePaymentTT LC
-
ThicknessSTD XS SCH40 SCH80BrandSHENGTIAN
-
Delivery Time7--20 days
The focus of this enquiry is a carbon steel butt-weld SCH40 seamless equal tee for oil piping. The actual choices also include elbows, caps, couplings, crosses, flanges and nipples. Select the intended fitting before applying tee-specific dimensions or wall requirements.
Equal tee selection within mixed fitting choices

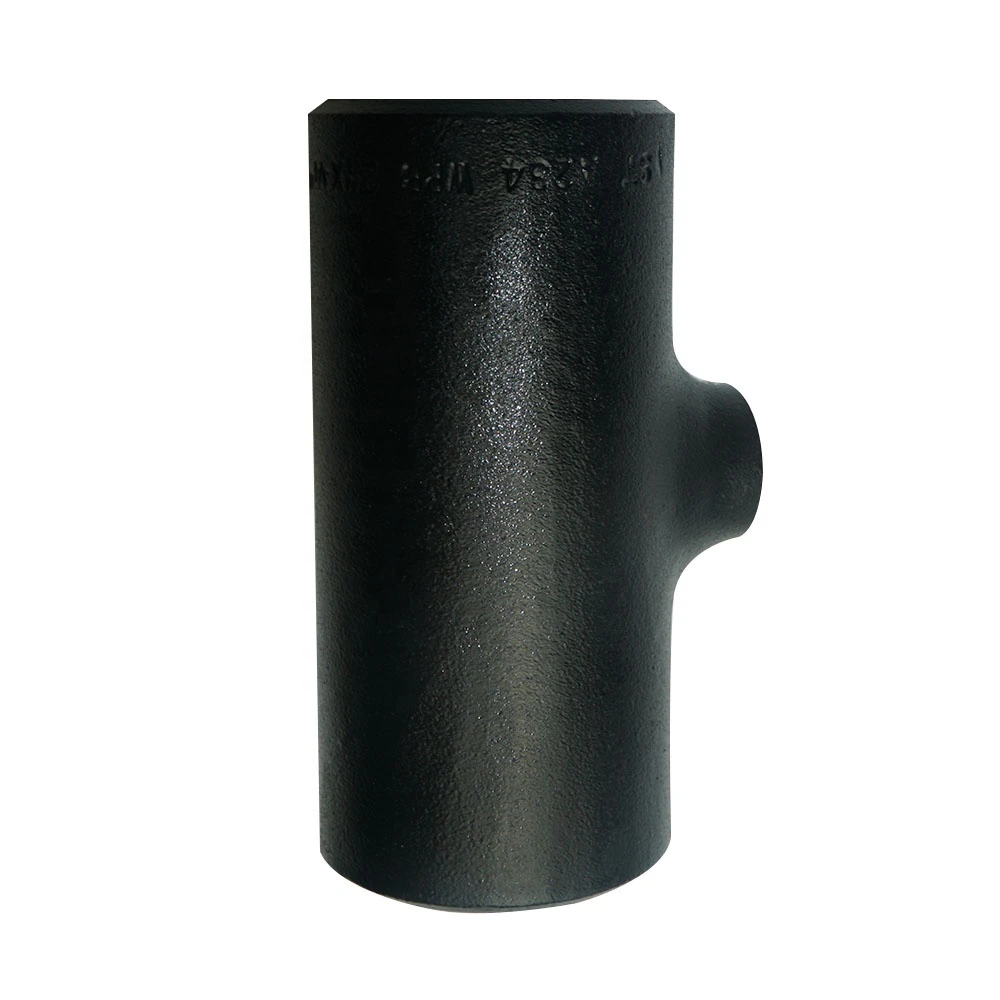

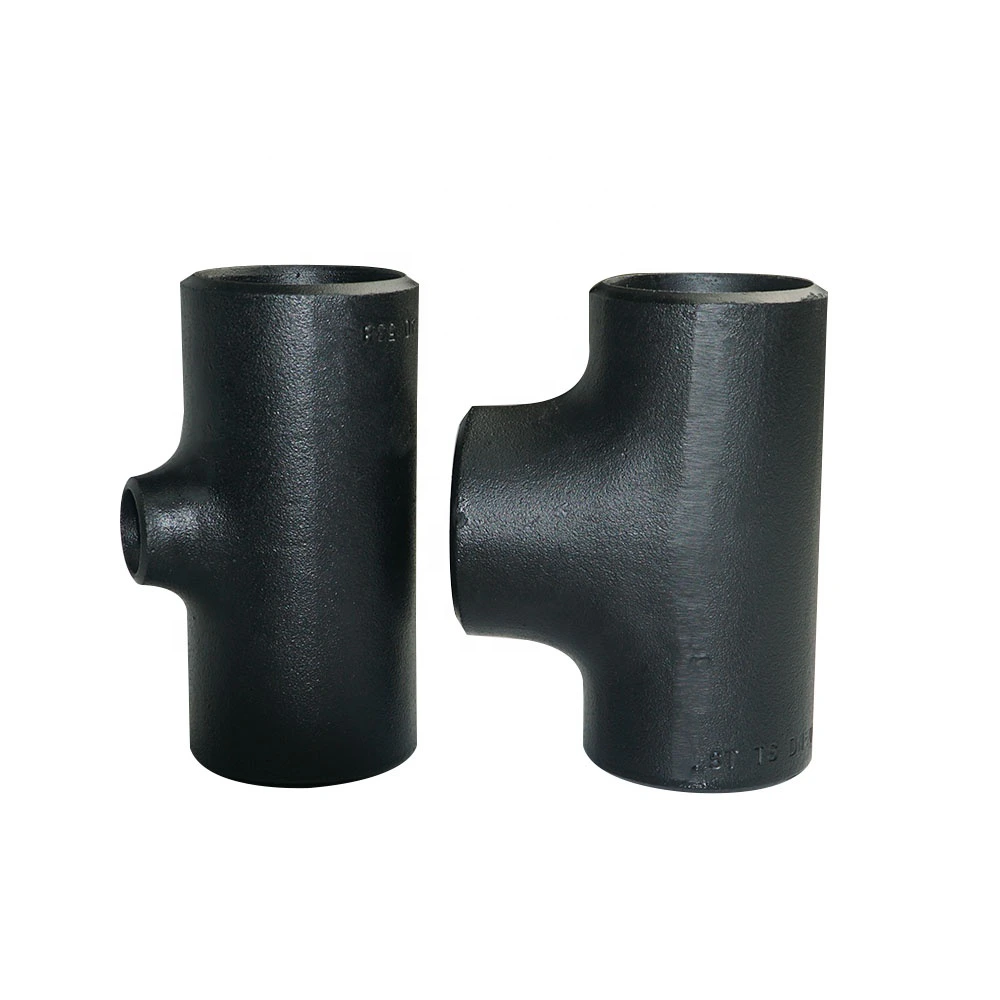

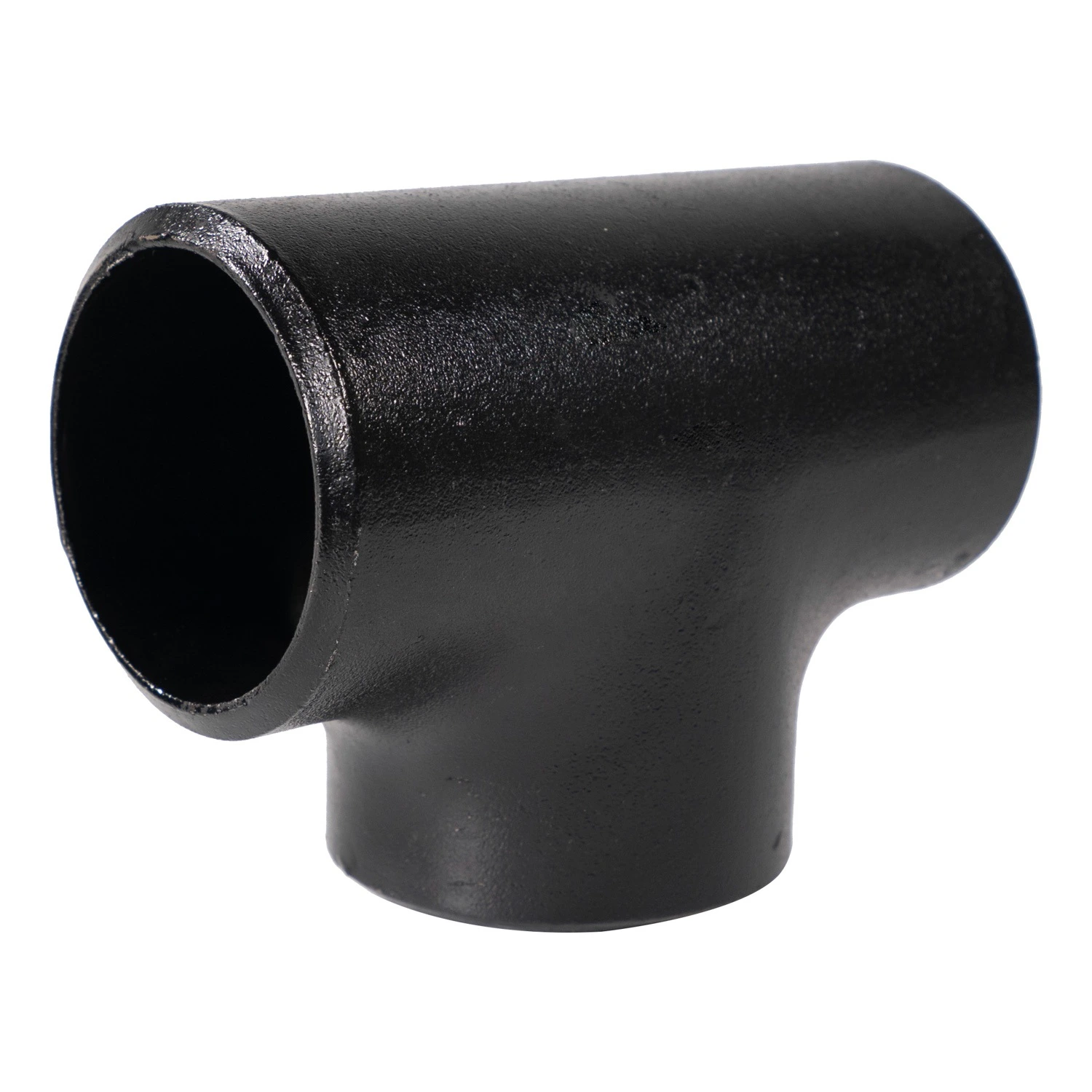

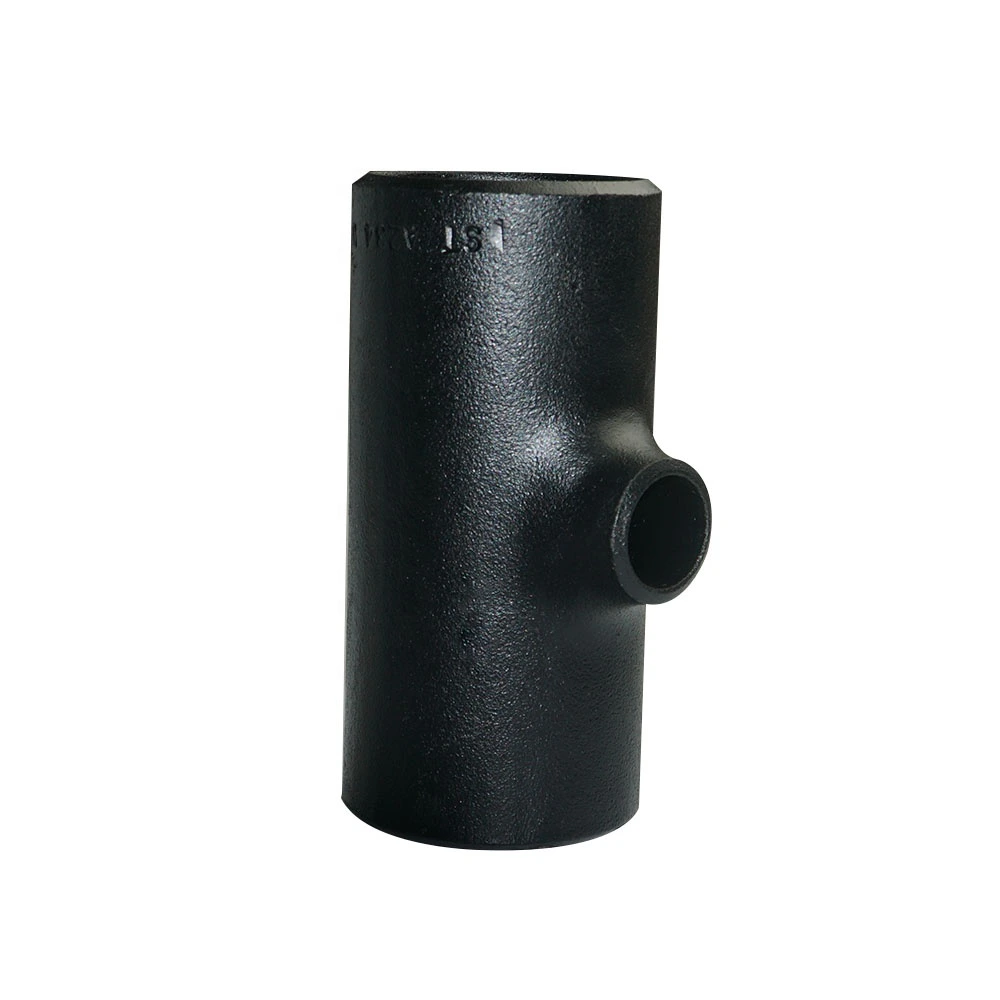

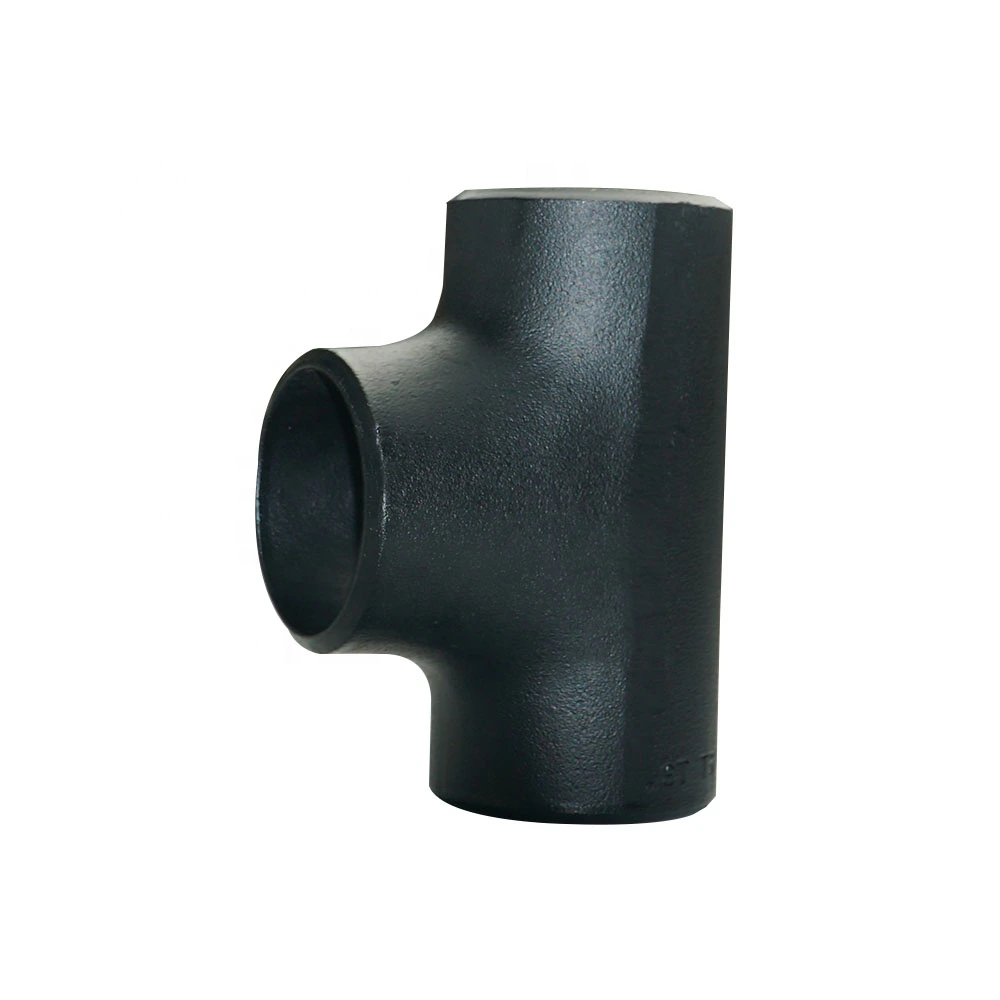

For a tee, identify run and branch nominal sizes, outside diameters, wall thicknesses and centre-to-end dimensions. Confirm equal or reducing geometry on the selected drawing; tee photographs do not qualify equal branches for every choice. Select the exact material specification and grade from the stainless, alloy or carbon steel alternatives.
Five millimetre size labels coexist with broad size references. Obtain an agreed nominal designation and unit-confirmed dimensions. The model range and separate apostrophe-based size notation do not measure the selected fitting. Length 4 in, height 4 and a mounting-hole entry also need dimensional mapping.
Butt-weld ends and seamless manufacturing evidence
Confirm whether the actual supplied interface is welded or threaded. For butt-weld ends, specify pipe-wall matching, bevel and end preparation; for NPT, establish the full thread designation and gender. Obtain manufacturing records before accepting seamless, forged or cast construction.
SCH40 is the enquiry wall reference. STD, XS and SCH80 also appear among thickness references, so establish the selected schedule and measured wall for the nominal size. No material grade or numbered dimensional standard is qualified by the unnumbered ANSI, JIS, DIN and ASME names.
Oil duty and fitting acceptance requirements
Class 125 and Low Pressure do not establish a numerical working limit. Assess actual material, wall, medium, temperature and design requirements. Flexible does not prove movement capability, and Painting needs a coating specification. Provide actual type, run/branch drawing, material and size, end preparation, manufacturing route and operating duty. Request material, dimensional and process inspection records before accepting the fitting for oil service.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
