WP321 / 347 Equal Tee Enquiry | Stainless and Carbon Steel Options
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.26 in
-
Pipe Class150SizeCustomized Size
-
Product nameElbow

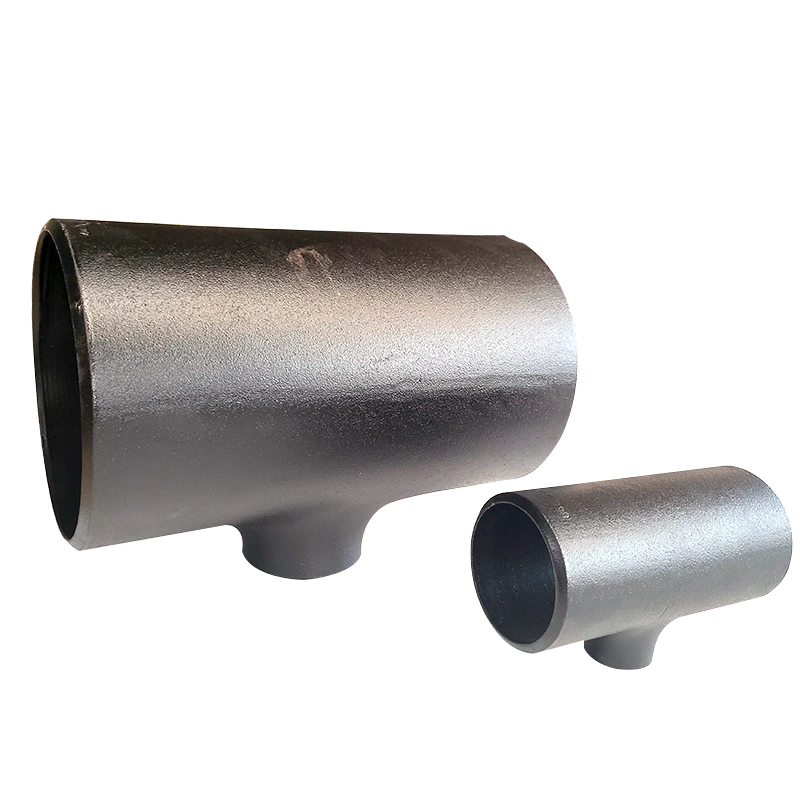

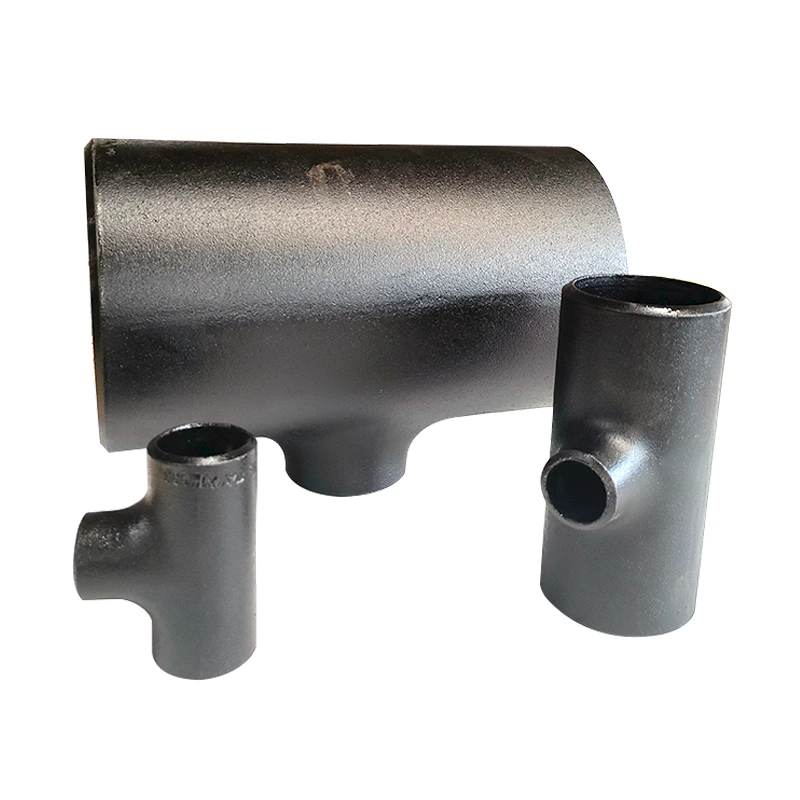

This pipe-fitting enquiry centres on an equal tee with WP321 and 347 stainless references alongside carbon-steel alternatives. Both reviewed photographs show branched fittings. The actual choices include TEE and Elbow, so select the intended type before assigning tee geometry, an exact material grade or an applicable fitting standard.
Specify the selected tee across all three ends
For TEE, request a drawing identifying run and branch nominal sizes, outside diameters, actual walls and centre-to-end dimensions. Explain the millimetre labels and establish the Equal relationship between all three mating pipes. Define welding-end preparation and access at each connection. Elbow selections need a separate angle, radius and end drawing; the imported Elbow product-name entry does not establish the tee's dimensions. Neither the Hexagon nor mounting-hole field replaces a selected three-end drawing.
Separate material references from standard qualification
Resolve WP321 and 347 through an exact stainless material specification, edition and traceable grade records. Assign Carbon Steel and Alloy alternatives separately. Agree the fitting standard for the selected welded tee and establish whether the title's ASME B16.5 reference applies to that construction. A title reference alone cannot qualify dimensions or pressure class. Obtain production and inspection evidence for Forged rather than using the photographs to establish a manufacturing route.
Coordinate branch welding and service acceptance
Match the run and branch ends to the actual adjoining pipes, joining procedure and inspection requirements. Clarify Painting through coating coverage, preparation and weld-zone condition. Supply fluid, pressure, temperature, corrosion and branch-load conditions for complete-assembly assessment; the 150 labels alone do not establish permissible duty. Confirm offered dimensions and availability beyond Customized Size. Base acceptance on the selected type drawing and reconciled material, standard, production and welded-joint records.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
