ASME B16.9 WPB Reducing Carbon Steel Butt-Weld Tee Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM
-
model numbertee 3207TechnicCasting
-
ConnectivityMale/FemaleshapeEqual/Reducing
-
head codeHexagon/RoundSurface TreatmentPainting
-
Mounting hole diameter0.26 inPipe Class1000
This reducing tee enquiry concerns a carbon-steel butt-weld branch connection with ASME B16.9 and WPB references. Treat the run and branch as three separately specified pipe ends. The listing's generic millimetre and material choices need a selected-model drawing before they can define a reducing combination or establish the offered item's material and manufacturing qualification.
Map the run and branch dimensions

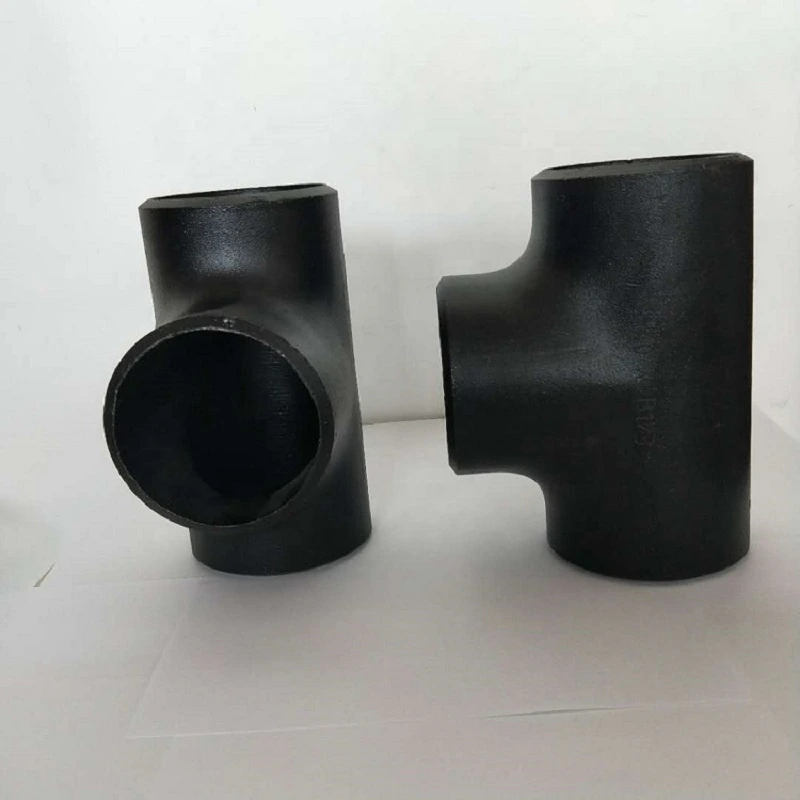

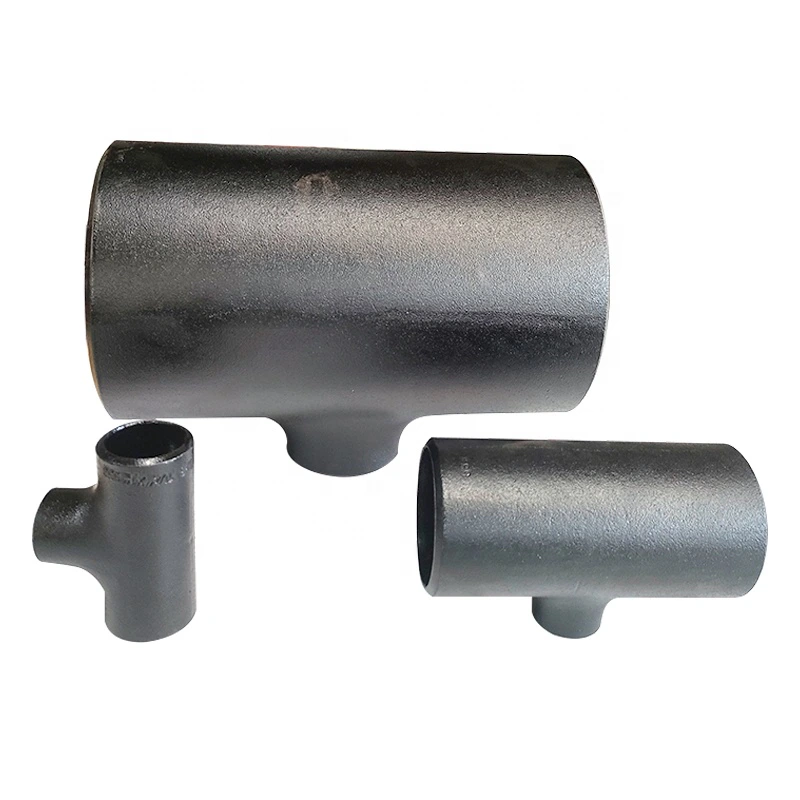

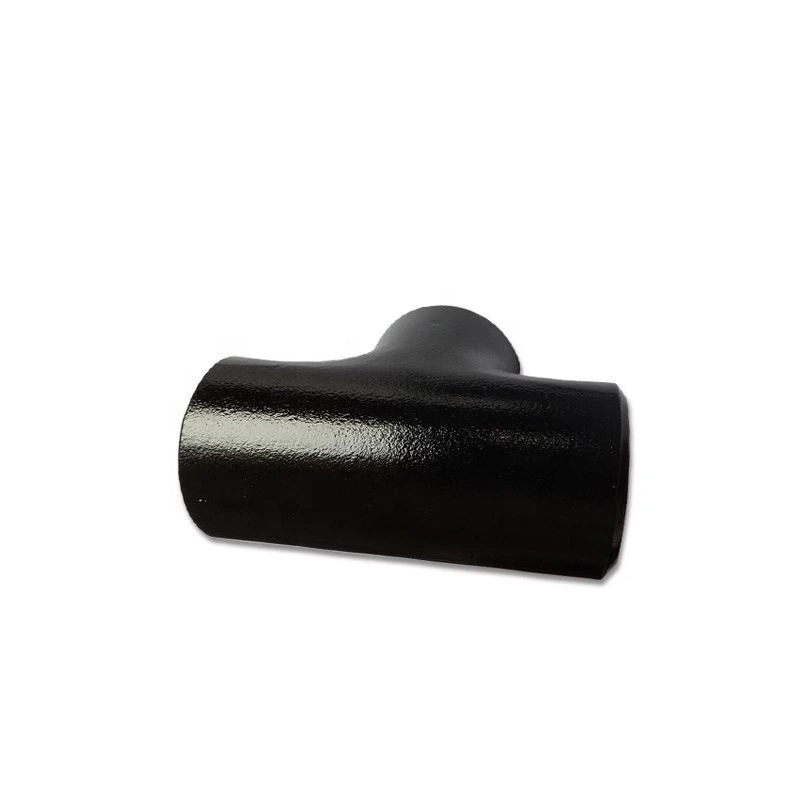

Identify both run ends and the branch by nominal size, outside diameter, wall thickness and weld preparation. Explain what each millimetre option measures and show the selected combination on a drawing. Equal/Reducing does not identify which option has a smaller branch or different run ends. Include centre-to-end lengths, branch orientation and clearance for the adjoining pipe layout. Photographs support the tee family, but cannot establish every end dimension or wall schedule; the Male/Female and mounting-hole fields cannot replace the required three-end geometry.
Document WPB material and the production route
Choose the carbon-steel option for the WPB requirement and obtain the exact material specification and traceable grade documentation. Stainless-steel alternatives need their own grade and specification. Request the applicable ASME B16.9 edition and dimensional and inspection acceptance for the selected tee. Production records should resolve the manufacturing description before Seamless or Forged is accepted as an actual route. Do not infer those properties from the fitting's dark surface or visible form. Define coating preparation, coverage and weld-zone condition rather than relying on the Painting label alone.
Qualify the whole branch connection
Provide the run and branch pipe specifications, fluid, pressure, temperature and corrosion conditions. Pipe Class 1000 does not by itself establish a pressure-temperature limit for the selected item. Agree the joining and inspection plan for all three connections, with acceptance tied to the selected drawing and matching material and manufacturing evidence.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
