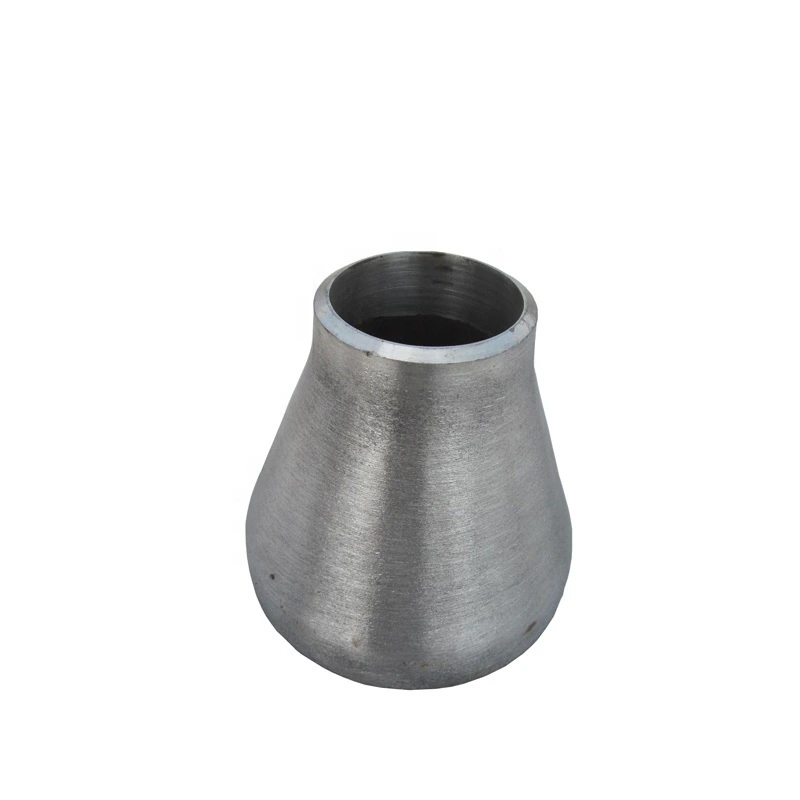

B16.9 A403 WP 304 Concentric Pipe Reducer Enquiry

• warranty

  1 year
  customized support

  OEM, ODM, OBM
• model number

  reducer 3697
  Technic

  Forged
• Connectivity

  Female
  shape

  Equal
• head code

  Hexagon
  Overall Length

  4 in
• Height

  2
  Surface Treatment

  Painting
• Pressure

  Low Pressure
  System of Measurement

  inch
• Mounting hole diameter

  0.25 in
  Pipe Features

  Flexible, Corrosion-resistant, Chemical Resistant
• Pipe Class

  125
  Application

  Agricultural Irrigation, Automotive Repair, Heating Systems, Power Industry
• Thread Types

  NPT

This concentric pipe reducer enquiry requires a defined large-to-small end pair and confirmation of the B16.9 and A403 WP 304 requirements. Specify the intended material and connection arrangement for the selected transition. The reducer should be evaluated from both pipe ends and their alignment, rather than from a single size label.

Identify the paired ends and centerline arrangement

Give the large-end and small-end nominal sizes separately, along with their actual diameters and walls. Show the required common-centerline arrangement and overall reducer length on the layout drawing. Request dimensional confirmation for the selected transition, including the end details needed by the installation. A single diameter choice cannot establish the full reducing pair or demonstrate that the two adjoining pipes will align as required.

Define the material and standard requirement precisely

For an A403 WP 304 request, confirm the exact specification designation and material documentation for the intended Stainless Steel configuration. Carbon Steel choices need a separate grade definition. State the governing dimensional standard and edition alongside the required construction. These items should describe one selected reducer; the surface finish or general tapered shape of an image does not establish a material specification or standards compliance.

Review both connections before accepting the transition

Identify the connection form and preparation required at each end, then compare them with the mating pipe dimensions and joining procedure. Include the intended medium, pressure and temperature with the enquiry. Ask for the selected-part drawing and qualification records needed to assess the material and construction under those conditions. Confirm the end pair, alignment, length and connection requirements together before accepting the reducer. If either pipe dimension changes, review the complete transition again so the revised pairing remains clear.
