Carbon Steel Elbow for Natural Gas Pipelines

• warranty

  3 Years
  customized support

  OEM
• Technic

  Other
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

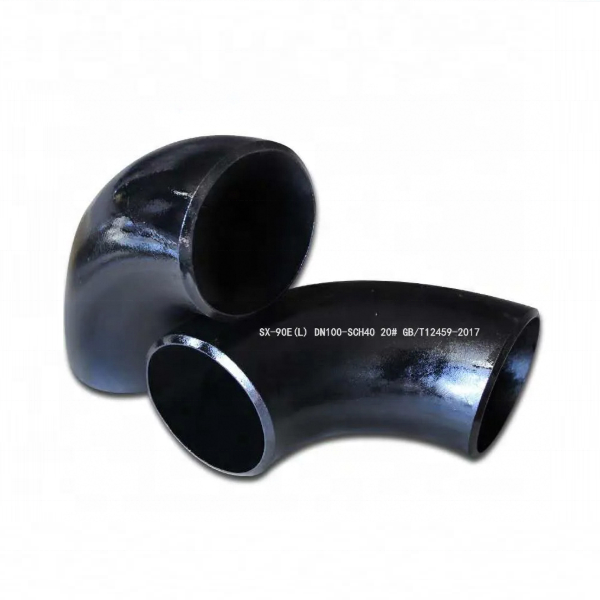

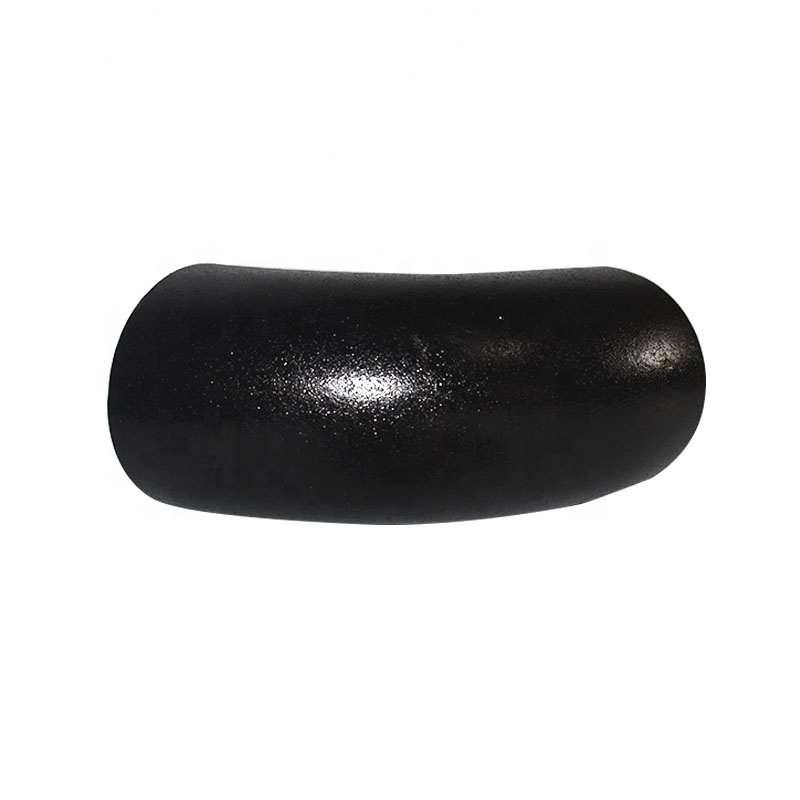

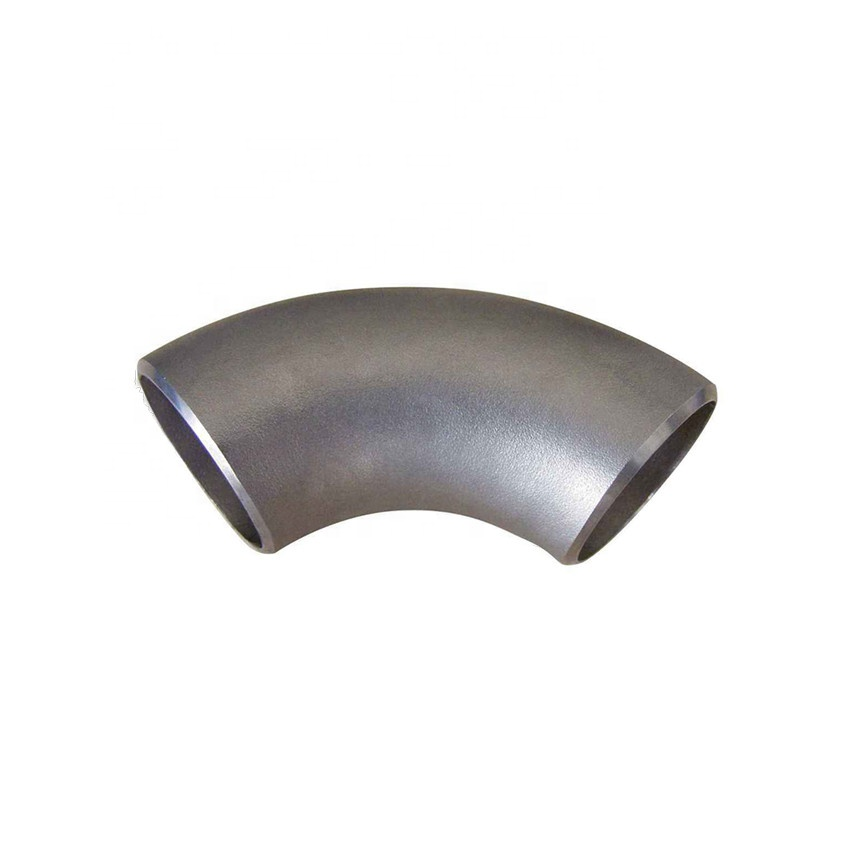

This carbon steel elbow listing addresses natural gas pipelines with API 5L, X65, seamless and 180-degree return references. The reviewed photographs show curved elbow forms, while the table lists Welding and NPT. Confirm the actual return geometry and end method before selecting the fitting for a gas-line layout.

Resolve the return angle and selected elbow drawing

Obtain an approved drawing identifying angle, radius, centre-to-end dimensions and end separation where relevant. The two reviewed images do not document the selected 180-degree return configuration, and visible markings are not certification. Retain the elbow family while verifying the actual supplied form against the required layout.

The half-inch to 12-inch option is a size range. Specify nominal size, outside diameter, bore, wall, actual length and height for the order. Repeated mounting-hole ranges and Hexagon wording do not establish a flange or complete feature geometry. Do not infer a return configuration or dimensional fit from the photographs.

Verify actual ends, grade and API applicability

Specify welded or threaded ends through a selected drawing, including mating pipes and end preparation. Welding and NPT entries do not resolve one supplied connection. Request the actual specification, grade X65, condition, traceability and inspection records. Establish seamless construction through manufacturing evidence; Technic Other provides no route definition.

Identify the API 5L edition, actual material or product coverage and applicability to the ordered fitting. Agree the dimensional specification and project conformity package rather than treating line-pipe wording as elbow certification. Confirm actual smooth finish, protection and preservation without assuming corrosion compatibility from general labels.

Agree natural-gas duty and traceable line acceptance

Provide gas composition, contaminants, pressure, temperature, cycles, environment, loads and joint details. Low Pressure and Not Rated entries establish no numerical allowable limit. Review the documented material and geometry against the actual installation. Agree material, dimensional, angle, end, surface and required project tests with criteria and reports before approval.
