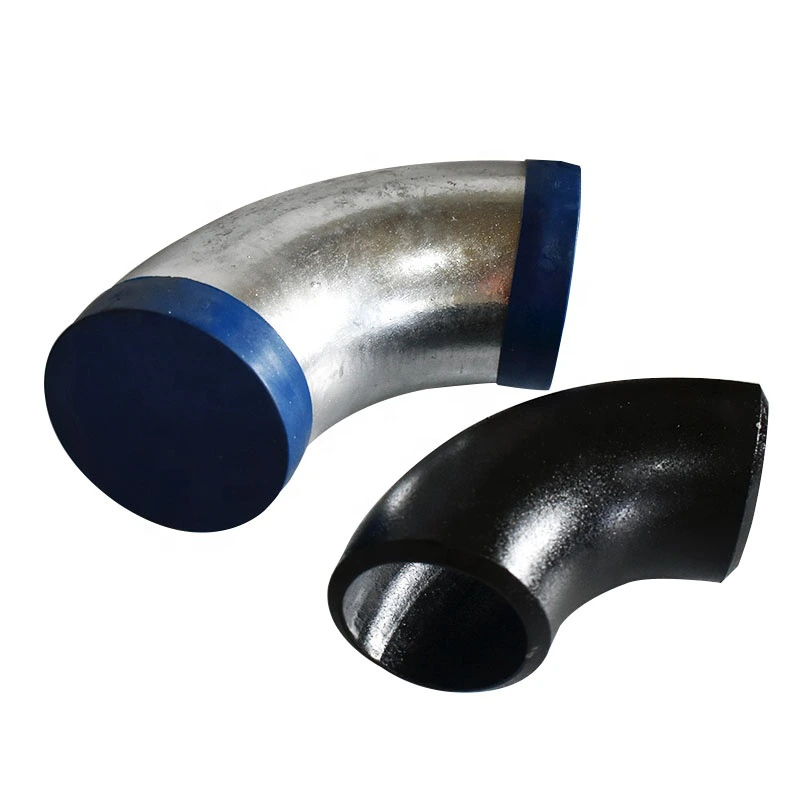

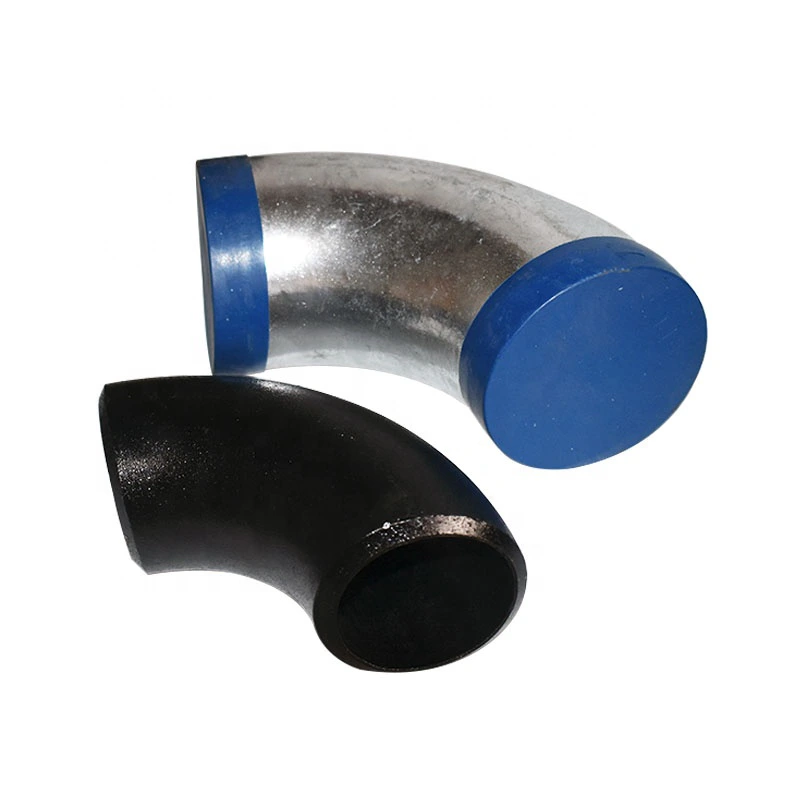

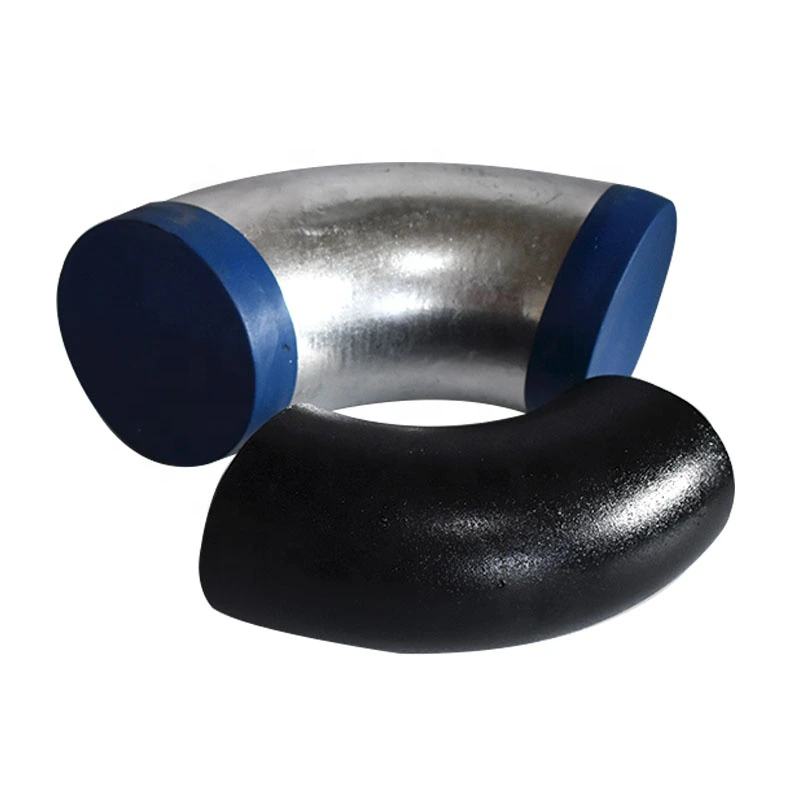

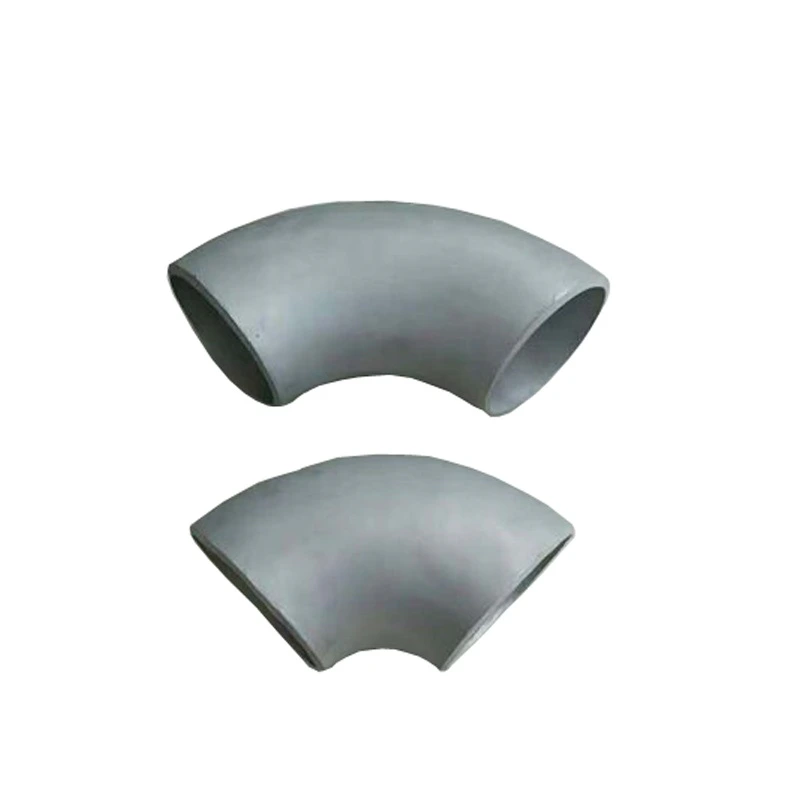

A234 90-Degree Steel Pipe Elbow Material Enquiries
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
model number0354TechnicForged
-
ConnectivityWeldingshapeEqual
-
head codeHexagonOverall Length4 in
-
Height2Surface TreatmentPainting
-
PressureLow PressureSystem of Measurementinch
-
Mounting hole diameter0.25 inPipe FeaturesFlexible, Corrosion-resistant, Chemical Resistant
-
Pipe ClassNot RatedApplicationConstruction Engineering
-
Thread TypesGSizeCustomized Size
-
Product nameElbow
A 90-degree steel elbow request should connect the pipe route with a precise material and end arrangement. This product has Stainless Steel, Alloy and Carbon Steel choices, so identify the intended material before confirming the grade and construction required for the turn.
Locate the ninety-degree turn on the piping drawing
Provide the required turn angle, centerline radius and end positions relative to the adjoining pipes. Include any envelope or clearance restriction around the elbow. Confirm those dimensions for the selected configuration rather than assuming that a general elbow photograph establishes the angle or radius. The route drawing should describe the actual space occupied by the turn as well as the nominal sizes of its ends.
Define welding and thread requirements at the correct ends
Specify how each pipe interface must connect, with the relevant wall thickness and end preparation. If a G-thread requirement applies, identify the end and give its complete thread designation for confirmation. A welding label and a thread name do not define a complete connection pair by themselves. Keep the two end specifications together so the proposed elbow can be reviewed against both mating pipe interfaces.
Confirm A234 and construction for the chosen steel
State the required material specification and grade explicitly, including any A234 or seamless-construction requirement that needs confirmation. Obtain the applicable service rating for the selected material, wall and geometry, with the medium and design conditions included in the enquiry. A low-pressure or resistance descriptor does not establish a tested operating limit. Request the relevant material and construction documentation for that same elbow before accepting the proposed turn for service.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
