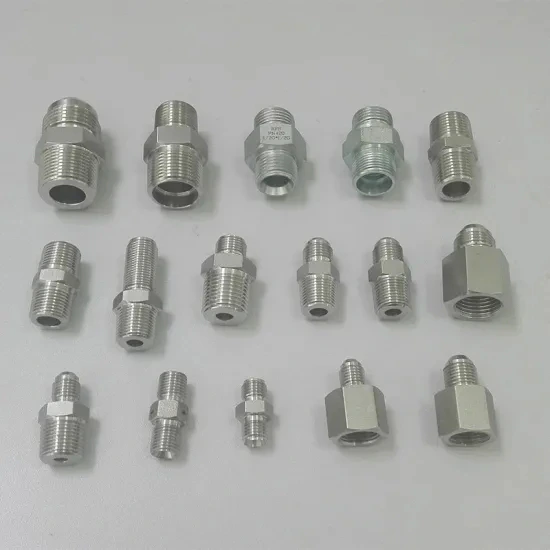

NPT Stainless Steel Hex Nipple with Material Choices
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportCustomizable
-
model numberASTM GB JIS GBTechnicForged
-
ConnectivityWeldingshapeReducing Equal
-
head codeHexagon roundOverall Length4 in
-
Height10Surface TreatmentZinc Plated, Galvanized Black Customizable
-
PressureHigh PressureSystem of Measurementinch
-
Mounting hole diameter0.2 inPipe FeaturesFlexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features, underground rated
-
Pipe Class1000StandardASTM GB JIS GB DIN EN GOST
-
MaterialCarbon Steel Pipe Seamless Pipe Stainless PipeMOQ1 Piece
-
Size6mmWall ThicknessSch10~Sch160
-
Warranty1 YearCustomizedCustomized
-
Payment TermsTT LCTransport PackageWooden Case or Wooden Pallet Customizable
An NPT hex nipple request needs a clear description of both mating connections. Stainless Steel, Alloy and Carbon Steel are separate choices for this product, so identify the required material and whether the two ends should be equal or reducing.

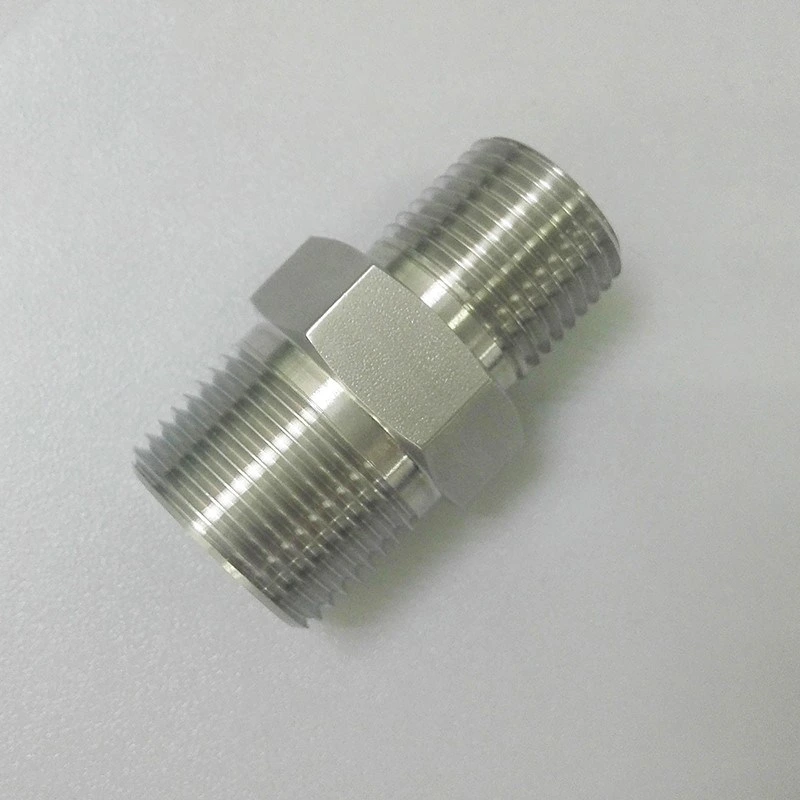

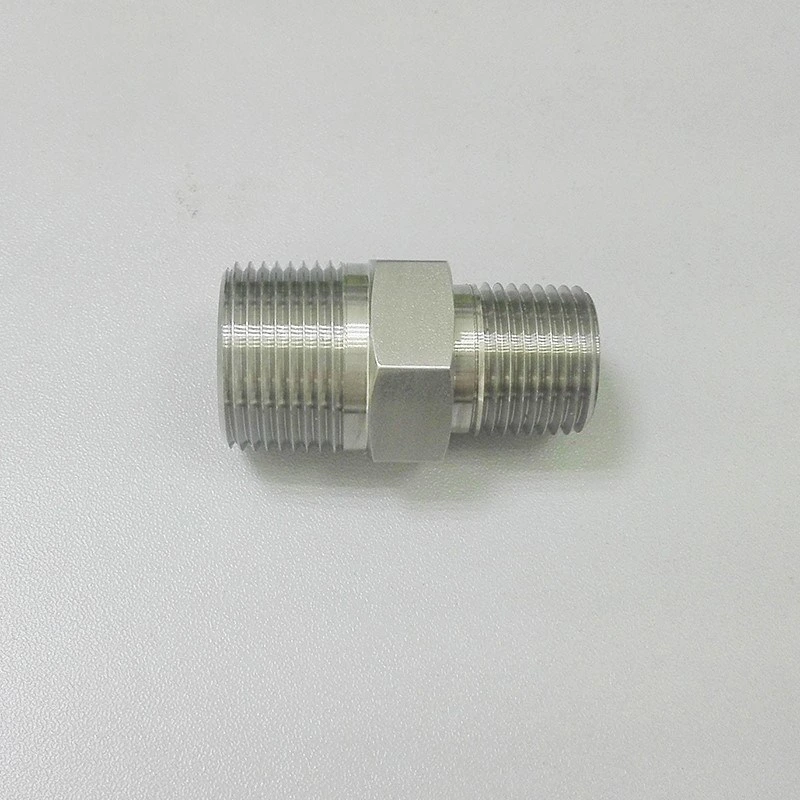

Draw the two nipple ends as a connection pair
State the nominal size and required thread designation at each end, with units and dimensional references included. For a reducing nipple, identify which end mates with each fitting instead of relying on a single size label. Confirm the actual connection form and NPT requirement for the selected part. The two-end drawing should establish the intended transition without assuming that a millimetre selector is an equivalent nominal thread size.
Locate the hex body within the available space
Provide the overall length, required engagement at each end and the dimensions of the hexagonal center. Include any access or clearance requirement around the mating fittings. Confirm the useful threaded lengths and the body arrangement together, so the nipple can be reviewed as one assembly component. A general length or height value should not replace the dimensions needed for the specific equal or reducing connection.
Specify the grade and surface requirement independently
Name the required grade within the chosen material family and identify the finish that the project requires. Any forging, coating or wall designation should be confirmed for that same nipple configuration. Include the medium and design pressure and temperature when requesting suitability confirmation, with relevant material and rating documentation. General high-pressure, resistance or flexibility labels cannot establish the performance of a particular material and thread arrangement, so the enquiry should keep those conditions tied to the proposed part.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
