30-Degree Carbon Steel Seamless Pipe Elbow Enquiry

• model number

  API, ISO
  Technic

  Forged
• Connectivity

  Welding
  shape

  Equal
• head code

  Round
  Surface Treatment

  Painting
• Mounting hole diameter

  0.26 in
  Pipe Class

  150
• Application

  Industry

This carbon steel seamless elbow enquiry requests a thirty-degree change in pipe direction. Its sole actual variant is Elbow with Carbon Steel, but the page does not establish the selected bend radius, wall schedule or exact grade. Start with the installation drawing and verify the actual angular geometry before specifying either adjoining connection.

Check thirty-degree geometry against the installation

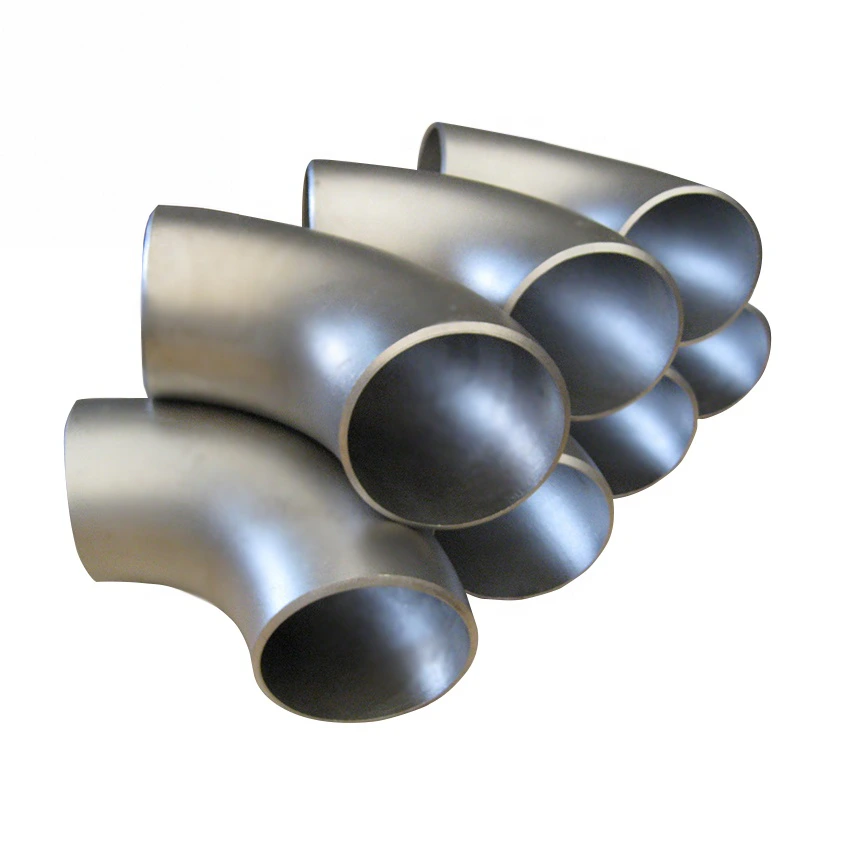

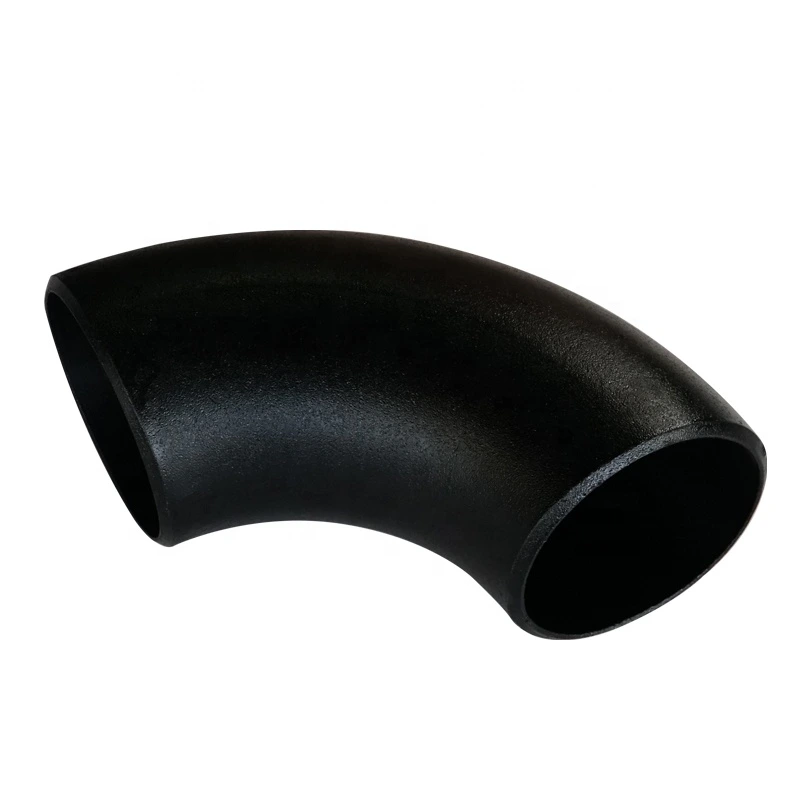

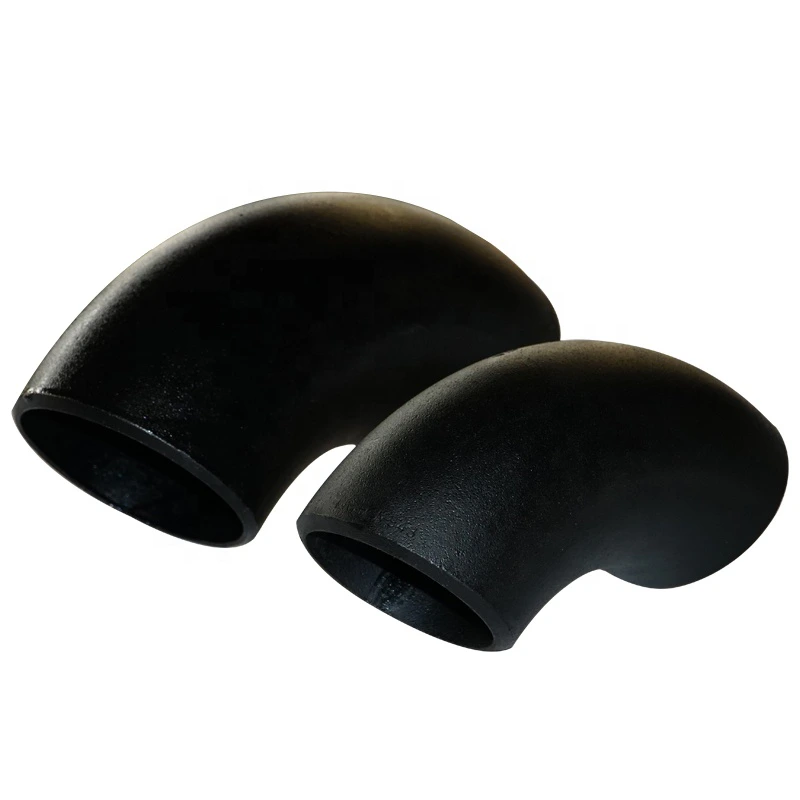

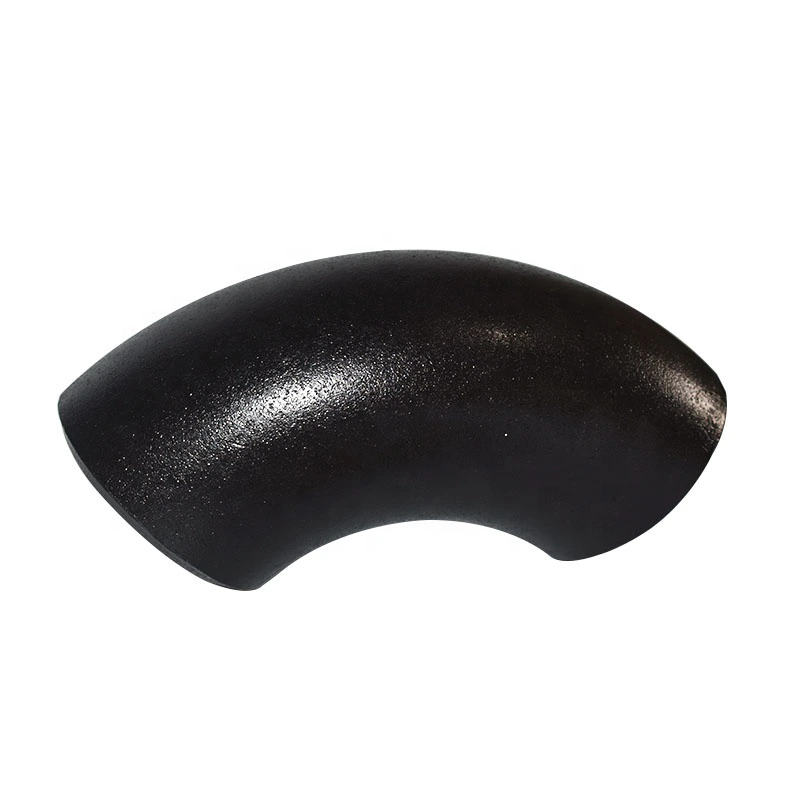

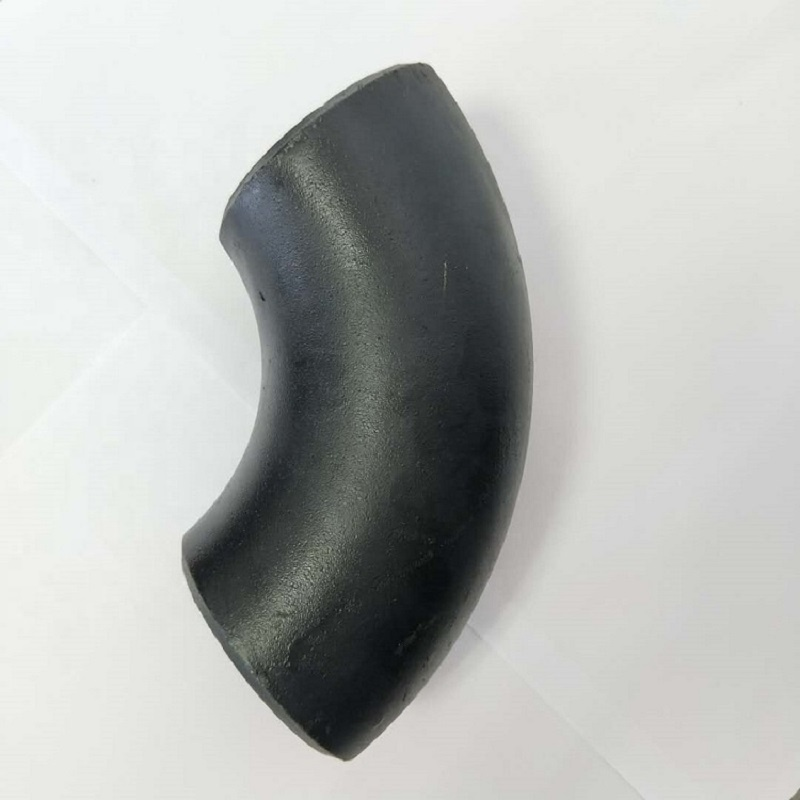

Record the intended angle and tolerance, centreline radius, centre-to-end dimensions and space envelope. Match both end diameters and walls to the actual pipes and confirm the Equal relationship. The half-inch to twenty-four-inch menu is a range-like label, not one selected nominal size or verified capacity. The mounting-hole field does not define an elbow end. Gallery curves cannot prove the offered angle or radius.

Clarify seamless manufacture and API or ISO scope

Request an exact carbon grade, full material specification and traceable records for the selected elbow. Support Seamless and the Forged table entry through production and inspection evidence; the words alone neither prove actual manufacture nor establish incompatible routes. Ask which numbered API or ISO document, edition and scope the model entry intends. Those broad organization labels do not demonstrate certification or assign a dimensional standard. Define the required wall separately.

Agree angular fit-up and completed bend acceptance

Specify welding preparation and alignment at both ends, with inspection clearance around the bend and the intended orientation. Clarify coating and weld-zone condition beyond Painting without assuming corrosion performance. Establish the standard and unit basis of Pipe Class 150 before using it for service assessment. Provide actual fluid, pressure, temperature, corrosion and mechanical loads for the elbow, pipes and completed welds. The broad Industry entry does not approve a particular operating duty.
