22.5-Degree Stainless Steel Elbow Enquiry | Sch5 / Sch40, 1–24 Inch

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Equal
  head code

  Hexagon
• Overall Length

  1"-24"
  Height

  1"-24"
• Surface Treatment

  Polished
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1" - 24"
• Pipe Features

  round
  Pipe Class

  Not Rated
• Application

  Other
  Thread Types

  NPT

This stainless elbow enquiry requests a 22.5-degree turn with Sch5 and Sch40 wall references. The sole actual option lists an inch range without assigning individual sizes, angle or schedule. Confirm the selected bend and its pipe ends before treating the title as a complete supplied specification.

Confirm the intended turn with an actual-item drawing

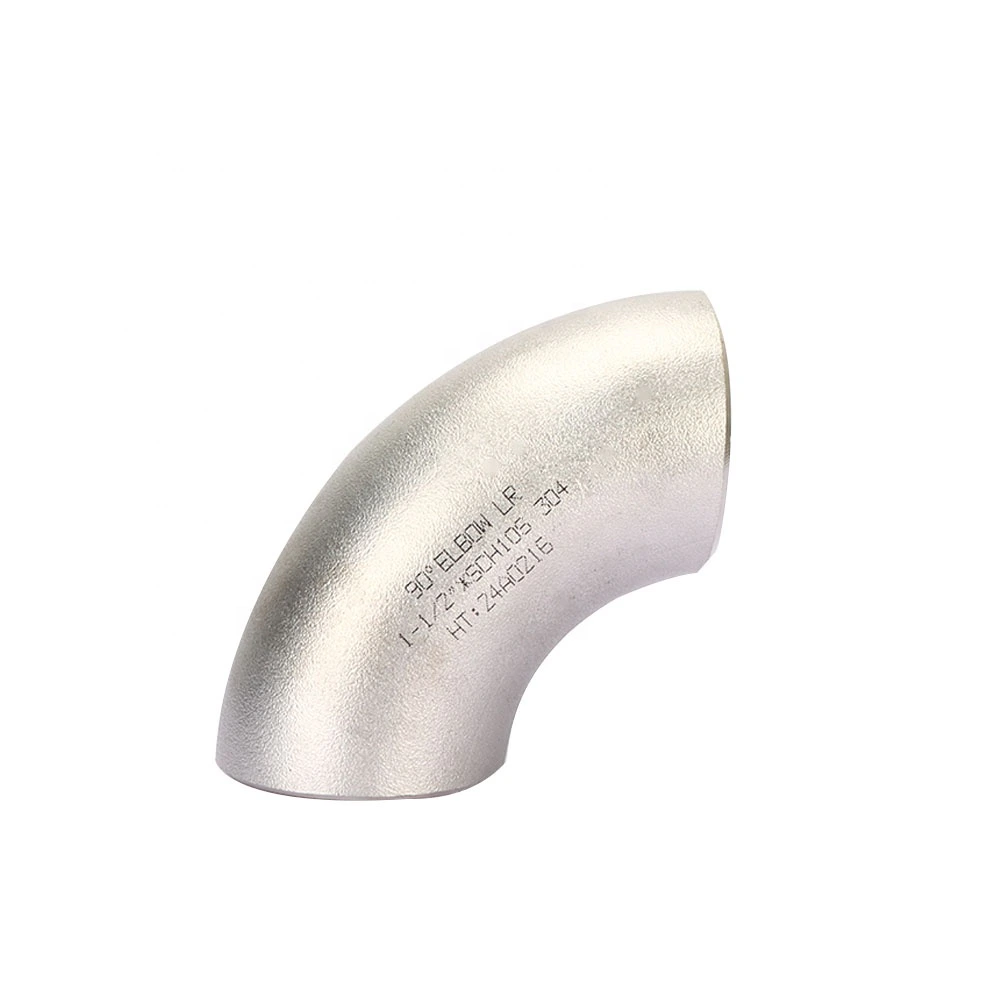

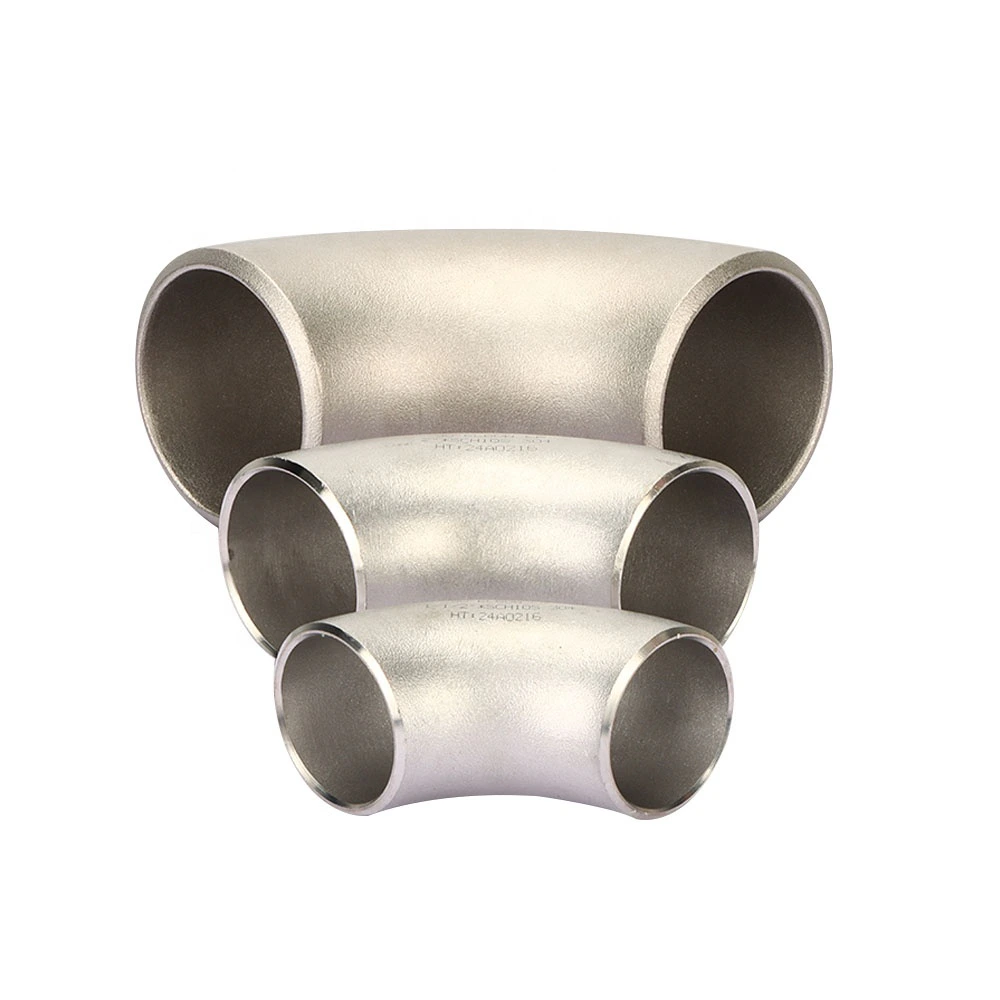

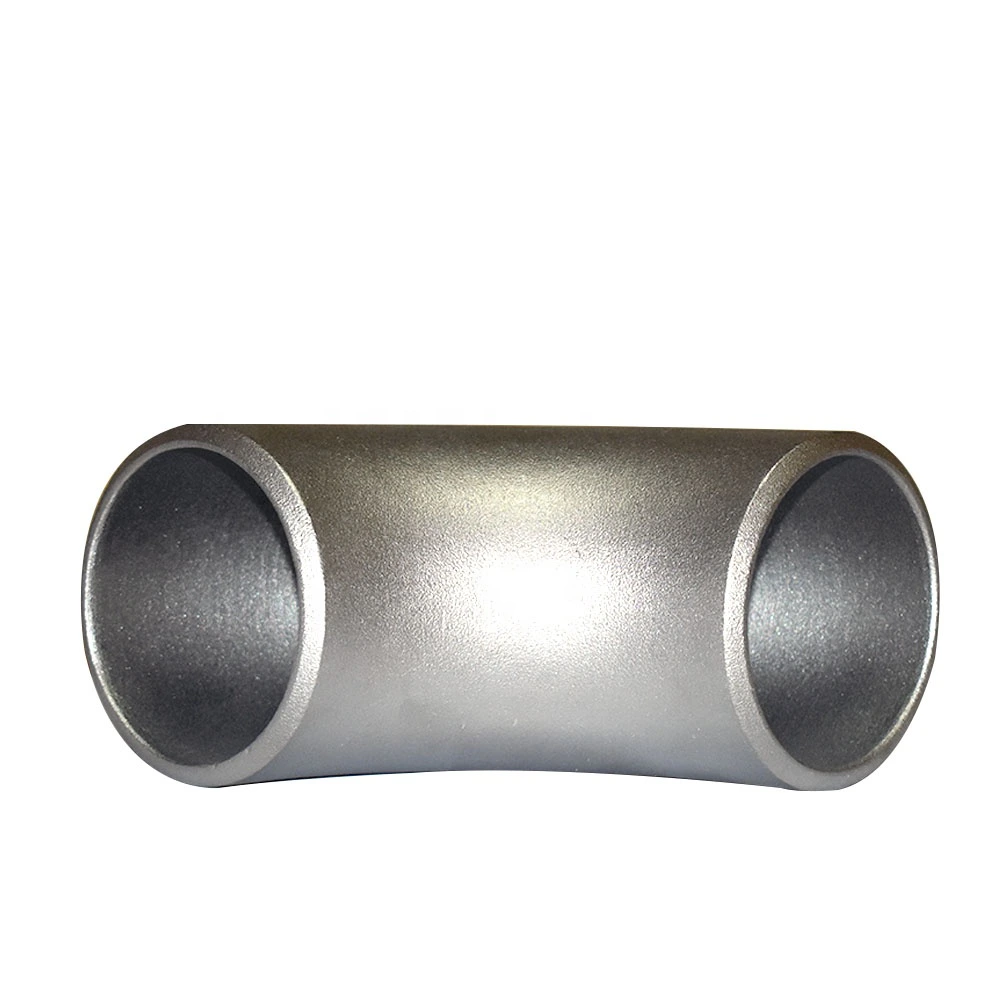

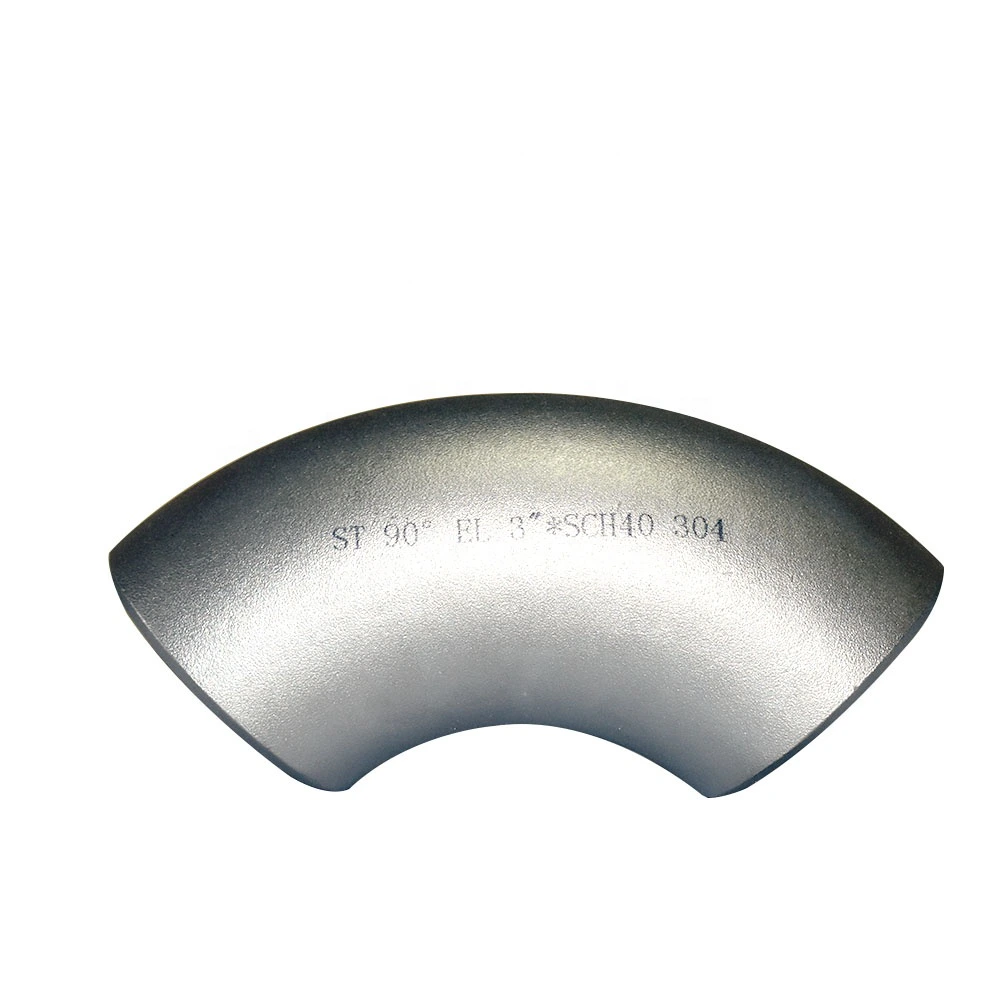

Request a drawing linked to the chosen item showing bend angle, centreline radius, centre-to-end dimensions and both pipe ends. The reviewed silver curved examples have different apparent forms; their markings do not certify the selected 22.5-degree elbow. Do not transfer a gallery angle, radius, grade or schedule to the actual variant. Match the confirmed bend envelope to the adjoining pipe runs and installation space.

Assign one wall requirement to the selected inch size

The one-to-24-inch label is a range entry rather than individually assigned nominal sizes or measured length and height. Clarify the intended nominal convention, both outside diameters, walls and tolerances. The repeated length, height and mounting-hole ranges leave those measurements unresolved. Equal, Hexagon and round do not complete the dimensional package. Specify Sch5 or Sch40 under a complete wall standard; neither label is separately assigned by an actual schedule option or defines allowable pressure.

Document the end connection and exact stainless material

Obtain written confirmation of the actual end design before specifying welding or NPT requirements. For welding, define preparation, wall alignment and inspection; for NPT, define thread dimensions, gauging and mating parts. The two table labels do not establish a combined design. Request exact stainless specifications and traceability without adding an unlisted grade. Verify FORGED production and the required joining-zone condition beyond Polished. Low Pressure and Not Rated supply no numerical duty; assess actual fluid, corrosion, pressure, temperature and mechanical loads for the selected bend and complete joints.
