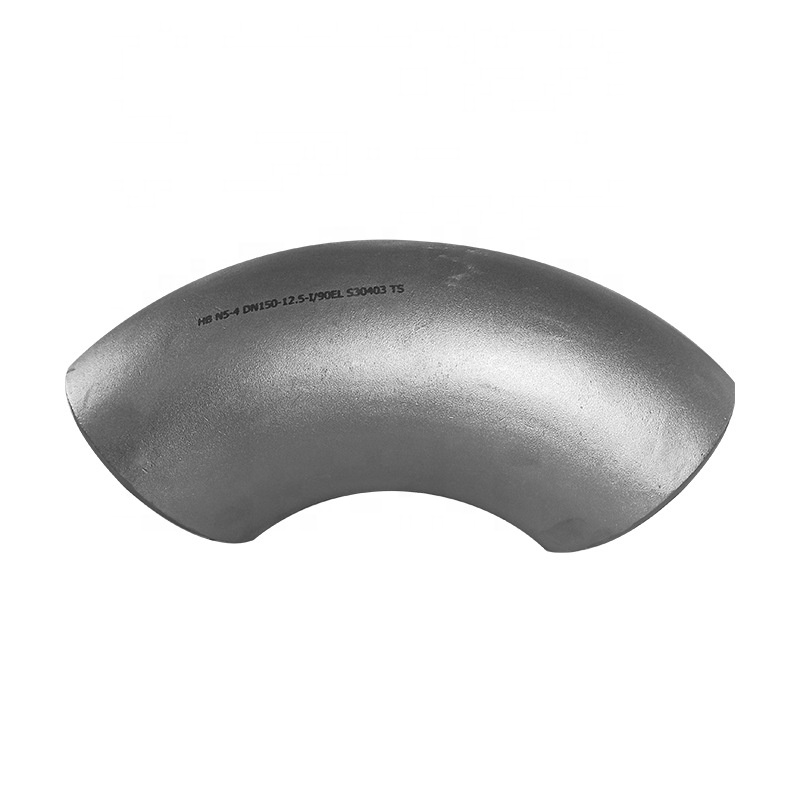

Reducing Steel Elbow for Gas and Oil Piping

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This construction piping listing describes a reducing steel elbow for gas and oil supplies. Stainless Steel appears in the title, while Carbon Steel is the selectable material. Confirm the actual material, reduction geometry and end arrangement before preparing an order for the proposed pipe transition.

Specify both ends of the reducing bend

Provide the required inlet and outlet sizes, outside diameters and wall requirements. Reducing wording does not establish an actual pair of end sizes or reduction ratio. Define the bend angle, radius, center-to-end dimensions and transition geometry on the selected component drawing.

The 1/2–12 inch range is broad size information rather than a chosen transition. Large Diameter does not specify the order size, and repeated range entries under length, height and mounting-hole diameter are not actual measurements. Clarify Hexagon wording against the geometry of the proposed elbow.

Resolve material and connection evidence

Obtain grade, condition and traceability records to settle the stainless title and carbon steel option. Identify the material and component specifications required for the purchase. The material appearance cannot replace those records, and no specific stainless grade is supplied in this listing.

The welded description needs clarification because NPT also appears in the table. Request the actual end drawing and mating requirements, then agree the applicable preparation or thread inspections. Confirm production records supporting FORGED and measurable finish criteria beyond smooth and corrosion resistant wording.

Review the gas or oil transition duty

State the selected medium, composition, contaminants, pressure, temperature, cycles, transients and loads. Low Pressure and Not Rated provide no numerical allowable envelope. Assess the actual reduction and joint under the construction-system requirements, then confirm material, dimensional, end and surface records, marking, preservation and delivery. Agree OEM requests and warranty terms separately from technical acceptance.
