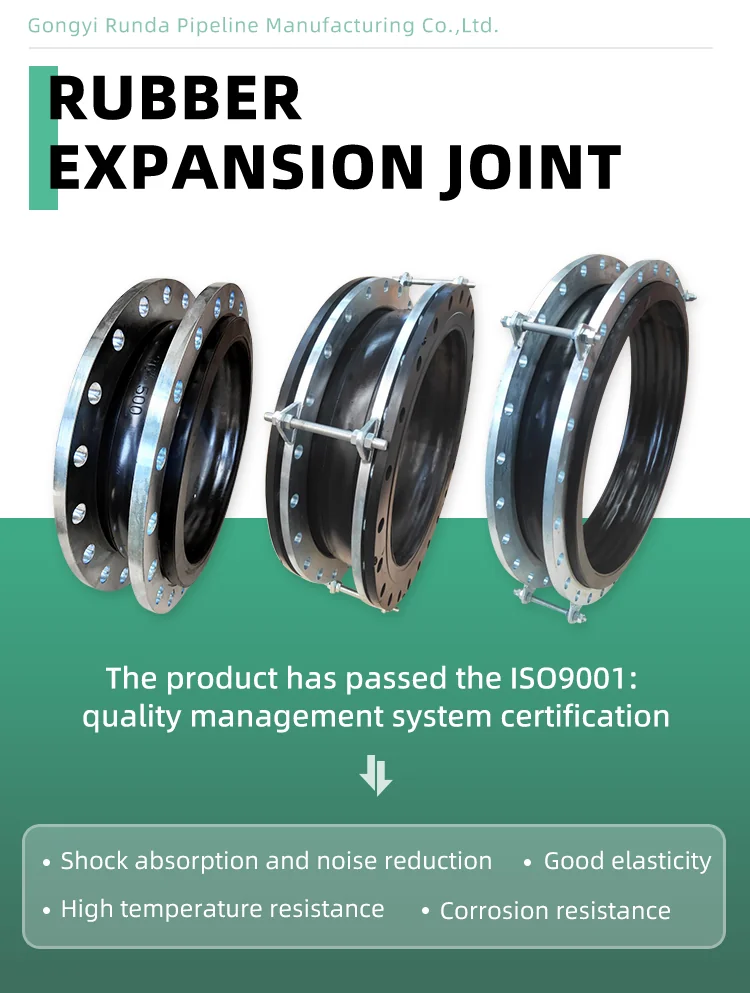

Single Sphere Forged DIN PN16 Flanged PTFE Flexible Rubber Expansion Joint Coupling for Industrial Pipeline
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
warranty1 yearcustomized supportOEM, ODM
-
model numberREJTechnicForged
-
ConnectivityFlangeshapeEqual
-
head codeRoundSurface TreatmentCleaning Supplies
-
Mounting hole diameterAccording to requirementsPipe FeaturesFlexible, Corrosion-resistant
-
Pipe ClassNot RatedApplicationAgricultural Irrigation, Construction Engineering, Shipbuilding, petrochemical industry
-
Product nameFlexible Rubber Expansion Joint Coupling for Industrial PipelineNominal sizeDN25 - DN3000
-
Working PressurePN6 - PN40Working Temperature-15℃-80℃(Special -30℃-150℃)
-
Flange standDIN,ANSI,BS,ISO,JIS,etc.Material of flangeCarbon steel,Stainless steel 304,316 etc.
-
Product CertificateISOApplication mediaAir,Water,Oil,Weak Acid and Alkali,Juice etc
-
Factory addressHenan,ChinaRubber materialPTFE ,NBR, NR, Neoprene,etc
