Pipeline Flange Connector Flexible Single Arch Rubber Expansion Jointt for Power Plants and Nuclear Stations
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
warranty1 Yearcustomized supportOEM, ODM
-
model numberREJTechnicForged
-
ConnectivityFlangeshapeEqual
-
head codeRoundSurface TreatmentCleaning Supplies
-
Mounting hole diameterAccording to pipeline requirementsPipe ClassNot Rated
-

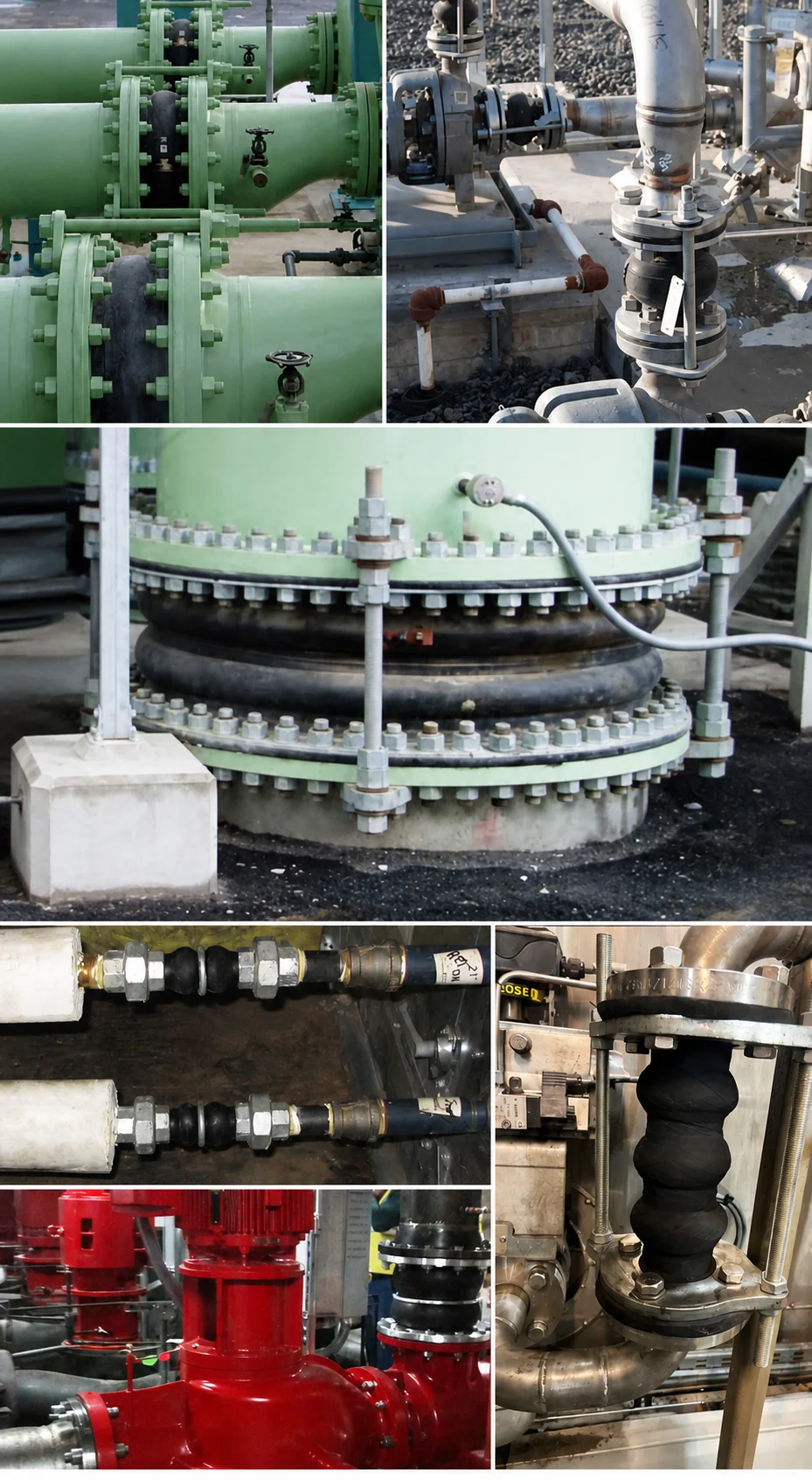

Applicationwater supply and drainage systems, natural gas transportation, oil & gas industry, plumbing & water supplyProduct nameRubber Expansion Jointt for Power Plants and Nuclear Stations
-
Nominal DiametersDN15-DN4000Working temperature-15~+80 ℃ (special:-30~+150℃ )
-
Rubber joint material:EPDM,NBR,CR,PTFE,etc.Flange materialSS,CS,CS galvanized,ductile iron,PPH (PN10, PN16)
-
Flange standardDIN PN10,PN16,PN25/ANSI 150LB,300LB/JIS 10K,etc.Test pressure1.5 times of working pressure
-
Explosion pressure2 times of working pressureCertificateISO, TUV, WRAS, CO, MTC, etc
-
ManufacturerYes, factory add: Gongyi City,China
