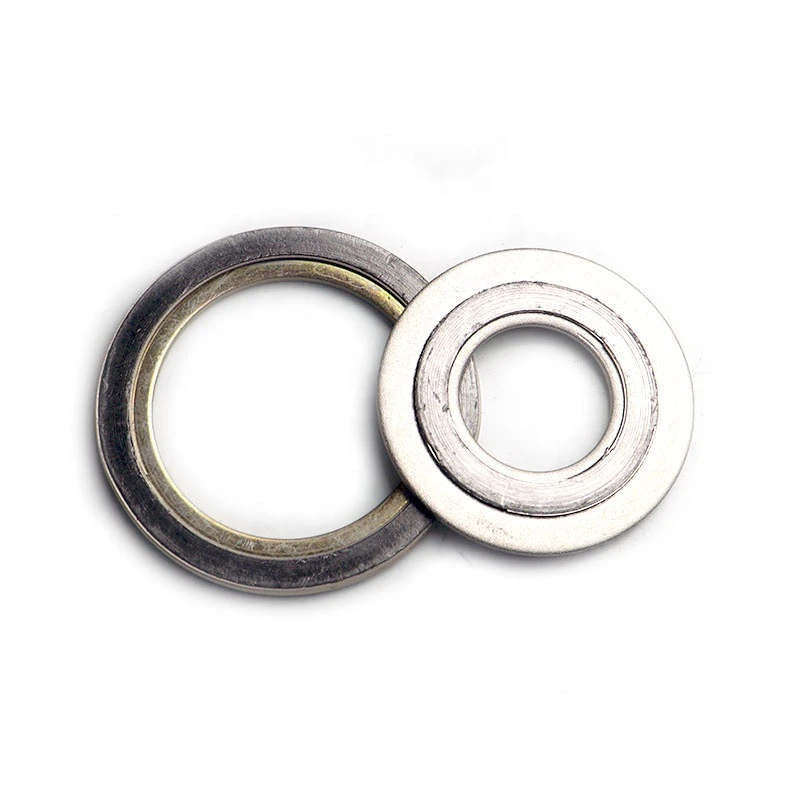

Industrial Gasket with PTFE and Graphite References

• model number

  Gasket
  Technic

  seamless
• Connectivity

  Female
  shape

  Equal
• head code

  Round
  Surface Treatment

  Smooth
• Mounting hole diameter

  1/16
  Pipe Features

  Flexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features, underground rated
• Pipe Class

  125
  Application

  Agricultural Irrigation, Automotive Repair, Heating Systems, Power Industry, Construction Engineering, Shipbuilding, petrochemical industry, Metallurgical Industry, home appliance installation, building water supply and drainage, fire protection systems

This industrial gasket listing mentions non-asbestos, PTFE and graphite composite materials in its title, while its single material option reads Stainless Steel. The relationship between those entries is not defined. Confirm the actual supplied construction before selecting the gasket for a process or maintenance requirement.

Resolve the complete material description

Request a drawing and material declaration identifying the relevant layers or components. Ask whether the title and variant describe different alternatives, parts of one design or an incorrect source entry. Do not assume that every named material is combined in the supplied gasket or that separate material choices are available.

Where a non-asbestos declaration is required, obtain the appropriate supplier evidence for the selected product. Confirm any applicable binder, reinforcement, material grades and traceability from the actual construction records. The listing gives no constituent proportions or verified compression, recovery or creep performance.

Assess the actual industrial joint

Describe the media, concentration where relevant, temperature, pressure and operating cycles. Provide the mating flange facing, available seating area and joint design requirements. General industrial and chemical-resistant wording does not establish suitability for every fluid or an allowable pressure-temperature envelope.

The table lists Pipe Class 125, but that field is not a 125 psi limit or a rating for the complete assembly. Smooth and seamless descriptions also leave the sealing profile and finish requirements unresolved. Review the chosen material and construction against the actual equipment acceptance criteria.

Confirm dimensions and purchase evidence

Specify inside and outside diameters, thickness, profile and tolerances using the approved drawing. Clarify the 10 mm pipe-size label and the unit and purpose of the 1/16 mounting-hole entry; neither gives a complete gasket dimension set. Agree dimensional inspection, material documents, quantity, packing and delivery timing after the composition discrepancy is resolved.
