Fire Resistant Cables
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.

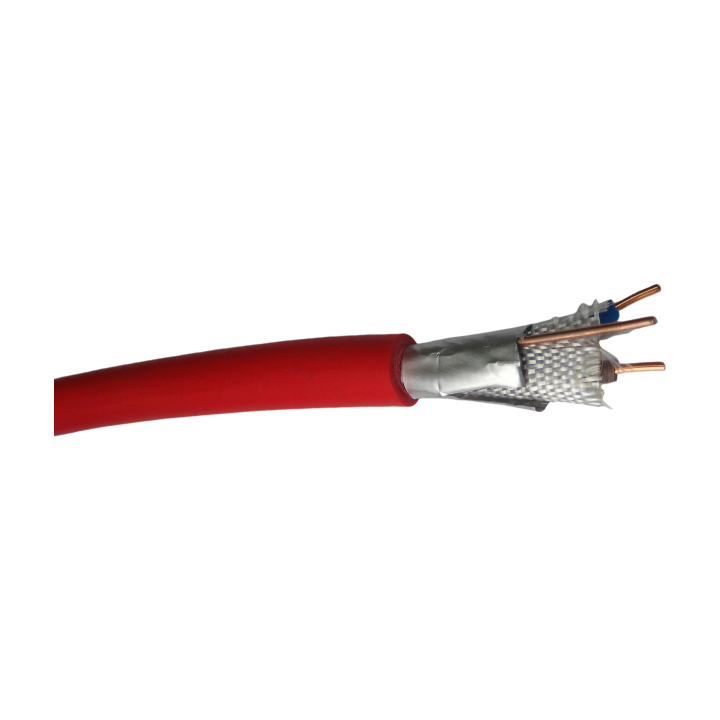

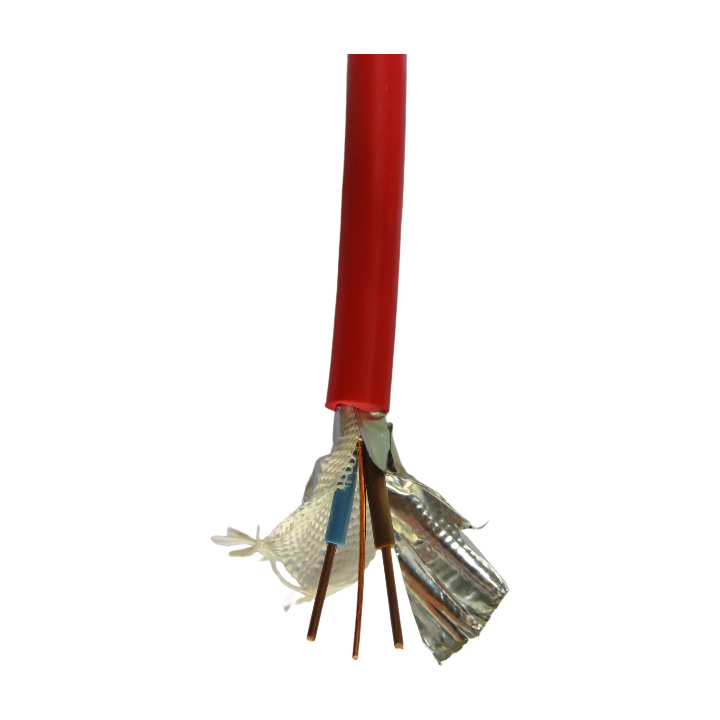

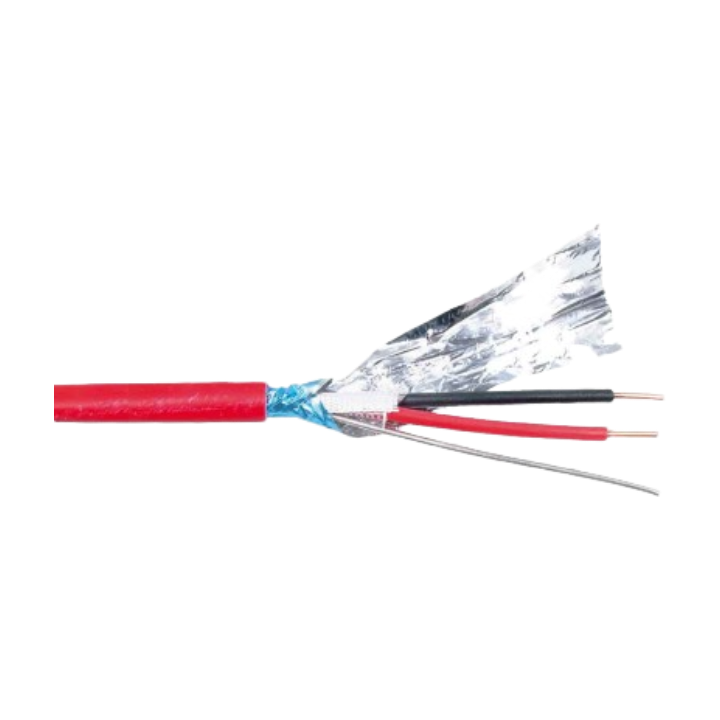

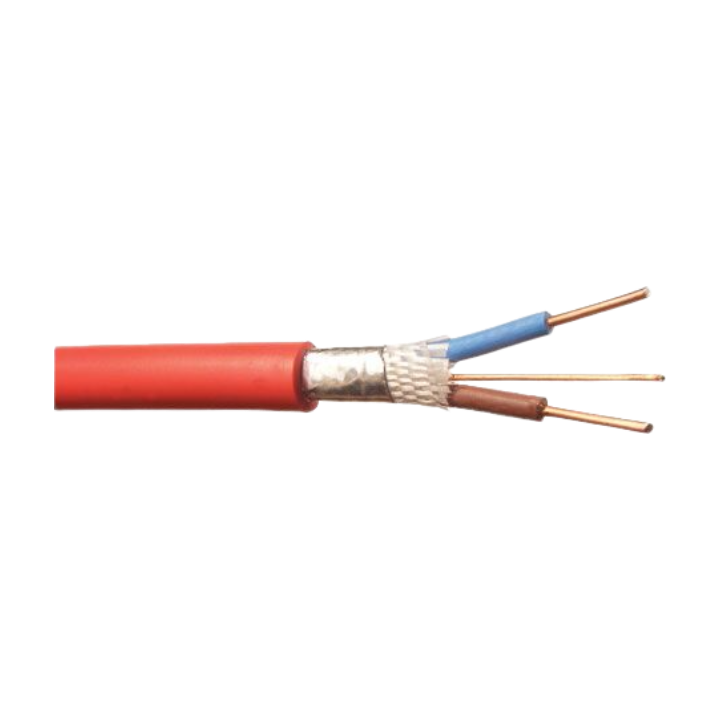

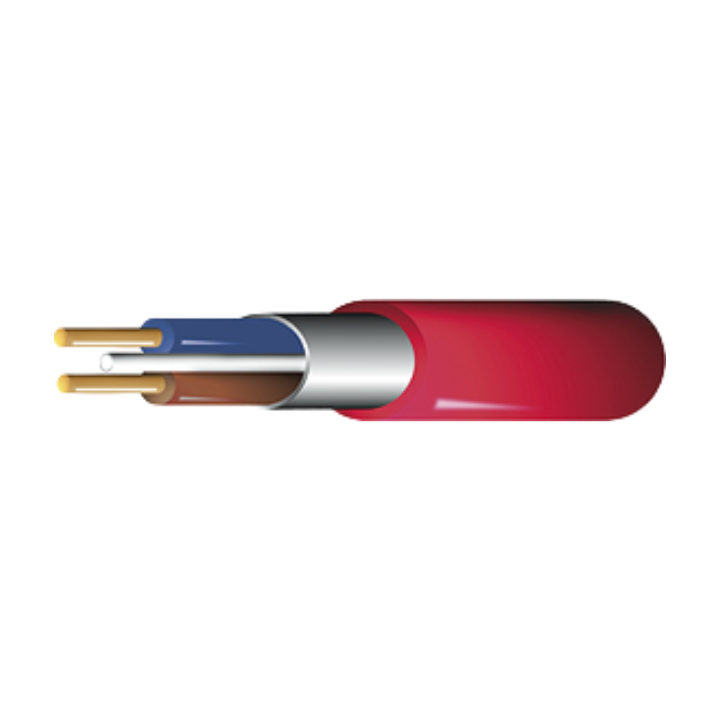

Al foil sheath with Mylar filling, 100% copper,
inner insulation Blue and Brown color and outer Red COLOUR (mate finished), Insulation: PVC,
Jacket: General Flame Retardant
Fire resistant cable
Conductor: solid copper
LPCB UL APPROVED
Insulation and sheath: Fireproof PVC
Standards: BS7629-1 BS6387 IEC60502
Voltage: 300/500V, 450/750V, 0.6/1kV.
Temperature Rating: -20 - + 70 °C
APPLICATIONS
Fireproof power cable and construction cable
Specification
|
Area (mm2) |
Construction Structure (main core) (mm) |
Earth core structure(mm) |
Insulation Thickness (mm) |
Sheath Thickness (mm) |
Fiber tape wrapped (cm) |
Aluminum foil wound(cm) |
Approx overall diameter (mm) |
|
2*1.0+E |
1*1.13 |
1*0.85 |
0.6 |
0.8 |
1.5 |
1.8 |
7.2 |
|
2*1.5+E |
1*1.38 |
1*1.13 |
0.7 |
0.8 |
1.5 |
1.8 |
9.2 |
|
2*2.5+E |
1*1.78 |
1*1.38 |
0.8 |
1 |
2 |
1.8 |
10.6 |
|
3*1.0 |
1*1.13 |
|
0.6 |
0.9 |
2 |
1.8 |
8.2 |
|
3*1.5 |
1*1.38 |
|
0.7 |
0.9 |
2.5 |
1.8 |
9.6 |
|
3*2.5 |
1*1.78 |
|
0.8 |
1 |
3 |
1.8 |
11.5 |
