Butt-Weld Long-Radius Pipe Elbow — XS, SCH80 and STD Enquiries
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM
-
model numberelbow 7109TechnicCasting
-
ConnectivityMale/FemaleshapeEqual/Reducing
-
head codeHexagon/RoundOverall Length4 in
-
Height3Surface TreatmentPainting
-
PressureLow PressureSystem of Measurementinch
-
Mounting hole diameter0.25 inPipe FeaturesFlexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features, underground rated
-
Pipe Class125ApplicationAgricultural Irrigation, Automotive Repair, Heating Systems, Power Industry, Construction Engineering, Shipbuilding, petrochemical industry
-
Thread TypesNPT
This long-radius butt-weld pipe elbow enquiry references BW, XS, SCH80 and STD. Carbon steel and stainless steel selections are available as enquiry options. Define one actual wall requirement and the intended pipe change of direction before approving a selected elbow.
Separate wall designations from bend geometry
XS, SCH80 and STD are not established interchangeable designations for every size. Choose the applicable wall specification and confirm the nominal size, measured end thickness and matching pipe. The labels 10 mm, 12 mm, 14 mm, 50 mm and 30 mm need actual nominal and physical dimensions rather than an assumed schedule assignment.

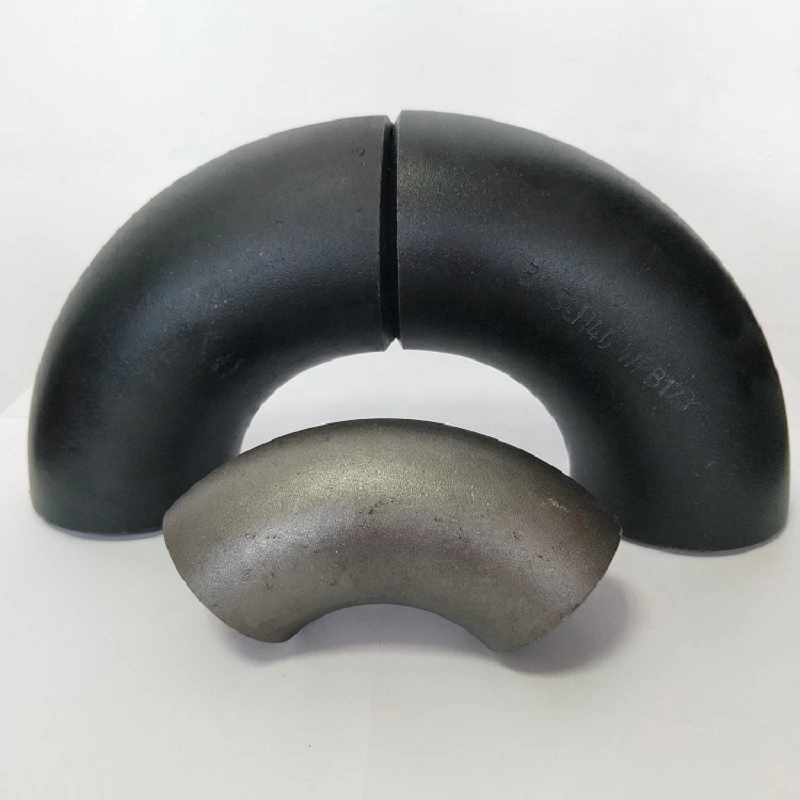

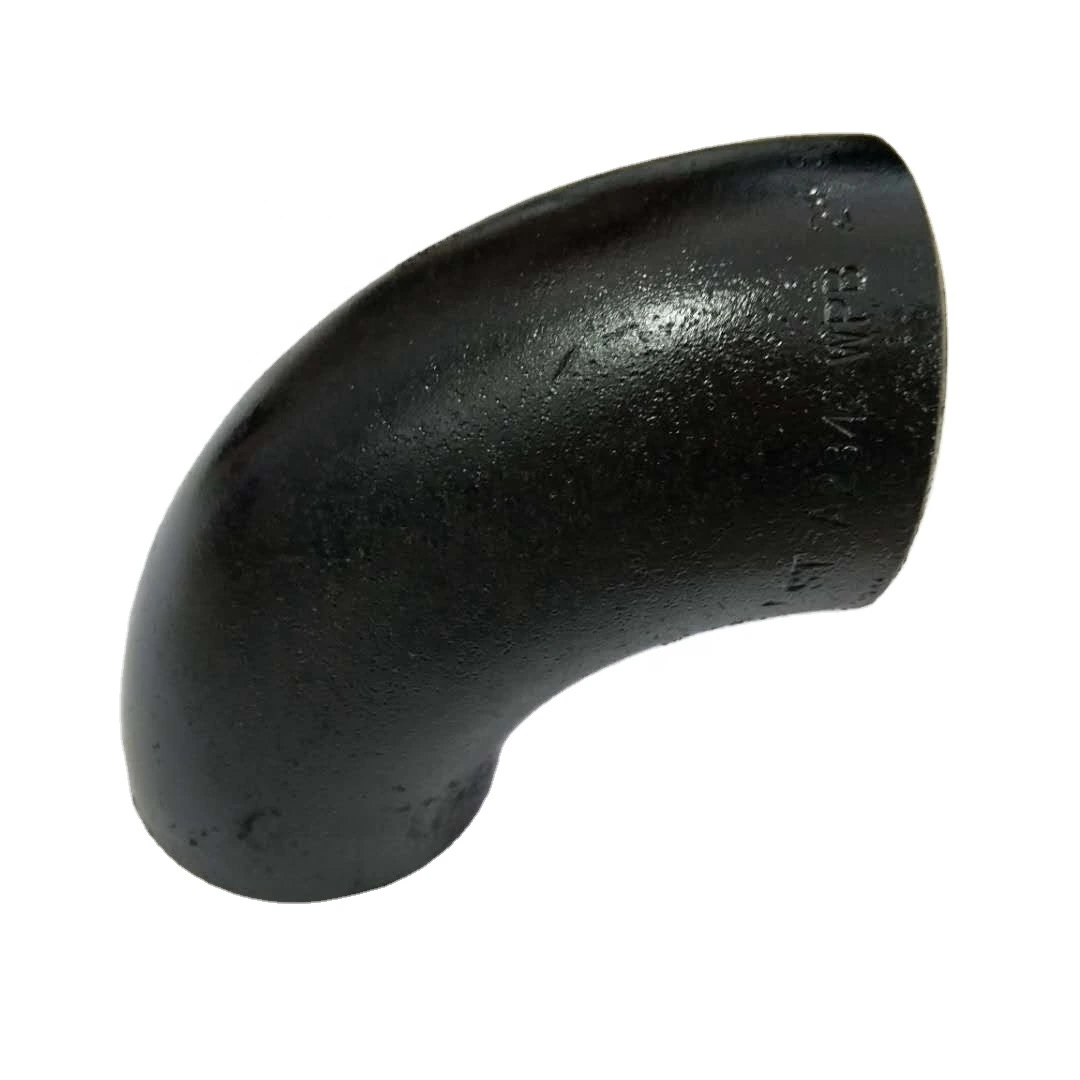

State the required bend angle, centreline radius, centre-to-end dimensions and installation envelope. Long Radius wording does not supply a measured radius or multiplier. Confirm whether the selected ends are equal or reducing; the combined Equal/Reducing entry does not choose an arrangement. Gallery examples show curved elbows without qualifying every variant's dimensions.
End preparation, material and manufacturing records
Confirm the actual connection before acceptance. A butt-weld requirement needs the selected bevel, wall match and joining details. A threaded requirement needs a complete thread designation and engagement; Male/Female and NPT labels do not qualify the butt-weld enquiry. Obtain the exact carbon steel or stainless steel grade and traceability.
Casting requires selected-item process evidence and does not justify adding a seamless route. Painting also needs a specified finish and inspection basis. Class 125 and Low Pressure wording do not define a fixed working pressure. Flexible, corrosion, chemical, UV and underground requirements need actual component and environment evidence.
Quotation details for the elbow installation
Provide the angle and radius drawing, both pipe interfaces, chosen wall designation, connection detail and material specification. Include operating medium, pressure, temperature and exposure, plus dimensional and end-inspection requirements. Evaluate the proposed elbow against the complete piping duty rather than treating listed industries as service approval.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
