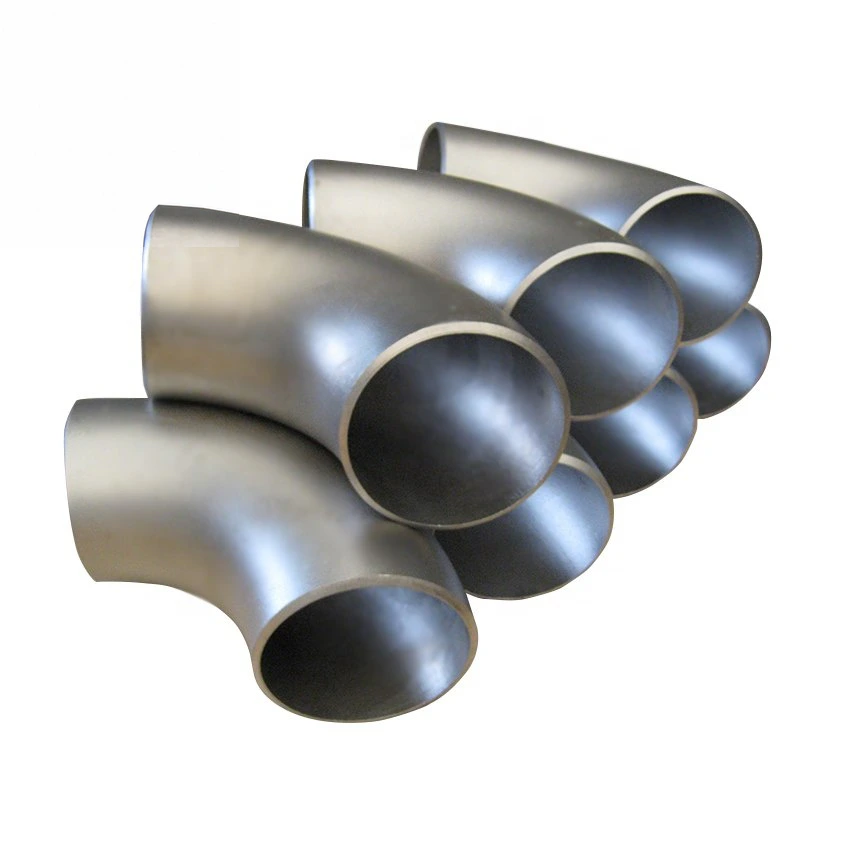

Carbon Steel Welding Pipe Elbow for WPB Sch40 Enquiries
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
model numberASTMmaterialCarbon Steel
-
Technicheating extrudingConnectivityWelding
-
shapeEqualhead codeRound
-
colorblackcertificationAPI ISO TUV SGS
-
Materialms cs
A carbon steel welding elbow is chosen around the route the pipe must follow. Where the project calls for a WPB material and schedule-40 requirement, keep those requirements tied to the turn geometry and pipe-end dimensions of the same elbow.
Set the elbow route with angle and radius
Show the required turn angle and centerline radius on a piping layout, including the positions of the adjoining runs. Confirm both end dimensions and their nominal-size designation before treating an equal-end descriptor as dimensional proof. The elbow must be discussed as one geometric arrangement; a family size range does not establish its envelope, radius or fit within the available space.
Connect the wall requirement to the steel grade
State the required material specification, grade and wall thickness together, and obtain confirmation for the selected elbow configuration. If seamless construction is required, identify it explicitly as part of the project specification. A process descriptor or a group of certification labels does not replace material and construction confirmation for the exact elbow, and a schedule designation alone does not establish operating capability.
Bring the weld-end details into the review
Provide the required end preparation alongside the pipe dimensions, with the applicable standard edition and design conditions. Identify the service medium, pressure and temperature so suitability can be reviewed for the proposed material, wall and geometry. Any inspection or documentation requirement should refer to that same configuration. A precise carbon steel elbow enquiry links the WPB and wall requirements to a dimensioned pipe-routing drawing, making the intended welded turn clear before an order is placed.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
