B16.9 A234 WPB SMLS SR 90-Degree Pipe Elbow Enquiry

• model number

  1/2"-72"
  Technic

  pushing
• Connectivity

  Welding
  shape

  Equal
• head code

  round
  Surface Treatment

  Smooth
• Mounting hole diameter

  0.25 in
  Pipe Class

  150
• product name

  carbon steel 20# material din 2605 elbow
  material

  carbon steel
• Standard

  ANSI
  Wallthickness

  sh10-sch160
• Degree

  90deg

This carbon steel elbow enquiry references B16.9, A234 WPB, SMLS and a short-radius ninety-degree bend. The body instead names 20# material and din 2605. Resolve the exact grade and applicable requirements before treating the title as the specification of an actual elbow; the sole variant identifies only Carbon Steel.

Reconcile WPB and 20# before material selection

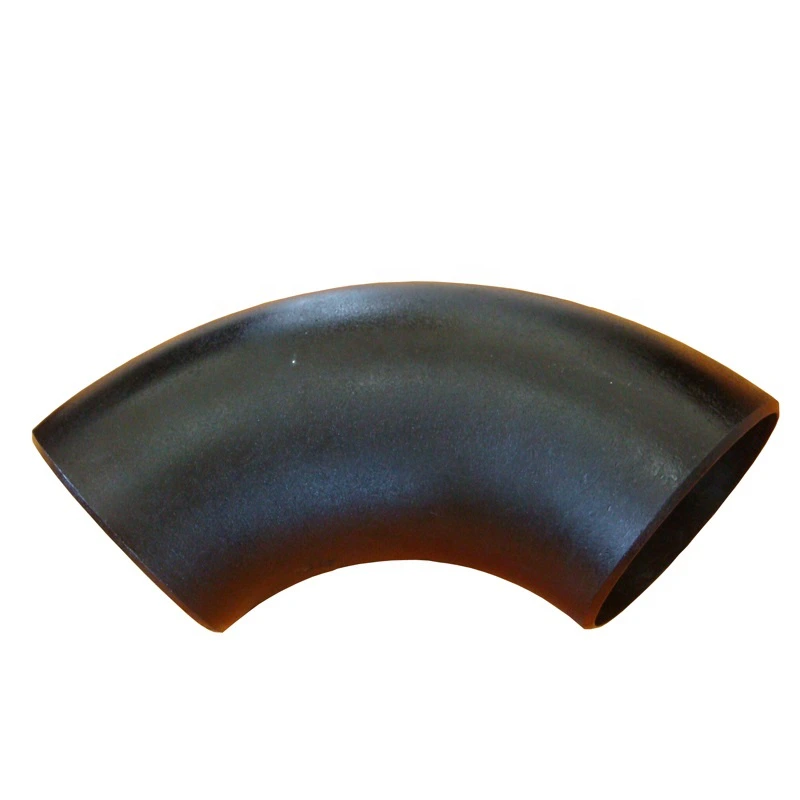

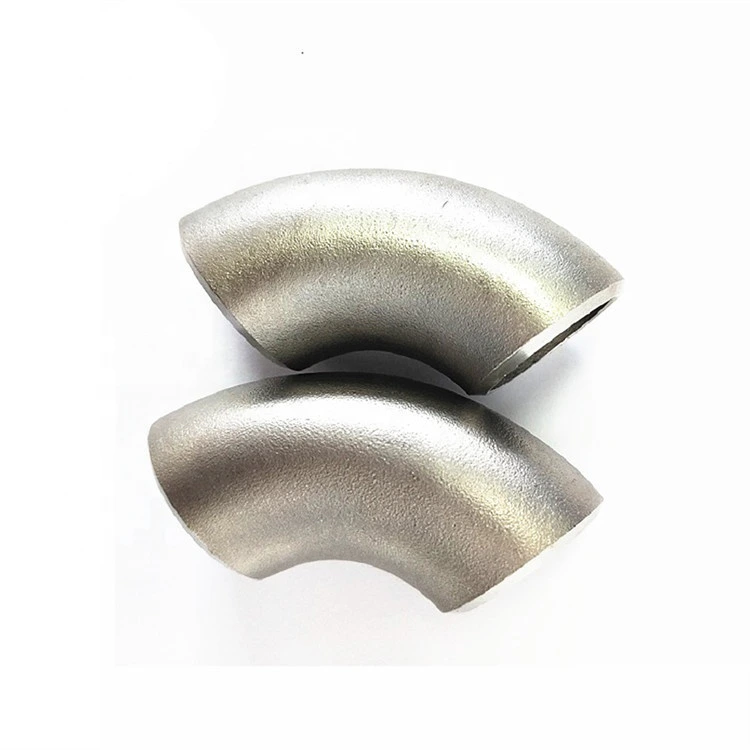

Obtain a complete material specification and traceable records for the selected elbow. Do not assume WPB and 20# are equivalent or that the product carries both qualifications. The dark and silver curved fittings in the gallery cannot resolve metallurgy or seamless manufacture. Confirm what SMLS and the pushing entry mean for the offered elbow through actual production and inspection evidence.

Choose one size and measure the short-radius bend

The model field reaches seventy-two inches while the actual size option reaches twenty-four inches. Clarify offered scope and select one nominal size rather than asserting either range as capacity. Record bend angle, centreline radius, centre-to-end dimensions, both end diameters and walls. Confirm the Equal relationship on the drawing. Ask what sh10-sch160 means as written and identify one wall designation without silently correcting the first term.

Agree the applicable standard and welded assembly evidence

Establish which numbered standard and edition govern the selected short-radius geometry, reconciling B16.9, din 2605 and the generic ANSI entry. Do not assume interchangeable conformity or substitute an unlisted standard. Define end preparation, fit-up, alignment and inspection with the adjoining pipes. Smooth does not establish finish performance. Clarify the basis behind Pipe Class 150, then assess fluid, pressure, temperature, corrosion and bend loading for the complete welded joint with the reconciled material and measured dimensions.
