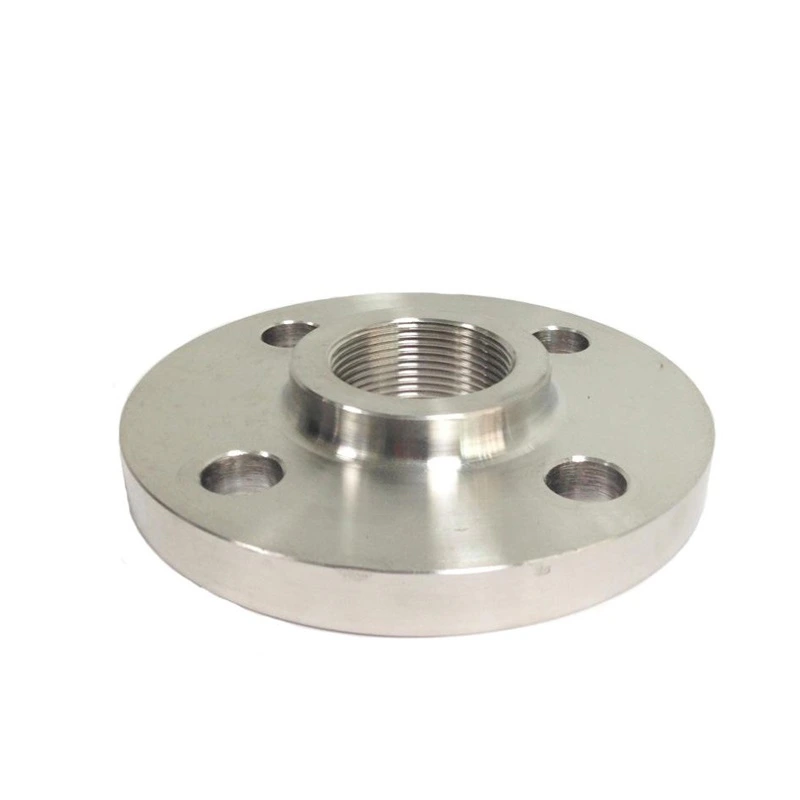

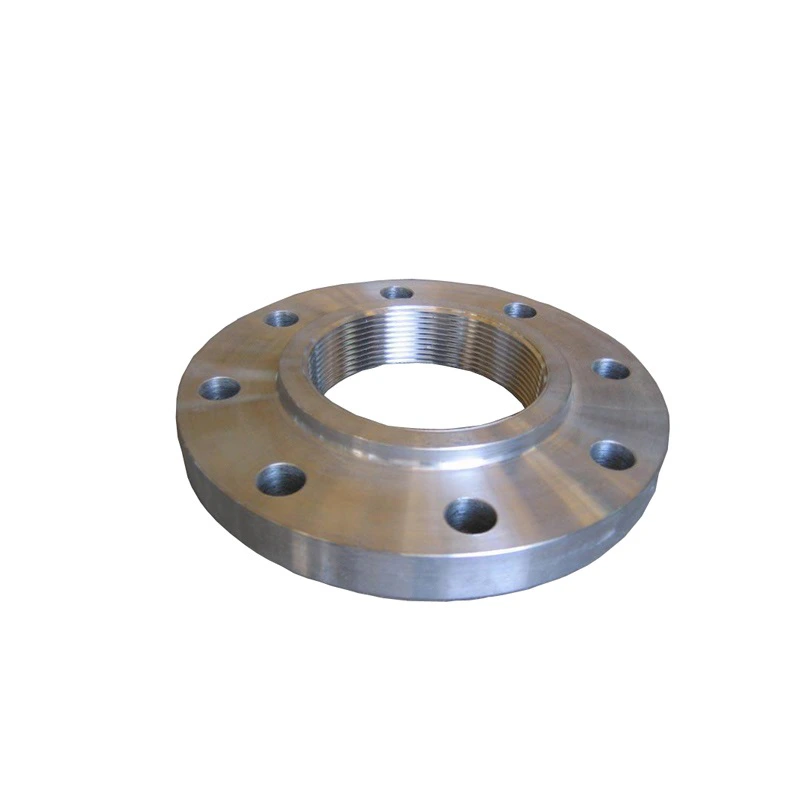

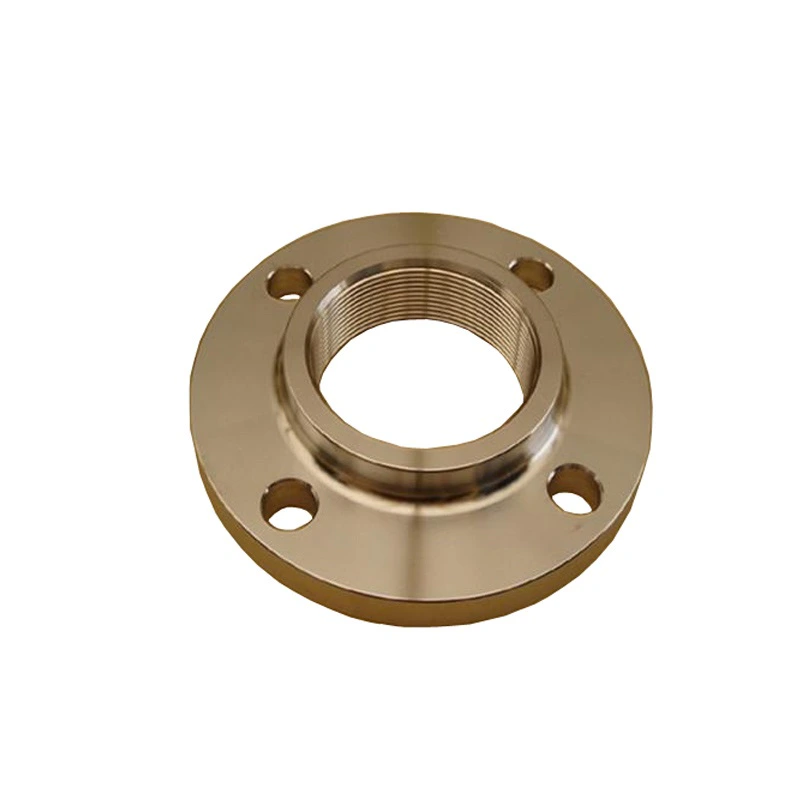

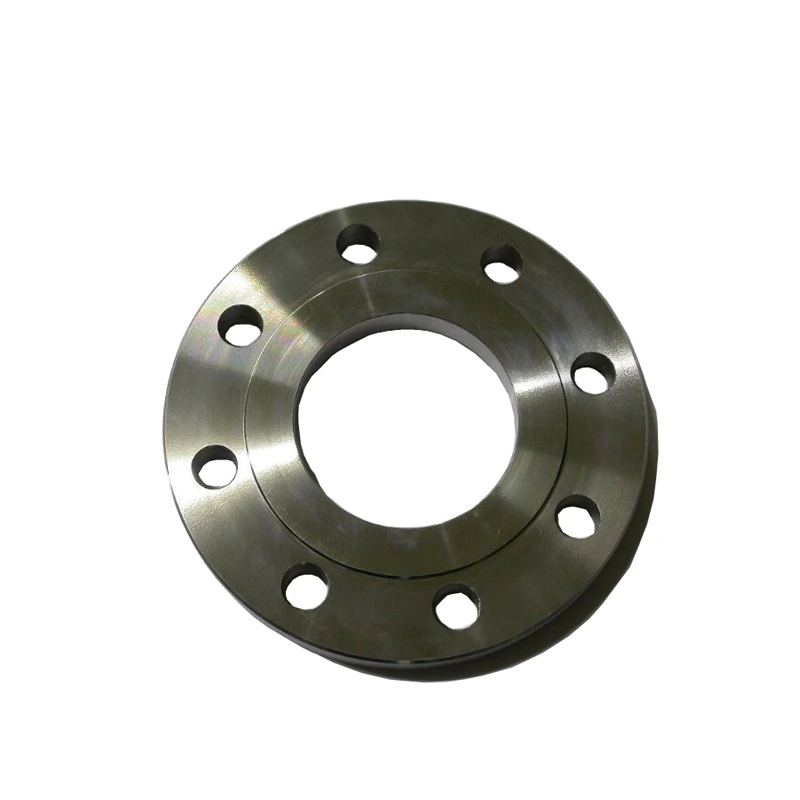

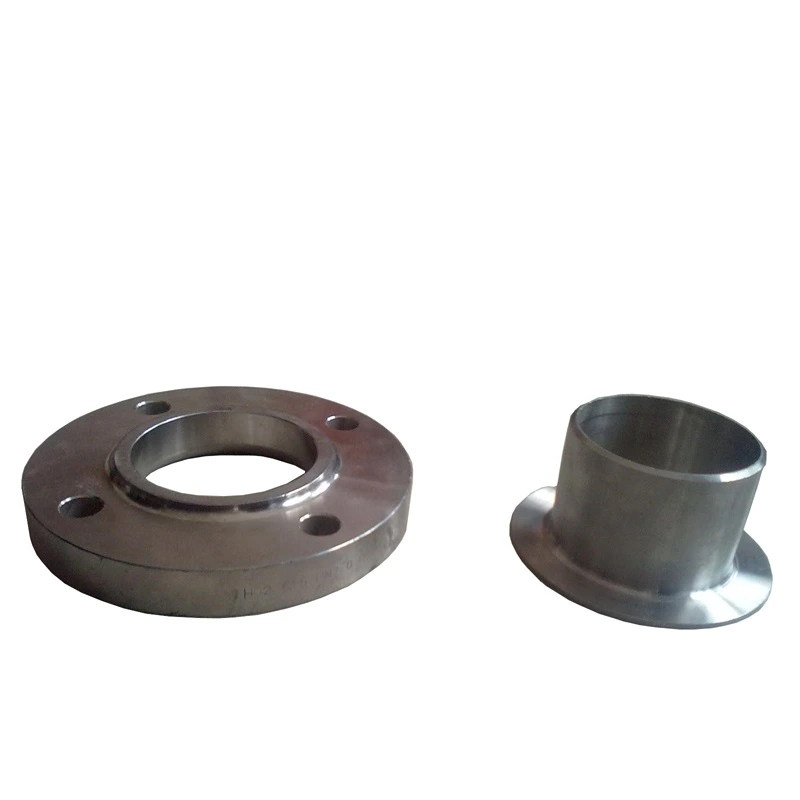

A105 ASME B16.5 FF/RF Carbon Steel Socket/Plate Flange Enquiry
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
model numberflange 0364TechnicCasting
-
ConnectivityFemale/MaleshapeReducing
-
head codeRoundOverall Length4 in
-
Height20cmSurface TreatmentPainting
-
PressureHigh PressureSystem of Measurementinch
-
Mounting hole diameter0.2 inPipe FeaturesFlexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features, underground rated
-
Pipe Class1000ApplicationAgricultural Irrigation, Automotive Repair, Heating Systems, Industry
-
Thread TypesNPTProduct nameA105 ASME B16.5 FF RF Socket Forged Carbon Steel Pipe Plate Flange
-
MaterialA105Size1/2' ~ 4'
-
ColorBlackStandardASTM
-
UsageOil Gas Water IndustrialPackingCarton
-
FeatureCorrosion ResistantCertificationISO 9001
This pipe flange page supports an A105 carbon steel enquiry with an ASME B16.5 requirement and a selected FF or RF facing. Define the flange form and pipe-side connection separately from the sealing face. A complete selection also needs the mating dimensions, exact material scope and pressure-temperature qualification for the requested configuration.
Choose the face for the intended flange joint
State whether FF or RF is required and identify the mating flange and gasket arrangement. Confirm the dimensions and surface requirements for the intended joint. A facing designation describes one part of the flange specification and does not establish the bore, bolt pattern or pipe connection. Use the selected-flange drawing to check that the complete joint matches the project requirement.
Define the socket or plate configuration precisely
Identify the required flange form and pipe interface rather than assuming every configuration uses the same connection. If a socket arrangement is required, describe it explicitly and confirm its dimensions against the pipe. Any threaded or other interface needs its own specification. Provide nominal pipe size, bore, flange thickness and bolt-hole pattern, with the governing dimensional standard and edition.
Confirm A105 construction and service qualification
Request the exact material specification and manufacturing confirmation for the Carbon Steel flange being considered. A Stainless Steel selection needs a separate grade specification. Include design pressure, temperature and the service medium when asking for the applicable pressure-temperature class and suitability evidence. Do not infer a high-pressure rating, corrosion performance or certification from the face style or photograph. Before choosing the flange, review the selected and mating drawings together with material, construction and service documentation for the same configuration.
Technical information for every product inquiry
Prepare the requirement before final product confirmation.
The product page is a starting point. Drawings, samples, interfaces, materials, quantities and acceptance requirements are reviewed before stock matching or custom production is confirmed.
Discuss this product in your project context.
Share the available drawing, sample, reference, target quantity and application information. Unknown items can remain open for review.
