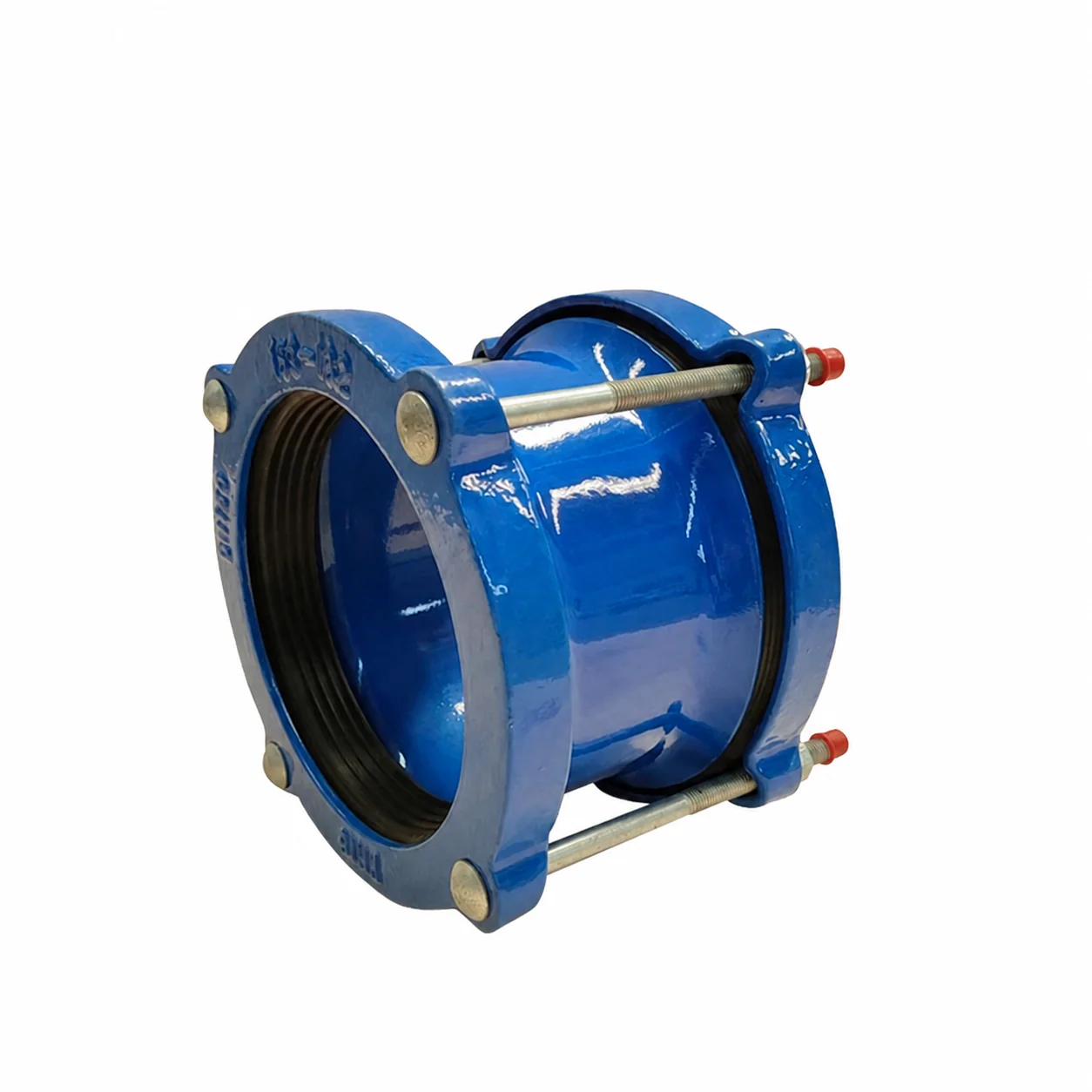

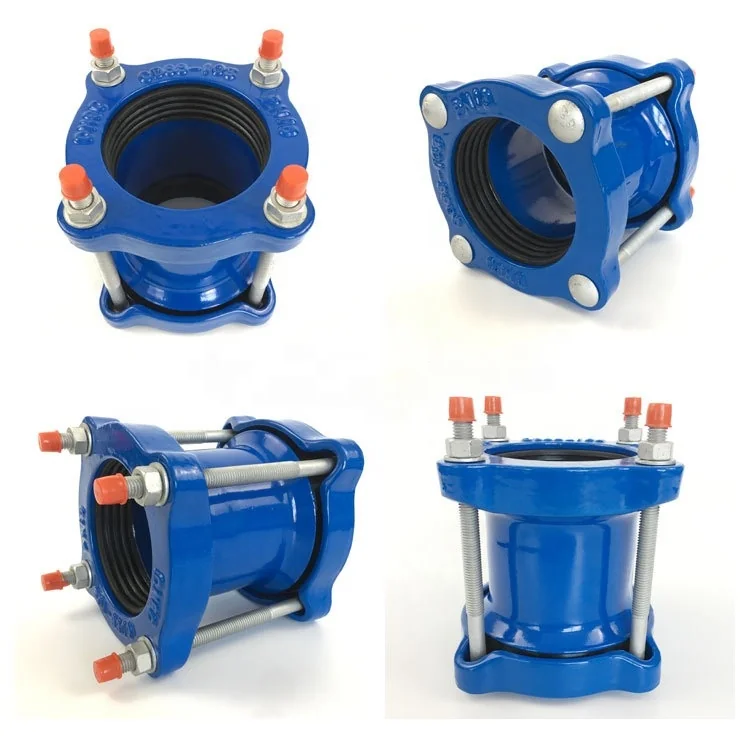

Wide Range Sleeve Type Double Flange Connection Gibault Joint Dresser Coupling
For industrial sourcing
Prepare a clearer RFQ
Include the details below so RELIA can understand the part and discuss the next step with you.
- Drawing, sample, or reference standard
- Material grade and preferred process
- Dimensions, tolerances, and surface finish
- Application, target quantity, and destination
Production timing, packing, and shipping terms are confirmed for each project after specifications and trade terms are agreed.
Product description
-
warranty1 yearscustomized supportOEM, ODM
-
model numberDCTechnicCasting
-
ConnectivityGlandshapeEqual
-
head codeRoundOverall LengthAccording to requirements
-
HeightAccording to requirementsSurface TreatmentAccording to requirements
-
Mounting hole diameterAccording to requirementsPipe ClassAccording to requirements
-
Applicationwater supply and drainage systemsProduct namedouble flange connection gibault joint dresser coupling
-
Nominal DiametersDN50 - DN600Working pressurePN10/16
-
Body MaterialStainless steel,carbon steel,ductile ironWorking temperature-10°C ~+ 70°C
-
DrawingOfferFlange standardDIN PN10,PN16,PN25/ANSI 150LB,300LB/JIS 10K,etc.
-
GasketsNBR, EPDM or as you requestSurface treatmentEpoxy coated
-
CertificateISO, TUV, WRAS, CO, MTC, etc
